ELPRT 100ERH

Product Description

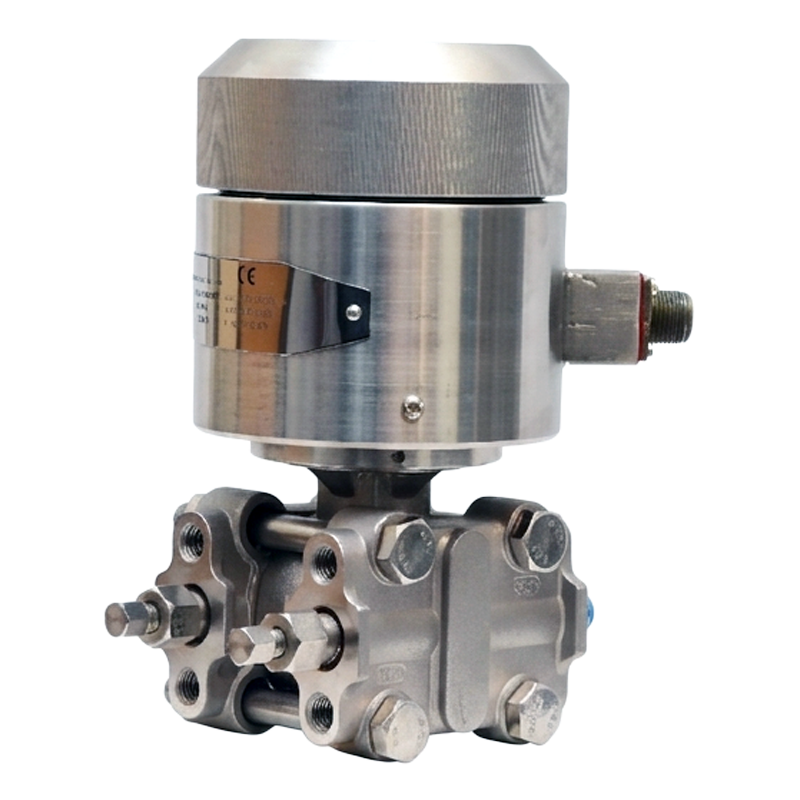

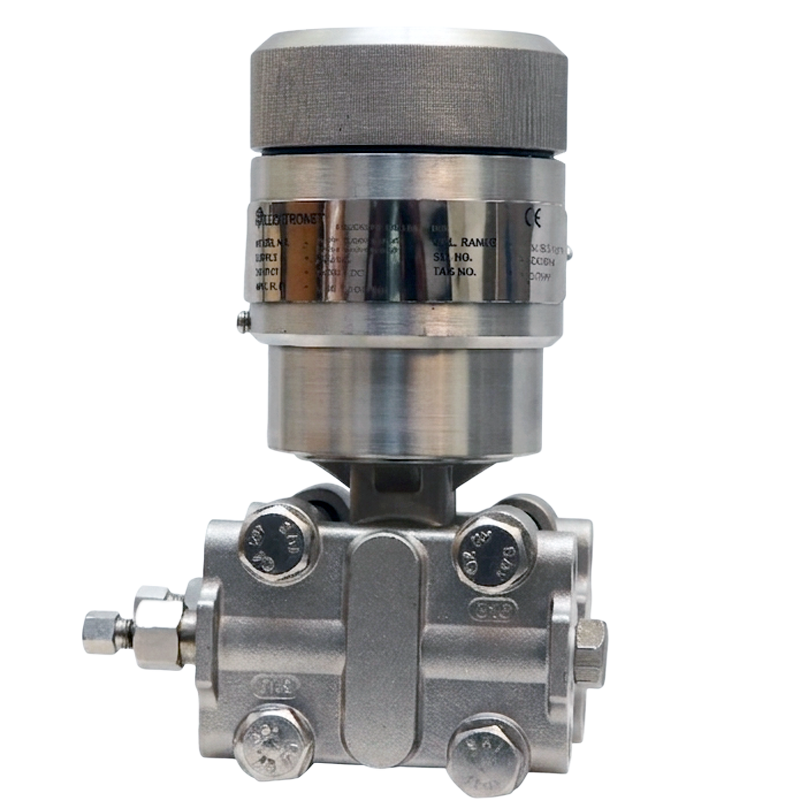

ELPRT-100ERH Analog Electronic Pressure Transmitter is an indigenously developed nuclear-grade pressure transmitter designed for reliable operation under normal, abnormal, and severe accident conditions in nuclear power plants. It is qualified to IEEE-323 and IEEE-344 standards and operates using a capacitance-type sensor for pressure, differential pressure, and absolute pressure measurement. The transmitter features a two-wire 4–20 mA DC output, high accuracy, and a service life of 20 years. It is gamma radiation qualified up to 4.1 MRad TID, LOCA qualified, and seismically tested from 1–100 Hz on all three axes. With adjustable zero, span, and damping, SS-316 construction, and IP-68 ingress protection, it ensures dependable performance in harsh nuclear environments. The ELPRT-100ERH is ideal for critical nuclear process monitoring applications requiring long-term stability and safety compliance.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Transmitter Type	Analogue, 2 Wire
Output	4-20 mA (Standard) / 20-4 mA DC
Range	As per Table
Sensor Type	Capacitance Type
Power Supply	28 V DC ± 4 V DC
Electrical Connection	3 Pin Allied Connector
Reverse Supply Voltage Protection	Provided
Rangeability	6:1
Damping	0 to 5 sec adjustable
Zero Elevation & Suppression	Zero Suppression adjustable upto 500 % of Calibrated Span
Zero Elevation & Suppression	Zero Elevation adjustable upto 600 % of Calibrated Span
Span & Zero Adjustment	External Zero & Span adjustment with potentiometer
Static Pressure	4, 10, 25, 32 MPa as per range
Body Rating	Maximum 40 MPa
Fill Fluid	Silicon Oil
Power Supply Connection	2 / 3 Pin MS Circular Connector
Test Terminal	Provided to monitor the current signal output without breaking the load circuit
Grounding	Provided through external bolt for body grounding.
Process connection	¼” NPT (Female) / Other with adapter
“O” Ring / Gasket	Buna- N, Ethylene -Propylene, Teflon, Silicon Rubber
Max. Process Temperature	5-120⁰C
Max. Operating Temperature	5-55⁰C (Electronics)
Humidity	0 to 100 % RH
Vent & Drain	Provided
Vent & Drain Plug Position	Opposite to Pressure inlet Process connection
Mounting	Suitable for Horizontal / Vertical, Wall or Stand mounting
Weight	Approx. 11.5 Kg (Max)
Service	Suitable for Liquid (Heavy Water, Light water), Gas & Vapor Applications
Housing	SS-316 for both Mild & Harsh Environments
Ingress Protection	IP-68 as per IEC-60529
Isolating Diaphragm	SS-316L / Hastelloy C / Other
Drain Vent Valves	SS-316L / Hastelloy C / Monel
Process flanges & adapters	SS-316L / Hastelloy C / Monel
Nut & Bolts	SS-316
Optional Accessories :	1. Part No. ELPRT-100ERH 3-Valve manifold, 316 SST
	2. Part No. ELPRT-100ERH-003 5-Valve manifold, 316 SST
	3. SS-316 Mounting Bracket

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (ELPRT 100ERH)
Water & Wastewater Treatment	Direct analog line pressure measurement across raw water intake headers, main distribution lines, booster pumping stations, and filter discharge manifolds.
Automation & Manufacturing	Continuous analog 4–20 mA feedback for hydraulic press cylinder pressures, centralized lubrication rings, machine tool coolant feed lines, and compressed air circuits.
Oil & Gas / Petrochemical	Line pressure monitoring along fuel transfer pipelines, lube oil circulating loops, natural gas delivery skids, and storage tank blanket gas headers.
Nuclear Power & Power Generation	Analog pressure feedback for boiler feed pump discharge headers, auxiliary cooling water loops, condenser vacuum lines, and turbine oil supply manifolds.
Textile Industry	Pressure monitoring across steam manifolds supplying drying cylinders, yarn conditioning autoclaves, bleaching kiers, and utility water supply rings.
Pulp & Paper Industry	Line pressure tracking on paper machine shower water lines, vacuum pump seal water systems, dilution water lines, and stock prep utility headers.
OEM Equipment Manufacturers	Standard analog pressure transmitter integration for packaged industrial air compressors, modular booster pump sets, reverse osmosis (RO) systems, and hydraulic power packs.
Sugar & Distillery Industry	Juice delivery pump pressure tracking, boiler feedwater manifold pressure monitoring, cooling spray pond line supervision, and fermentation utility pressure lines.
