ELPRT 100SDP

Product Description

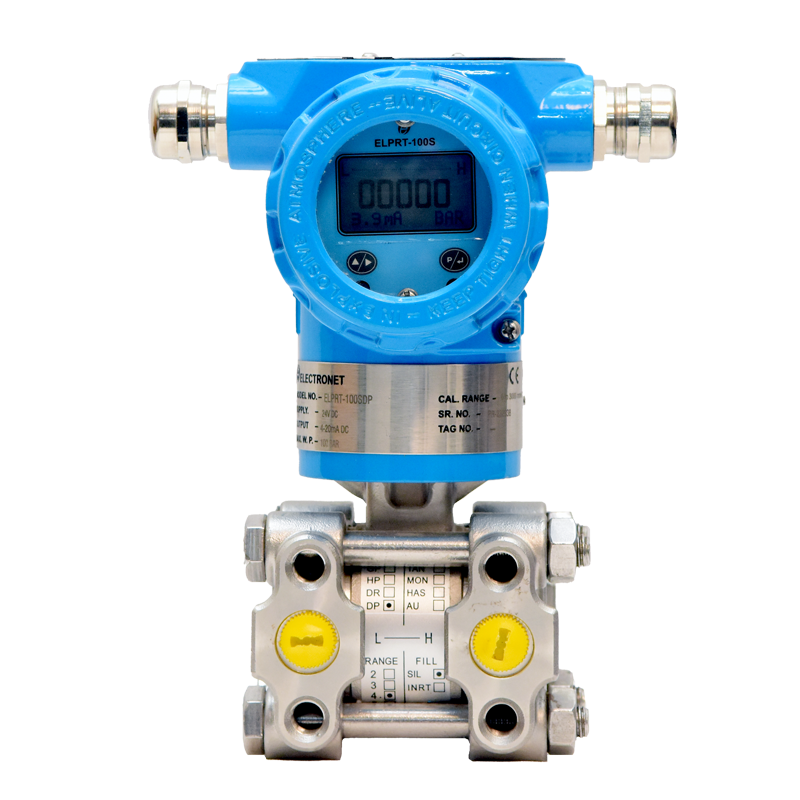

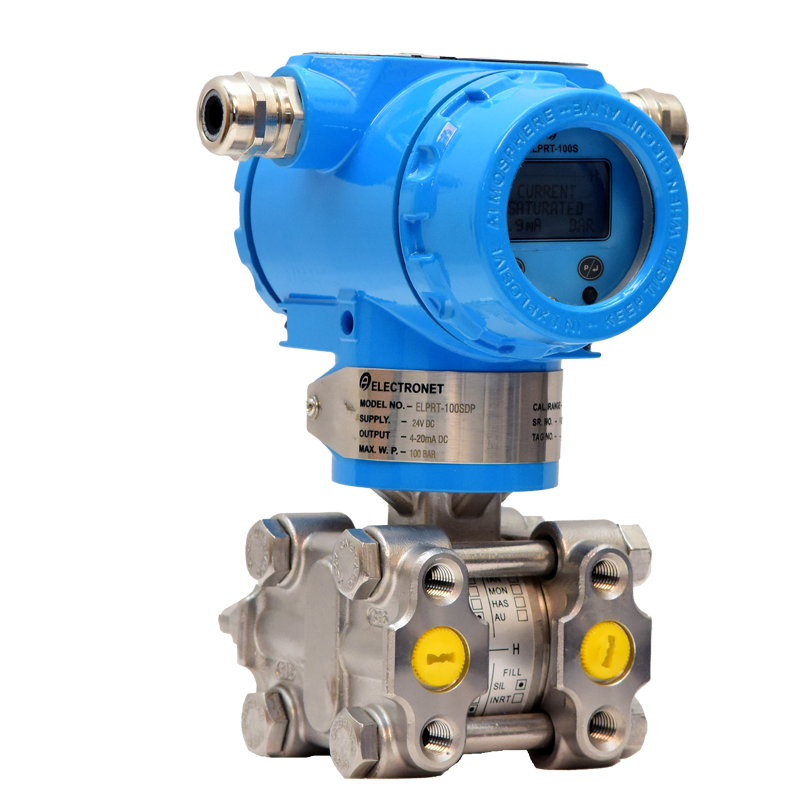

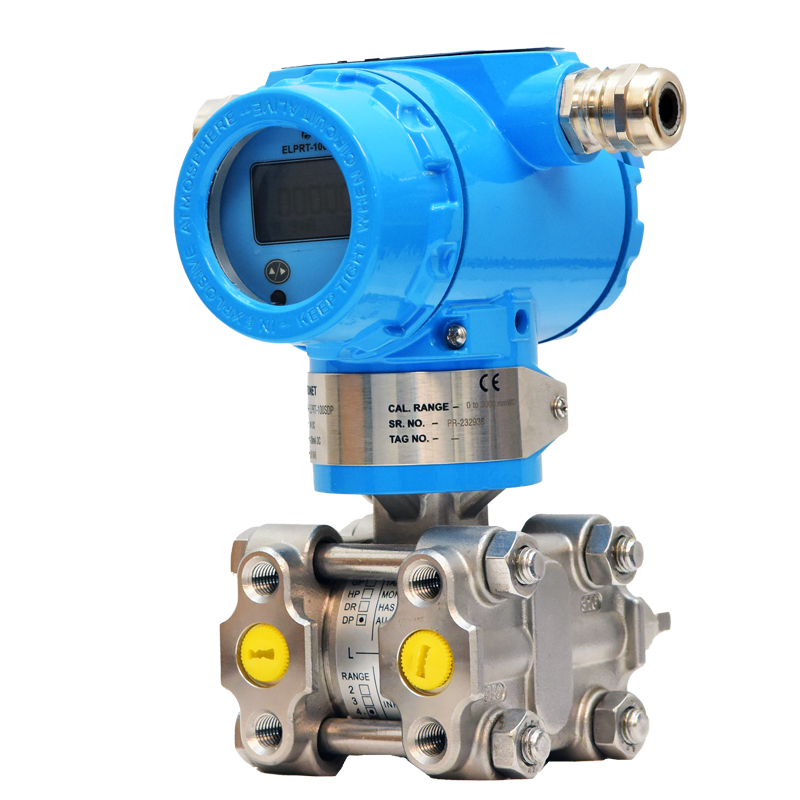

ELPRT-100SDP Smart Differential Pressure Transmitter is a microcontroller-based instrument designed for precise differential pressure measurement of liquids, gases, and vapors in industrial applications. It uses a capacitive sensor with diaphragm to deliver high accuracy and excellent long-term stability across a wide measuring range. The transmitter provides a 4–20 mA output with superimposed HART communication, enabling remote configuration and diagnostics. Featuring a two-wire system, rangeability up to 100:1, and a clear LCD display with non-intrusive magnetic controls, it ensures flexible operation. The ATEX-certified, rigid construction with IP66 protection makes it suitable for harsh environments. With options for remote seals and multiple process connections, the ELPRT-100SDP is ideal for pressure, level, flow, and differential pressure applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Output Signal

2-Wire-System	4-20mA with super imposed signal for HART protocol, digital communication
Supply Voltage	12.5 - 45 VDC
Signal Range	3.9mA - 20.8mA
Measuring Range	Refer Pressure Range Table

Electrical Protection

Insulation Resistance	>100 MΩ at 100VDC
Wiring Protection	Protection against Over Voltage & Short Circuit
Reverse Polarity Protection	Available

Temperature Limits

Ambient Conditions	-20 to 70°C
Storage	-40 to 85°C
Process Temperature	-20 to 125°C
Ingress Protection	IP 66
Accuracy	1) +/-0.075% of URL for SPAN 5: 1
Accuracy	2) +/-(0.05 + 0.03 of (URL / SPAN))% of SPAN for SPAN < 5: 1

Performance

Static Pressure Effect	Zero Error: +/-0.25% of URL per 50 Bar (Zero static pressure effect can be removed by zero trimming at line pressure.)
	Span Error: +/-0.35% of URL per 50 Bar
Power Supply Effect	< ±0.005% of calibrated SPAN per volt
Vibration Effect	< 0.2% of SPAN/g @200Hz
Installation Position Effect	Zero shifts up to +/- 0.15% of URL, which can be calibrated out. No SPAN effect.
Thermal Effect	Range code 2 to 9	Zero error = +/-0.3% URL per 280C
		Total error = +/-0.3% URL +0.25% of calibrated span per 280C
	Double the effect for Range code 3, 2
Humidity	5-98%
Static Pressure	30 Bar to 130 Bar,
