Product Description

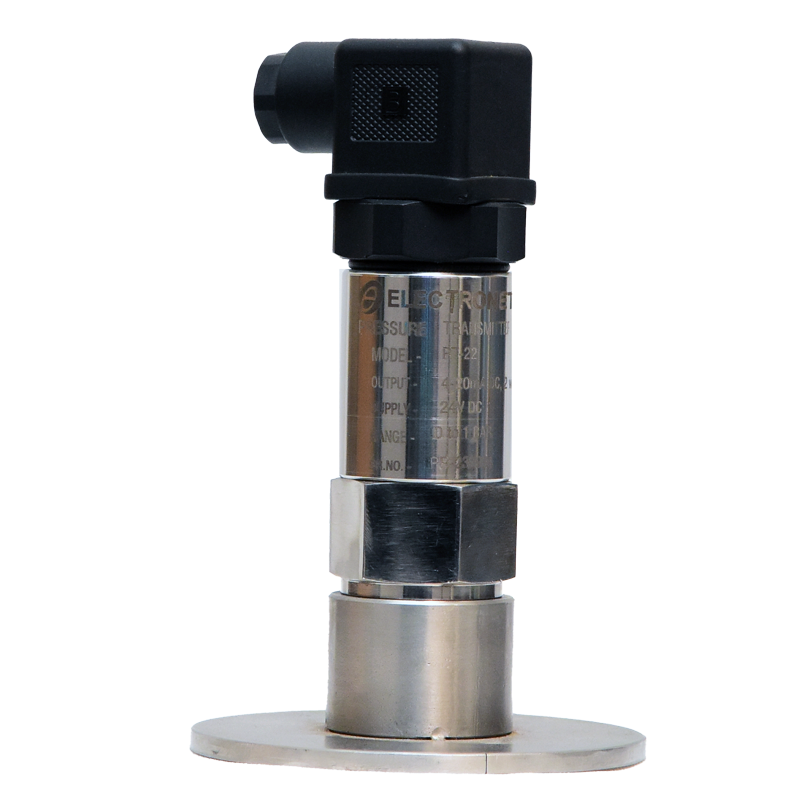

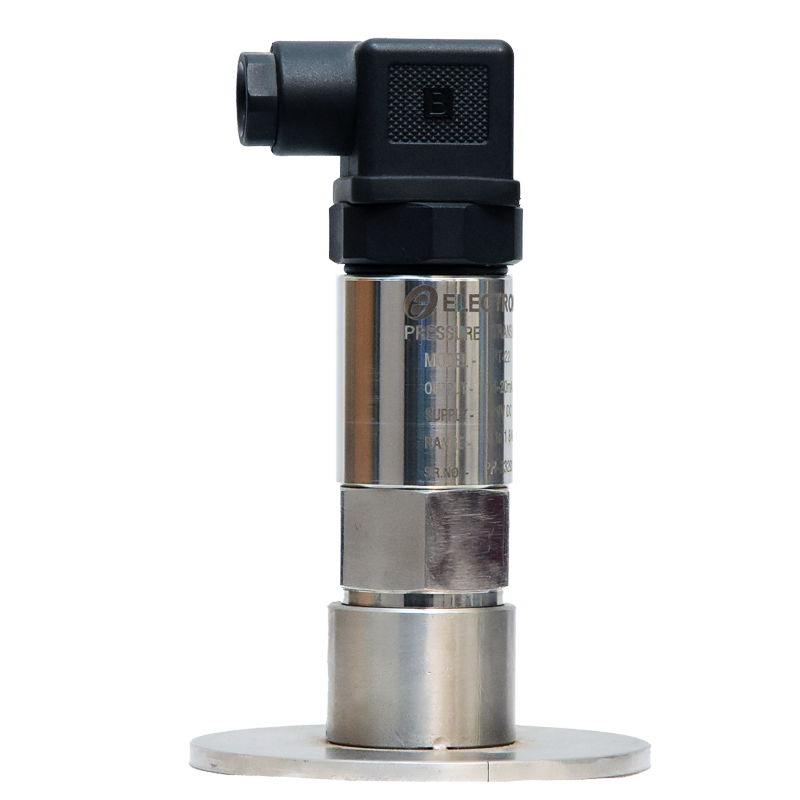

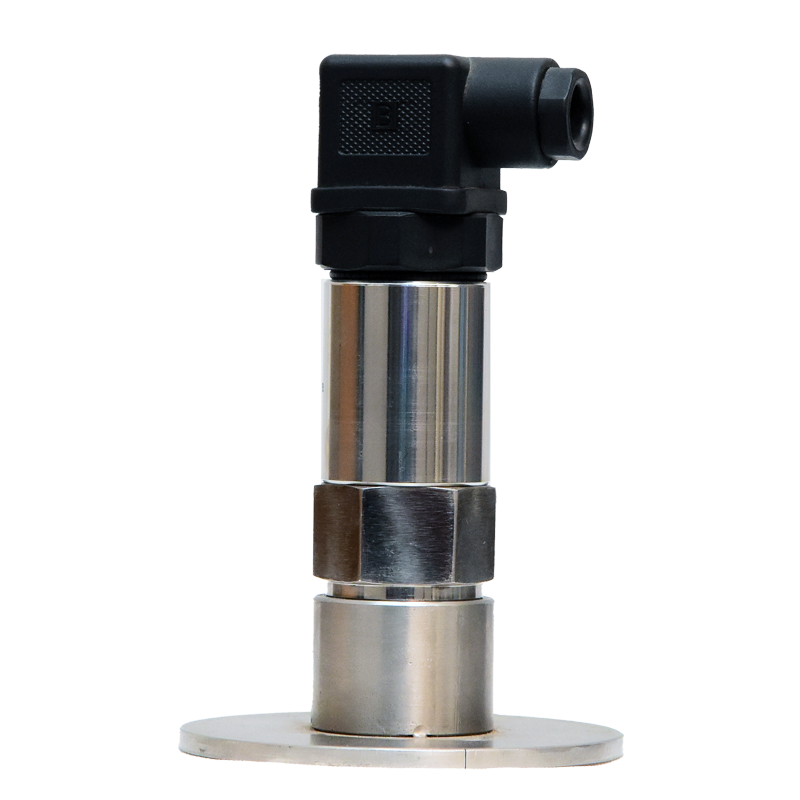

PT-22 Pressure Transmitter is a reliable and cost-effective solution for accurate pressure measurement of clear liquids and gases in industrial applications. It uses a piezo-resistive sensor to deliver a stable 4–20 mA DC or 0–10 V DC output proportional to the applied pressure. The transmitter supports a wide measuring range from 0.1 bar to 1000 bar with an accuracy of ±0.25% of full scale. Designed for durability, all wetted parts are SS-316 and hermetically welded for long service life. With fast response time (<10 ms), span and zero adjustment, and IP-65 weatherproof enclosure, it ensures dependable operation. The direct line mounting design makes the PT-22 suitable for most general industrial pressure measurement requirements.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Sensor Type	Piezo Resistive
Pressure Range	AP URL: 100 kPa to 600 kPa
Pressure Range	GP URL: 70 kPa to 100000 kPa
Power Supply	24V DC Two Wire Loop Powered / 12 to 36V DC
Display	LED Display
Output	4 to 20 mA DC, 0 to 10 V
Output Load	Max 600 Ω
Accuracy	± 0.25% F. S.
Non Linearity	0.2% of Span
Non Repeatability	< 0.1% of Span
Response Time	<10 mSec for 10 to 90% output change
Over Pressure Safety	2 times max. Pressure range
Burst Pressure	3 times max. Pressure range
Process Temperature	-20 to 120 °C max
Ambient Conditions	Temperature : -20 to 70°C / Humidity : 5 to 95% non condensing
Insulation Resistance	>100 MΩ at 100VDC
Span / Zero Adjustments	Provided
Process Connection	Refer ordering information
Electrical Connection	M12 Connector, DIN 43650 Connector
Mounting	Direct Line mount (Vertical)
Material of Construction	All wetted parts SS316 (Options available on request)
Enclosure	SS316 with IP 65 Ingress Protection
Area Classification	Field Mount Weather Proof IP65
Weight	0.4 kg (Approximate)

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (PT 22)
Water & Wastewater Treatment	Continuous analog pressure transmission on raw water intake headers, main distribution lines, booster pumping stations, and filter discharge manifolds.
Automation & Manufacturing	Line pressure telemetry for hydraulic power packs, automated clamping cylinders, centralized machine lubrication lines, and factory compressed air ring mains.
Chemical & Pharmaceutical	Process line pressure measurement in non-corrosive chemical transfer systems, inert gas blanketing loops, utility steam lines, and pilot plant filtration skids.
Oil & Gas / Petrochemical	Hydrocarbon transfer pump discharge headers, fuel loading arm pressure monitoring, compressor lube oil manifolds, and natural gas metering skids.
Nuclear & Thermal Power Generation	Analog pressure feedback for boiler feed pump discharge headers, turbine lube oil systems, auxiliary cooling water loops, and condenser vacuum lines.
Food, Beverage & Dairy	Pressure supervision on utility steam supply lines, hot water rinsing circuits, plant compressed air systems, and clean water utility manifolds.
Steel & Cement Industry	Rolling mill centralized hydraulic lines, blast furnace gas manifolds, heavy bearing grease delivery circuits, and baghouse pulse-jet air headers.
Fertilizer Industry	Ammonia booster pump discharge tracking, granulation steam distribution lines, scrubber wash water lines, and plant utility headers.
Textile Industry	Process pressure monitoring across steam distribution headers to drying cylinders, yarn conditioning autoclaves, bleaching kiers, and utility water supply rings.
