Product Description

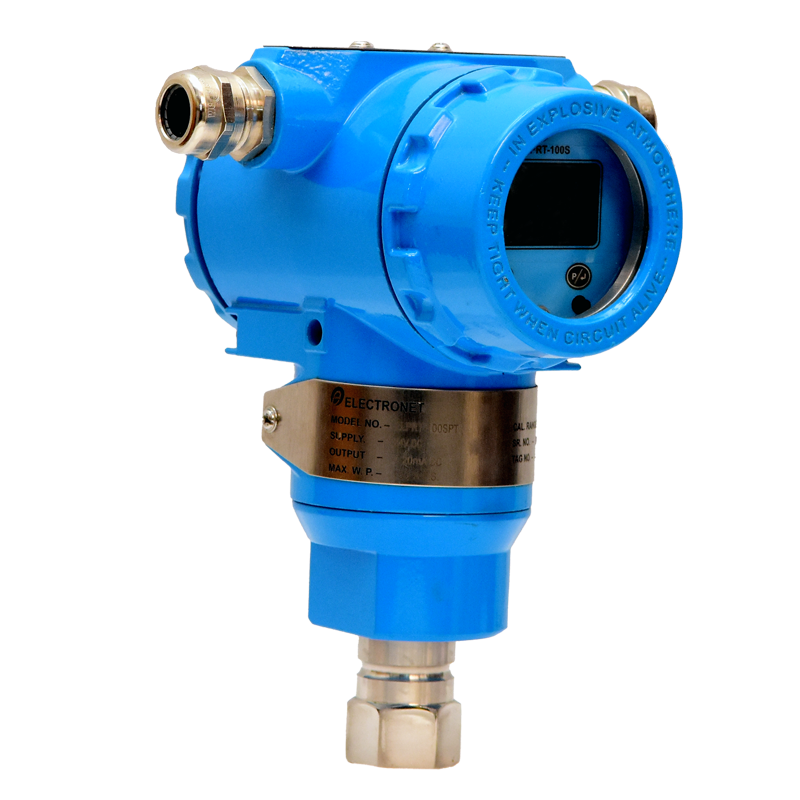

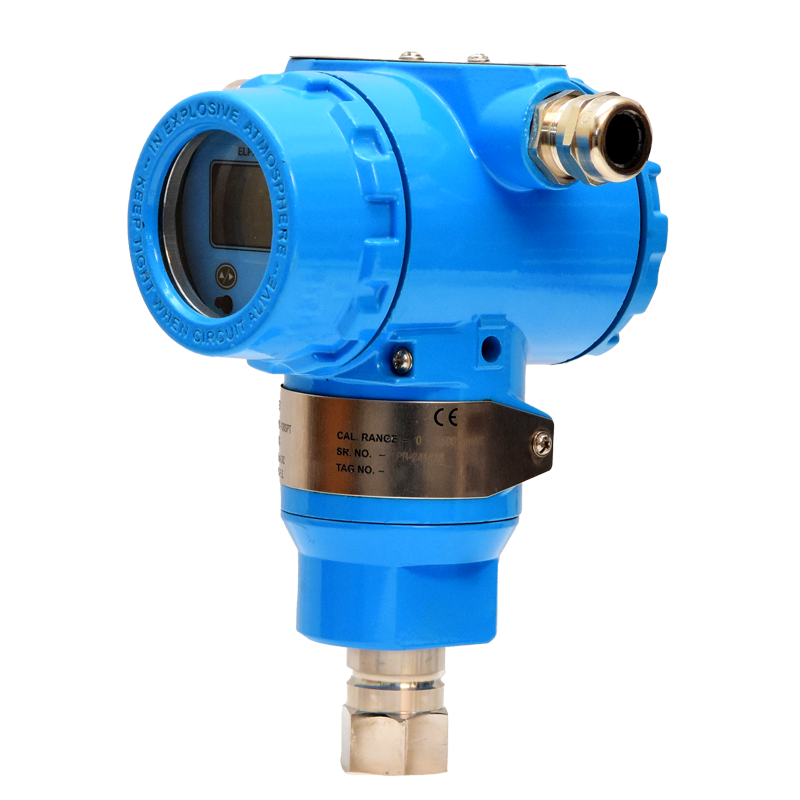

ELPRT-100SPT Smart Pressure Transmitter is a high-performance 2-wire pressure measurement solution for accurate monitoring of liquids, gases, vapors, and steam. It uses piezo-resistive and capacitive sensor technology to deliver excellent long-term stability and fast response. The transmitter provides a 4–20 mA output with superimposed HART communication, enabling advanced diagnostics and configuration. With a wide turndown ratio up to 100:1, built-in LCD display, and robust IP66 enclosure, it is suitable for demanding industrial environments. ATEX certification, high overpressure protection, and multiple process connection options, including remote seals, ensure safe and flexible installation. The ELPRT-100SPT is ideal for critical pressure and level measurement applications across process industries.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance

Accuracy	1) +/-0.075% of URL for SPAN 5: 1 2) +/-(0.025 + 0.015 of (URL / SPAN))% of SPAN for SPAN < 5: 1 *In case of remote seal process connection the accuracy will be less than +/- 1% of URL
Power Supply Effect	< ±0.005% of calibrated SPAN per volt
Vibration Effect	< 0.2% of SPAN/g @ 200Hz
Installation Position Effect	Zero shifts up to +/- 0.15% of URL, which can be calibrated out. No SPAN effect.
Thermal Effect	Range code 4 to 8	Zero error = +/-0.3% URL per 280C
		Total error = +/-0.3% URL +0.25% of calibrated span per 280C
	Double the effect for Range code 3, 2
Turndown Ratio	100:1
Turn On Time	Less than 5 Sec.
Response Time	200 ms (without considering electronic damping)
Damping	0.1 to 30.0 Sec.
Humidity	5-98% Relative Humidity
Stability	Less than +/-0.2% of URL per Year
Over Pressure	2 times max. Pressure range
Burst Pressure	3 times max. Pressure range

Physical Specifications

Process Connection	¼” NPT (M/F), ½” NPT (M/F), ¼” BSP (M/F), ½” BSP (M/F)
Diaphragm	SS316L / Hastelloy C / With Remote Seal
Seals	Viton / Neoprene / Red silica / EPDM
Wetted Parts	SS304 / SS316 / SS316L / Hastelloy C
MOC Electronic Enclosure	Die Cast Aluminium PU Painted / SS 316
Sight Glass	Laminated Safety Glass
Filling Fluid

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (ELPRT 100SPT)
Water & Wastewater Treatment	Smart line pressure monitoring on treated water delivery manifolds, deep-well pump discharge piping, booster pumping stations, and surge tank pressure control loops.
Automation & Manufacturing	Continuous pressure telemetry for heavy hydraulic stamping presses, centralized pneumatic ring mains, CNC high-pressure coolant feeds, and automated assembly test cells.
Oil & Gas / Petrochemical	Digital pressure monitoring (HART/4–20 mA) on fuel oil transfer pipelines, wellhead collection headers, vapor recovery lines, and gas compressor discharge manifolds.
Nuclear Power & Power Generation	High-accuracy pressure telemetry on boiler main steam headers, high-pressure feedwater lines, turbine lubricating oil systems, and deaerator pressure control loops.
Textile Industry	Pressure monitoring and remote calibration on fabric steam conditioning autoclaves, yarn dyeing kier pressurization lines, and stenter heat delivery manifolds.
Pulp & Paper Industry	Steam header pressure regulation across drying cylinder groups, pulp digester pressure tracking, dilution water supply headers, and chemical feed lines.
OEM Equipment Manufacturers	Standard 2-wire smart transmitter integration for packaged steam boilers, high-pressure industrial compressors, modular booster pump sets, and hydraulic power units.
Sugar & Distillery Industry	Live pressure tracking on co-generation steam turbines, exhaust steam mains feeding evaporation pans, boiler feed lines, and distillery distillation columns.
