Product Description

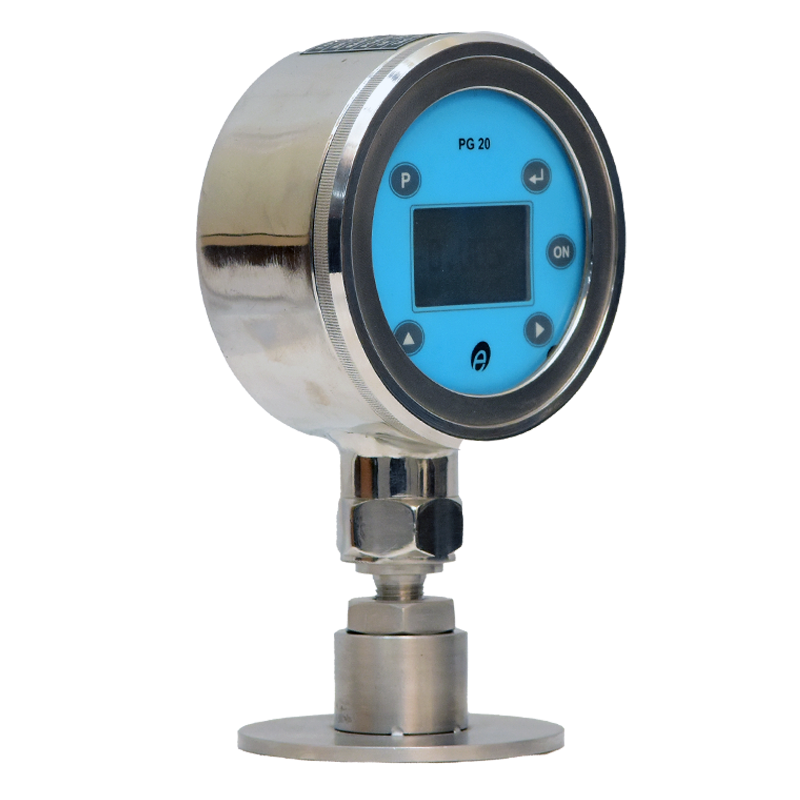

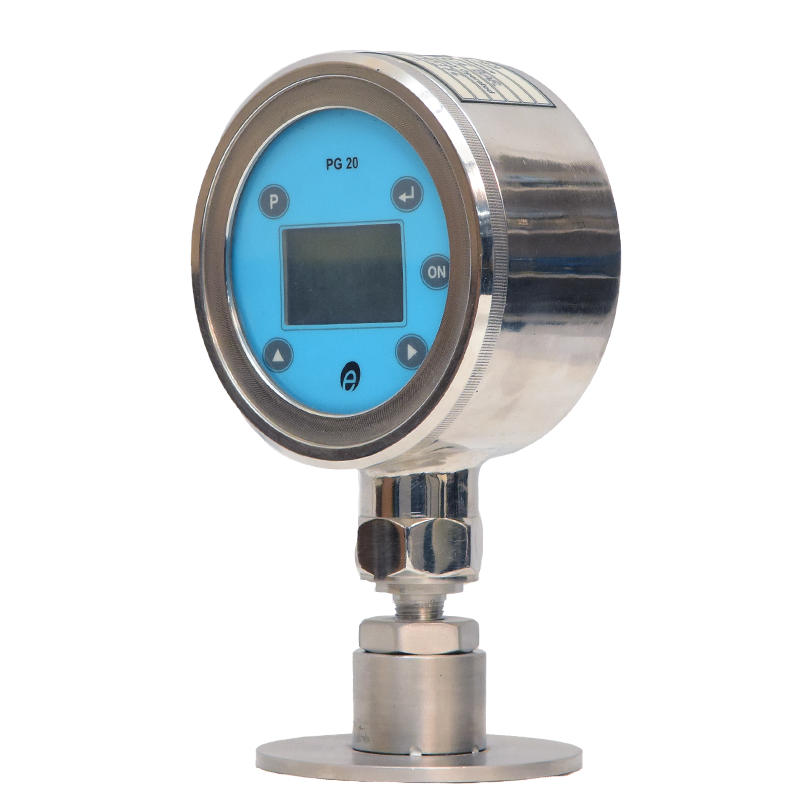

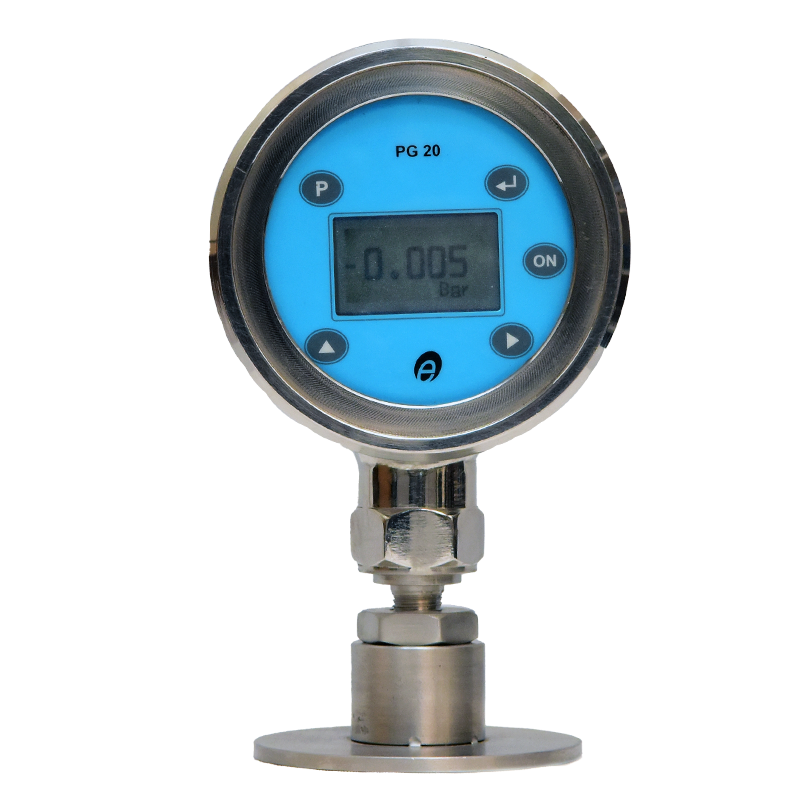

PG-20 Digital Pressure Gauge is a reliable and cost-effective solution for accurate pressure measurement and monitoring in industrial and laboratory applications. It uses a piezo-resistive pressure sensor and supports a wide measuring range from 0.1 bar up to 1000 bar. Pressure indication is provided through a clear LCD display with auto display shut-off, helping to extend battery life. The gauge is battery-operated with optional solar power, ensuring long-lasting, maintenance-free operation. Built-in features such as unit conversion, zero tare, temperature compensation, and display lock enhance usability and accuracy. With IP-65 weatherproof enclosure, optional RS-485 MODBUS, GSM, or GPRS communication, and robust SS / die-cast housing, the PG-20 is ideal for demanding industrial environments.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Sensor Type	Piezo Resistive
Pressure Range	AP URL: From 100 kPa to 600 kPa & GP URL: From 70 Kpa to 100000 kPa
Power Supply	Battery Operated, Solar Powered
Display	LCD Display
Display Lock	Display can be made ON by pressing ‘ON’ Key on front fascia
Display Lock	Display ON duration programmable
Battery Back-up Time	1 to 5 years based on sampling & messaging frequency
Communication Output	Output 1: RS485 (MODBUS RTU) Output 2 : GSM, GPRS
Accuracy	± 0.25% F. S. (Including Linearity, Repeatability & Hysteresis) *In case of remote seal process connection, the accuracy will be less than +/-1% F. S.
Response Time	< 200 mSec
Burst Pressure	3 times max. Pressure range
Over-Pressure Safety	2 times of Max. pressure range
Temperature Compensation	Inbuilt
Operating Temperature	Temperature: -20 to 70 °C / Humidity: 5 to 95% non condensing
Temperature Coefficient	± 0.01% per °C
Process Temperature	-20 to 120°C max
Process Connection	A. 1) Threaded: 1/4” NPT, 2) 1/2” NPT, 3) 1/4” BSP, 4) 1/2” BSP
Process Connection	B. 2) Flush Diaphragm (Tri Clover), 2) Flush Diaphragm (½” BSP)
Process Connection Point	1) Bottom, 2) Rear
Mounting	Direct Line mount
MOC Electronics Enclosure	SS / Die-cast aluminium
Diaphragm MOC	Hastelloy C / SS316L
Sensor MOC	SS316 / Hastelloy C
Area Classification	Field Mount Weather Proof IP65
Fill Fluid	Silicon Oil
Weight	1 kg (Approximate)
CE Marking	Provided

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (PG-20)
Water & Wastewater Treatment	Direct dial pressure indication on pump suction and discharge headers, clear water transmission mains, filter media vessels, and distribution manifolds.
Automation & Manufacturing	Local pressure verification for hydraulic power packs, pneumatic plant headers, machine tool lubrication circuits, and stamping press lines.
Oil & Gas / Petrochemical	Field dial monitoring on pipeline manifolds, pump discharge points, fuel storage utility headers, gas regulator sets, and compressor lubrication loops.
Nuclear Power & Power Generation	Local dial readout on boiler feedwater booster lines, auxiliary cooling water supply, turbine oil lines, and deaerator pressure tap-offs.
Textile Industry	Direct line pressure monitoring on steam supply headers, fabric finishing autoclaves, dyeing vessel heating jackets, and water utility networks.
Pulp & Paper Industry	Pressure indication on paper machine shower water lines, vacuum pump seal lines, steam distribution branches to dryer cans, and stock preparation headers.
OEM Equipment Manufacturers	Standard visual dial gauge installation on packaged industrial boilers, air compressors, booster pump assemblies, and RO filtration systems.
Sugar & Distillery Industry	Monitoring steam line delivery pressures, mill juice transfer piping, boiler water feed lines, and pump station discharge headers.
