Product Description

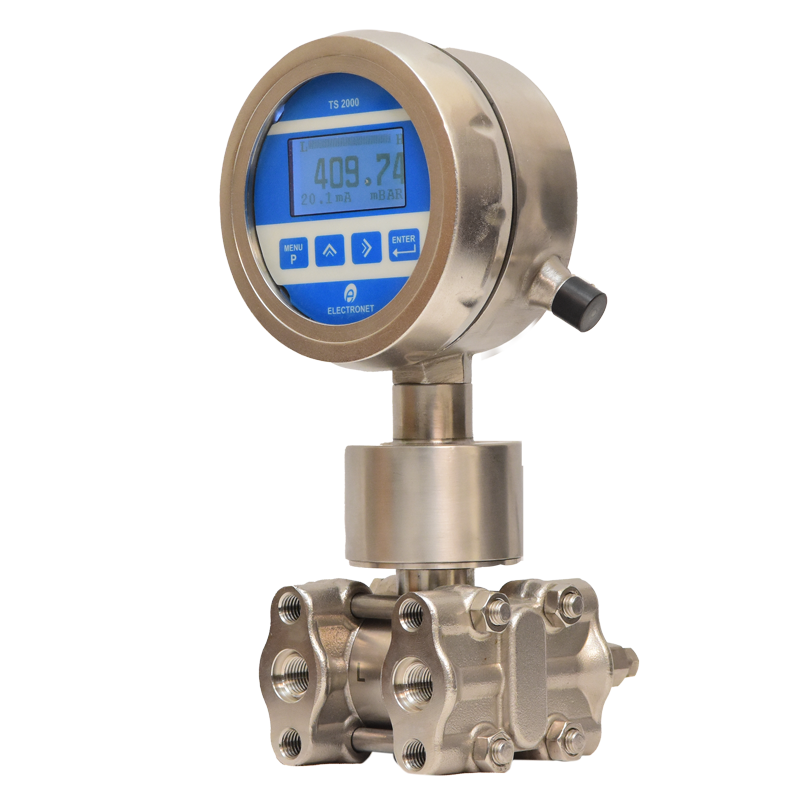

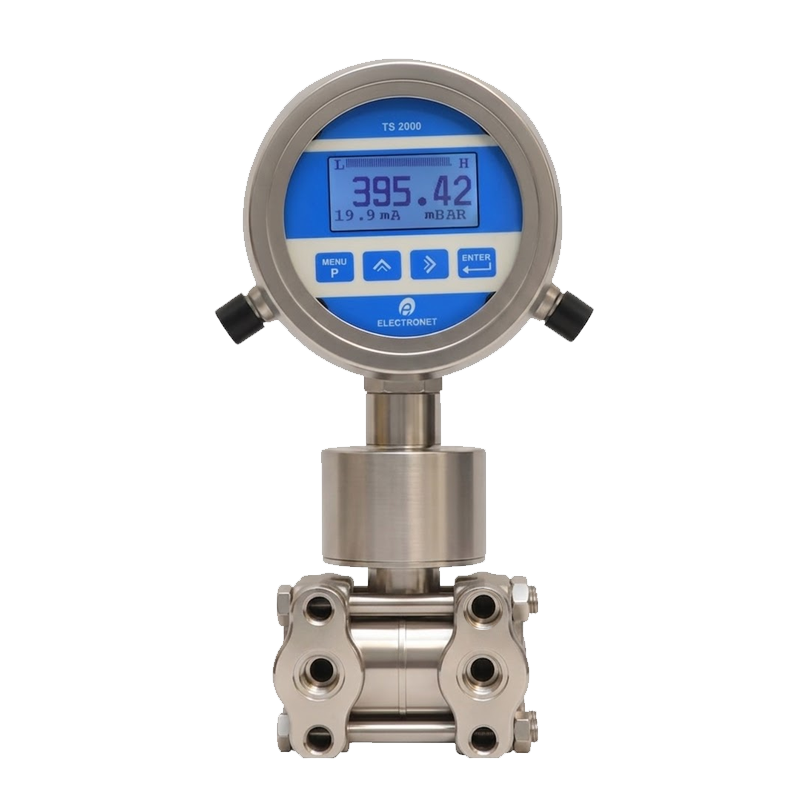

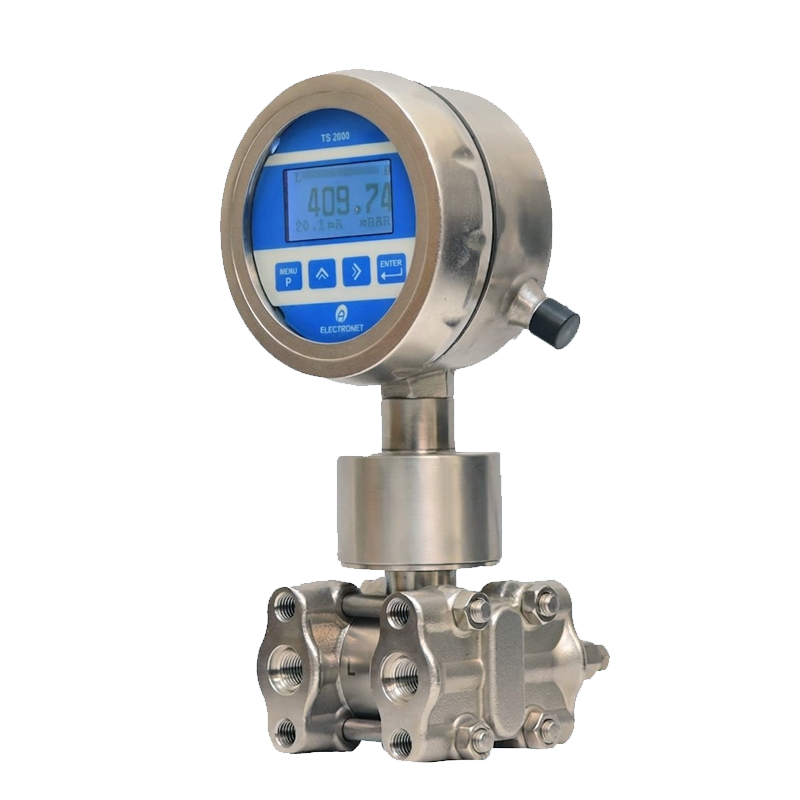

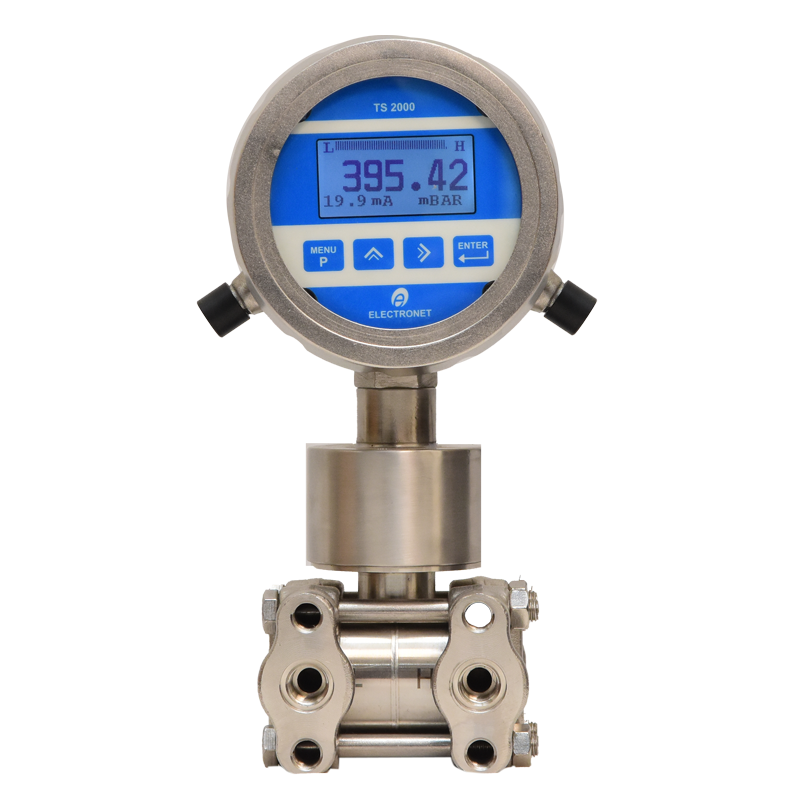

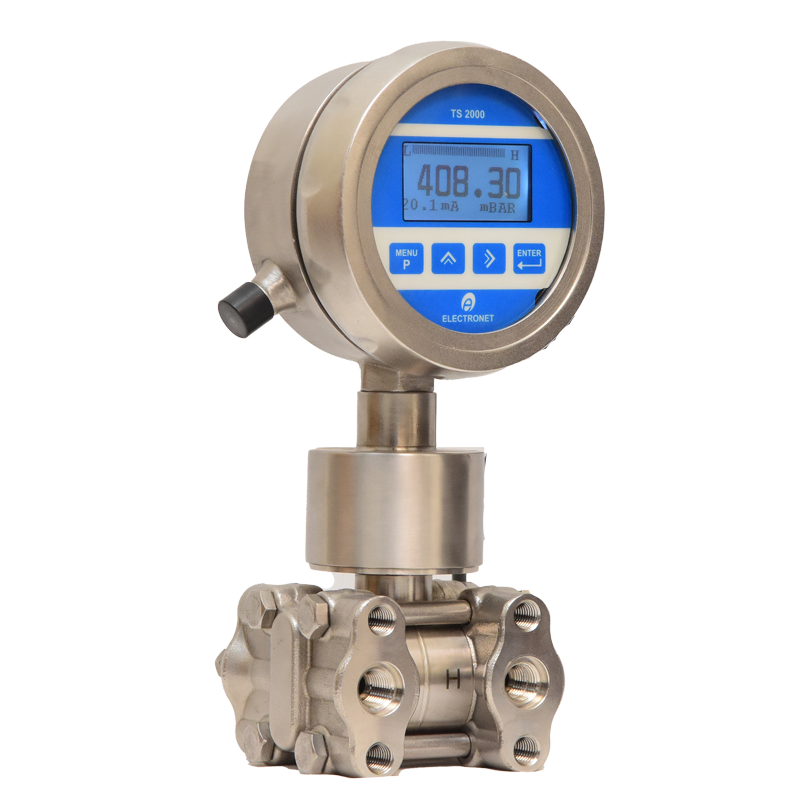

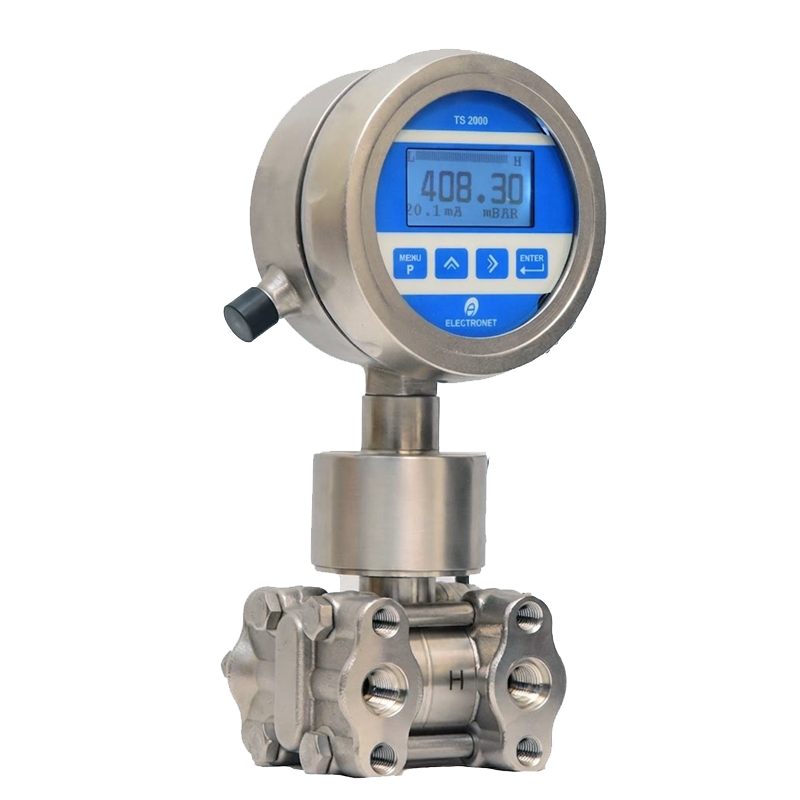

TS 2000-SDP (CAP) Capacitive Pressure Transmitter-Switch is designed for precise pressure measurement and switching applications in industrial processes. It uses a capacitive pressure sensor to measure pressures from 1.5 kPa to 2000 kPa (0.015 bar to 200 bar) with an accuracy of ±0.25% of the measured value. The transmitter operates on a two-wire 4–20 mA output and features a backlit LCD display for clear local indication. An optional alarm relay output enables effective pressure control and protection. With optional RS-485 MODBUS RTU communication, it supports easy system integration and remote monitoring. Built with SS-316 wetted parts and an IP-68 weatherproof enclosure, the TS 2000-SDP (CAP) ensures reliable performance in harsh and wet environments.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

Sensor Type	Capacitive Sensor
Pressure Range	1.5 kPa to 2000 kPa
Power Supply	18-36 V DC
Display	Backlight LCD
Accuracy	± 0.25% M.V.
Non Linearity	0.2% of Span
Non Repeatability	< 0.1% of Span
Response Time	1Sec
MOC of Electronics	SS-316
Enclosure	Weather Proof IP-68
Material of Construction	All wetted parts SS-316
Electrical Connection	M12 Connector
Over-Pressure Safety	2 times max. Pressure range
Burst Pressure	3 times max. Pressure range
Output	2-wire system with 4 to 20 mA
Alarm or Relay Output	1 Relay Output (Optional)
Communication Output	RS-485 MODBUS RTU (Optional)
Process Temperature	120°C max
Ambient Conditions	Temperature : -20°C to 70°C / Humidity : 5 to 95% non-condensing
Insulation Resistance	>100 MΩ at 100VDC
Process Connection	Refer ordering information
Mounting	Direct Line mount (Vertical)
Weight	Less than 3 kg

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (TS2000-SDP CAP)
Chemical / Process / Pharmaceutical Industry	Capillary remote-seal differential pressure telemetry and limit trip switching for aggressive, highly corrosive chemicals, slurry filters, and pressurized reactor tank levels where direct impulse piping would clog or corrode.
Fertilizer Industry	Capillary-isolated DP measurement across phosphoric/nitric acid scrubbing circuits, ammonium nitrate reaction tanks, and slurry filtration beds prone to crystallization.
Water and Wastewater Treatment Industry	Sludge thickener differential level tracking, lime slurry transfer pump DP interlocks, and coarse bar screen differential head monitoring using remote diaphragm seals to prevent impulse line clogging.
Food Industry / Dairy and Milk	Sanitary capillary diaphragm-seal level and DP monitoring on viscous syrup vessels, milk storage silos, pasteurization holding loops, and edible oil bleaching filtration skids.
Automation Industry / Manufacturing Industry	Remote diaphragm DP telemetry and interlock trip switching across heavy varnish/paint recirculation loops, viscous polymer dispensing headers, and hot oil filtration units.
Oil and Gas Industry / Petrochemical Industry	Capillary seal DP monitoring and safety interlock cutoffs across heavy crude oil separators, asphalt/bitumen storage tanks, vacuum distillation columns, and visbreaker units.
Steel Industry / Cement Industry	Differential pressure monitoring and alarm trip switching on blast furnace gas scrubbing water circuits, thickener rakes, and viscous rolling mill lubrication grease sumps.
Textile Industry	Capillary remote seal monitoring on high-temperature dye bath circulating pumps, size preparation mixing tanks, and chemical recovery evaporation vessels.
HVAC Industry / FMCG Industry	Differential pressure and level monitoring across consumer liquid batching tanks (detergents, lotions, shampoos) and industrial thermal fluid cooling loops.
