Ultrasonic Flow Meter
MAINS / 24V DC POWERED INLINE ULTRASONIC FLOW METER

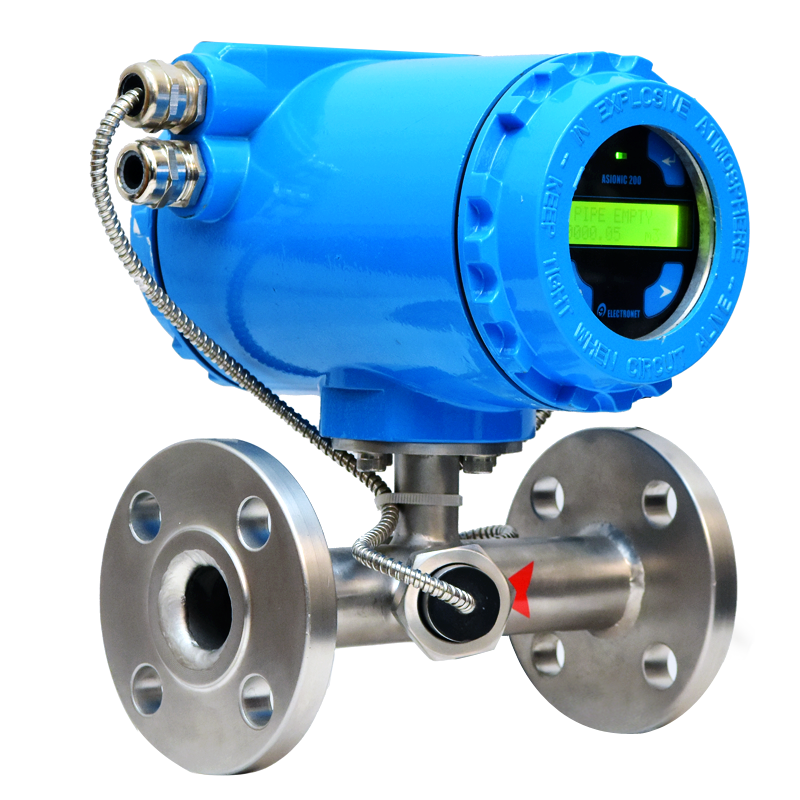

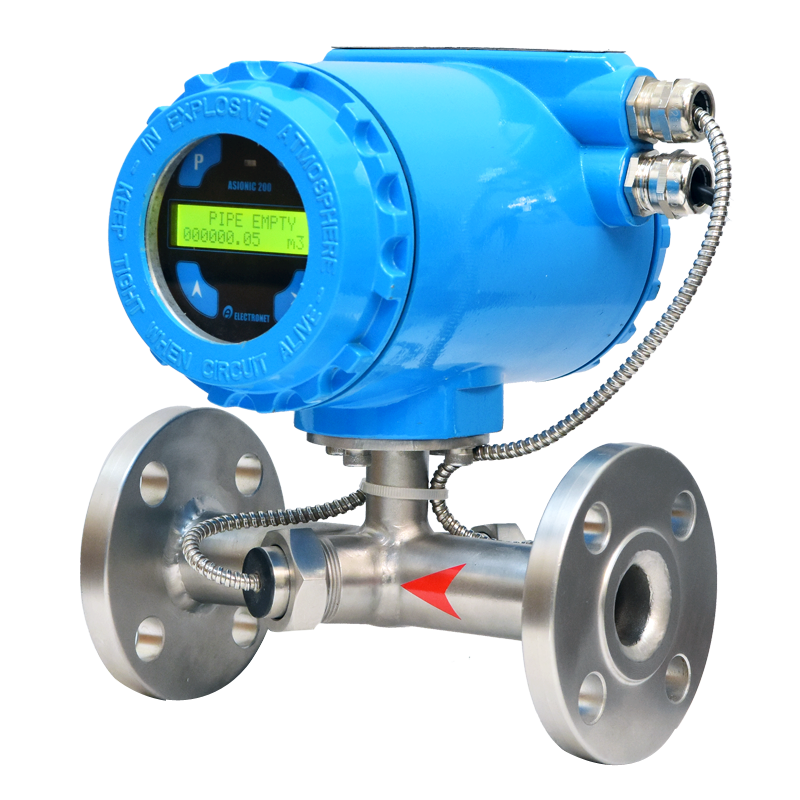

ASIONIC 200
ASIONIC 200 Inline Ultrasonic Flow Meter is a microcontroller-based, full-bore flow measurement solution using advanced transit time ultrasonic technology for high-accuracy measurement of sonically conductive liquids. Designed for medium to very large pipeline sizes from 15 NB up to 1000 NB, it offers single, dual, and four-path acoustic configurations to achieve superior accuracy in demanding applications. The obstruction-less design ensures zero pressure drop and maintenance-free operation, making it a reliable alternative to mechanical flow meters. ASIONIC 200 delivers accuracy up to ±0.2% of measured value (four-path configuration) with excellent long-term stability. It supports AC or 24V DC power supply, along with 4–20 mA, HART, RS485 (MODBUS RTU) , GSM, and GPRS communication options. With IP67 weatherproof and CMRI flameproof certification, it is ideal for water transmission, wastewater, power plants, and large industrial process applications.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
Performance Characteristics
|
Media |
Sonically Conductive Liquids |
|
|
Line Size |
15 NB to 1000 NB |
|
|
Electronics |
1) Integral (Local) 2)
Remote |
|
|
Viscosity |
200 cP maximum |
|
|
Turbidity |
Smaller than
10,000ppm (mg/ltr) with a low
level of air bubble
content |
|
|
Display |
LCD Display - 6 digit
for Flow Rate
& 8 digit
for Totalised Flow |
|
|
Calibration Range |
As per requirement (Factory Calibrated) |
|
|
Acoustic Paths |
Single, Dual
& Four Path |
|
|
Accuracy |
Single Path |
|
|
Line Size |
Accuracy |
|
|
50 to
600NB |
< ± 0.5%
of M.V. ± 5mm /sec
for Velocity Range 0.3 m/s
to 6 or 12 m/s |
|
|
600 to
1000NB |
< ± 1% of F.S. ± 5mm /sec
for Velocity Range
0.3 m/s to 6 or 12 m/s |
|
|
1000 to 2000NB |
< ± 2% of F.S. ± 5mm /sec
for Velocity Range
0.3 m/s to 6 or 12 m/s |
|
|
Dual Path |
||
|
Line Size |
Accuracy |
|
|
80 to
600NB |
< ± 0.3%
of M.V. ± 5mm /sec
for Velocity Range 0.3 m/s
to 6 or 12 m/s |
|
|
600 to
1000NB |
< ± 0.5% of F.S. ± 5mm /sec for Velocity Range 0.3 m/s to 6 or 12 m/s |
|
|
1000 to 2000NB |
< ± 1.5% of F.S. ± 5mm /sec for Velocity Range 0.3 m/s to 6 or 12 m/s |
|
|
Four Path |
||
|
Line Size |
Accuracy |
|
|
100 to
600NB |
< ± 0.2%
of M.V. ± 5mm /sec
for Velocity Range 0.3 m/s
to 6 or 12 m/s |
|
|
600 to
1000NB |
< ± 0.5%
of M.V. ± 5mm /sec
for Velocity Range 0.3 m/s
to 6 or 12 m/s |
|
|
1000 to 2000NB |
< ± 1% of F.S. ± 5mm /sec
for Velocity Range
0.3 m/s to 6 or 12 m/s |
|
|
Linearity |
± 0.5% of
M.V. |
|
Repeatability |
± 0.2% of
M.V. |
|
Temperature Coefficient |
± 0.05% per °C |
|
Process Temperature |
-20°C to 85°C maximum |
|
Process Pressure |
16 kg/cm2maximum |
|
Material of Construction |
Flow tube
- SS304, SS316,
PVC & MS |
|
Power Supply |
1) 90 to 250 V
AC, 50 Hz 2) 24V DC (+/-10%) |
|
Communication Output |
RS485 MODBUS
RTU, GSM, GPRS |
|
Output |
4 to 20 mA,
4 to 20 mA with
HART (Generic) |
|
Response Time |
Less than
1 Sec. |
|
Electronic Protection Class |
1) Field
Mount Weather Proof
IP-67 2) DIN Standard
(IP 54) |
|
3) Flameproof (CMRI llA llB Certified) |
|
|
Process Connections |
ANSI 150 Flanged (As per table
B 16.5) |
|
Ambient Conditions |
Temperature -20 to 70°C / Humidity 5 to 95% Non-condensing |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications |
| Water & Wastewater | Inline ultrasonic flow measurement in pipelines, treatment systems, and pumping stations |
| Chemical & Petrochemical | Monitoring liquid flow in reactors, storage tanks, and pipelines with powered inline measurement |
| Oil & Gas | Inline flow measurement in pipelines, separators, and storage tanks |
| Power Generation | Flow monitoring in boiler feedwater, condensate, and cooling systems using powered ultrasonic sensors |
| Food & Beverage | Inline flow measurement in production lines, tanks, and batch processes |
| Pharmaceuticals & Biotechnology | Flow monitoring in bioreactors, storage tanks, and process lines with powered inline operation |
| Pulp & Paper Industry | Measuring flow of chemicals and water in pulping, bleaching, and process lines |
| Marine & Shipbuilding | Flow measurement in fuel, water, and lubrication systems using powered inline ultrasonic sensors |
| Metals & Mining | Inline flow monitoring in slurry pipelines and process tanks |
| HVAC & Building Automation | Powered inline ultrasonic flow measurement in heating, cooling, and water distribution systems |
Core capabilities and advantages of the product.
