ASIONIC 400

Product Description

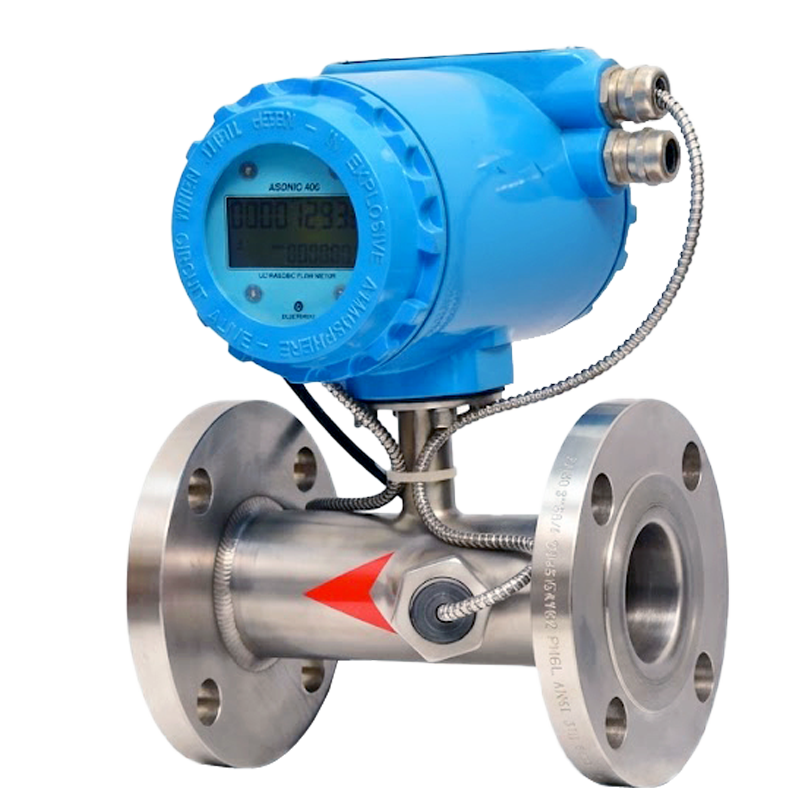

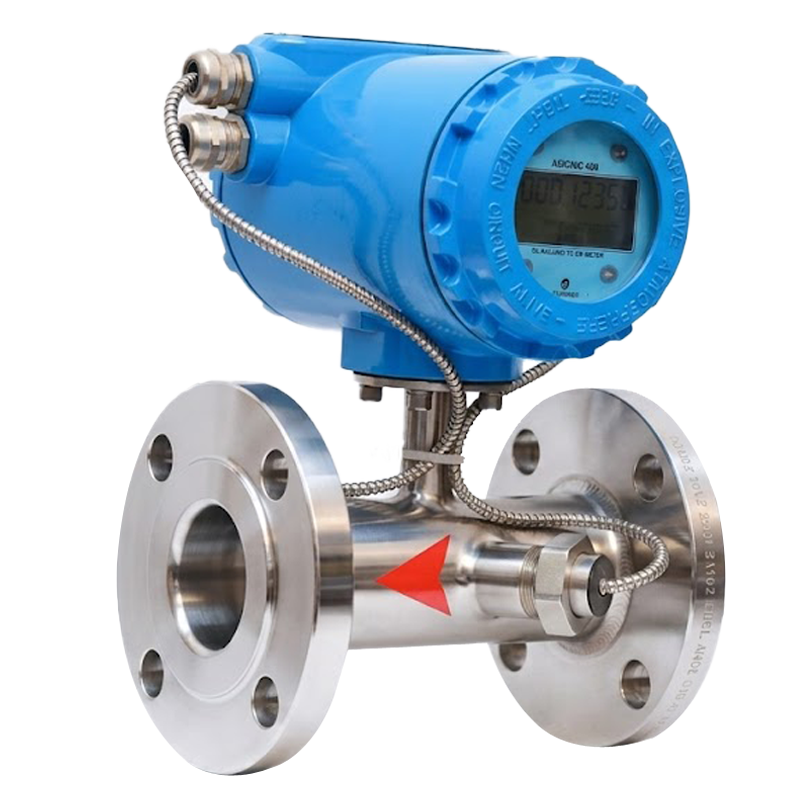

ASIONIC 400 Battery Operated Ultrasonic Flow Meter is a full-bore, inline flow measurement solution using advanced transit time ultrasonic technology for accurate and reliable liquid flow measurement. The meter offers obstruction-free design with zero pressure drop, ensuring maintenance-free operation and long-term stability. Designed for municipal and industrial water applications, it supports pipe sizes from 15 NB to 600 NB and delivers accuracy up to ±0.5% of measured value. ASIONIC 400 features local LCD indication for flow rate and totalized flow, with automatic display shut-off to extend battery life. The battery or solar-powered operation provides a service life of up to 5–10 years, making it ideal for remote installations. With IP67 weatherproof and CMRI flameproof certification, along with optional GSM, GPRS, and RF communication, it ensures dependable performance in harsh field conditions.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

Media	Liquids
Line Size	15 NB to 600 NB
Number Of Paths	Single
Electronics	1) Integral (Local) 2) Remote
Output	4 to 20 mA DC, Pulse (Open Collector), Frequency (0 to 1 KHz)
Communication Output	RS 485 (MODBUS RTU), GSM, GPRS & RF
Viscosity	200 cP maximum
Display	LCD Display - 7 digit for Flow Rate & 8 digit for Totalised Flow
Calibration Range	As per requirement (Factory Calibrated)
Accuracy	< ± 0.5% of M.V. ± 5mm /sec for Velocity Range 0.3 m/s to 6 or 12 m/s
Linearity	± 0.5% of M.V.
Repeatability	± 0.2% of M.V.
Temperature Coefficient	± 0.05% per °C
Process Temperature	-20°C to 85°C maximum
Process Pressure	16 kg/cm2 maximum
Material of Construction	Flow tube - SS304, SS316, PVC & MS
Power Supply	Battery Operated, Solar Powered
Low Battery indication	Provided
Battery Life	5 to 10 years, depending on sampling time and communication interval
Response Time	Less than 10 Sec.
Electronic Protection Class	Field Mount Weather Proof IP-67, DIN Standard (IP 54), Flameproof (CMRI IIA IIB Certified)
Process Connections	ASA 150 Flanged (As per table B 16.5)
Ambient Conditions	Temperature -20 to 70°C / Humidity 5 to 95% Non Condensing
Data Logging	For 5 Years (Per day 1 Sample)

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (ASIONIC 400)
Water & Wastewater Treatment	Autonomous inline bulk water metering, distribution network revenue custody transfer, district metering area (DMA) water loss tracking, and pump house discharge lines without external mains power.
ETP / STP Plants	Stand-alone flow totalization on secondary treated water lines, sand and activated carbon filter outlets, treated water recycling manifolds, and environmental effluent discharge headers.
Automation & Manufacturing	Cable-free sub-metering of facility raw and cooling water supplies, department-level utility consumption accounting, and equipment wash line flow tracking across decentralized plant locations.
Power & Nuclear Power Generation	Battery-powered flow measurement in remote cooling tower make-up pipes, plant boundary freshwater intake headers, raw reservoir transfer conduits, and auxiliary utility water lines.
Pulp & Paper Industry	Independent flow logging of mill raw water intake pipes, auxiliary cooling water balancing circuits, and non-conductive process water distribution across distant plant bays.
OEM Equipment Manufacturers	Pre-integrated self-powered inline meter for containerized water filtration units, mobile reverse osmosis trailers, skid-mounted booster systems, and remote utility packages.
Sugar & Distillery Industry	Autonomous flow totalization for condenser cooling supply lines, river intake pumps, spray pond balance circuits, and factory-wide water balancing without infrastructure cabling.

Key Features

Core capabilities and advantages of the product.

Ultrasonic Measurement using Transit Time Technology
Full Bore Type
Simple and Cost Effective Construction
Empty Pipe Indication
Automatic Meter Reading option over
GSM, GPRS & RF
Electronic Protection Class: Field Mount Weather Proof IP-67, DIN Standard (IP 54), Flameproof (CMRI IIA IIB Certified)
Leak, Burst and Tamper Detection
No Pressure Drop
Local Indication through LCD Display
