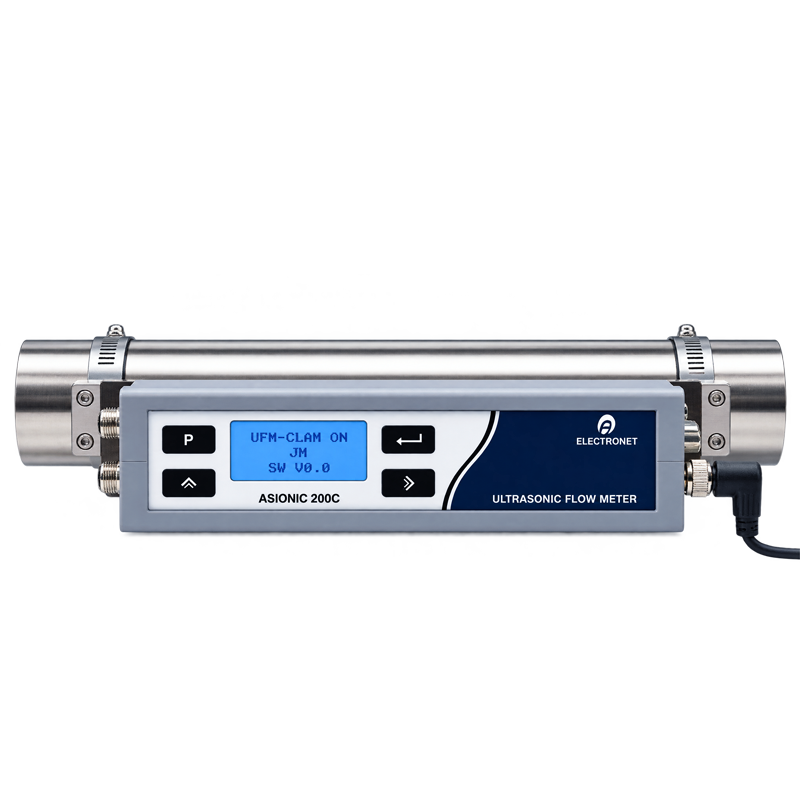

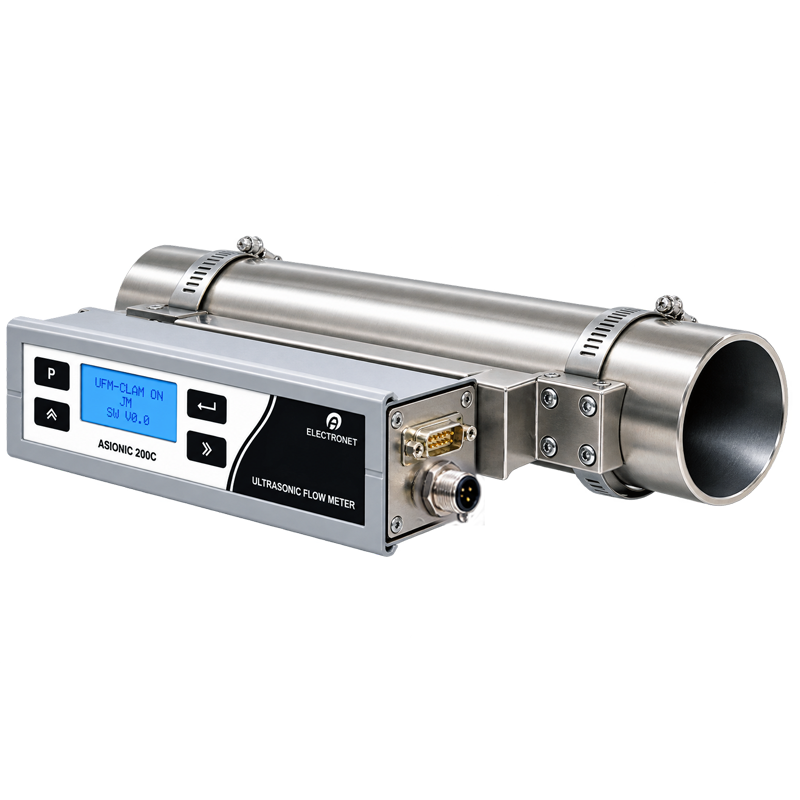

ASIONIC 200C

Product Description

ASIONIC 200C Clamp-On Ultrasonic Flow Meter is a non-intrusive flow measurement solution using advanced transit time ultrasonic technology to measure liquid flow accurately without pipe cutting or process interruption. The clamp-on design allows easy installation on existing pipelines, eliminating pressure loss, energy loss, and contamination risks. It supports a wide pipe size range from 50 NB to 2000 NB and is suitable for clean, sonically conductive liquids. ASIONIC 200C offers bi-directional flow measurement, high repeatability, and stable performance for both temporary and permanent installations. With features such as inbuilt data logging, RS485 (MODBUS RTU) communication, and 4–20 mA output, it integrates seamlessly with control systems. Available in portable, fixed, mains-powered, battery, or solar-powered configurations, it is ideal for water audits, flow surveys, energy monitoring, and industrial process applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

Pipe Line Size	50 NB to 2000 NB
Sensing Method	Differential Transit Type in direct or reflect mode
Media	Sonically Conductive Liquids
Viscosity	200 cP maximum
Turbidity	Smaller than 10,000 ppm (mg/ltr) with a low level of air bubble content
Power Supply	1) 90 - 250V AC 2) 24V DC (+/- 10%) 3) Solar Powered 24V DC
Accuracy	< ± 1% of F. S. ± 5mm /sec for Velocity Range 0.3 m/s to 6 or 12 m/s
Acoustic Paths	Single

Display	LCD Display
Communication Interface	RS485 MODBUS RTU
Data Logger	Internal Data Logging
Ambient Conditions	Temperature -20°C to 70°C / Humidity 5 to 95% Non Condensing
Operating Temperature - Transducer	-20°C to 80°C (Standard), -20°C to 150°C (Optional)
Pipe Size	50 mm (2”) to 2000mm (80”), Wall thickness <20mm
Pipe Material Compatibility	MS / SS / Cast Iron / Plastic
Analog Output	Isolated 4 to 20 mA, 600 Ω load
Humidity	Up to 99% Relative Humidity (Non Condensing)
MOC Electronics Enclosure	Cast-Aluminium / ABS Plastic / SS316
Transmitter Mounting	Wall Mounted
Electronic Protection Class	Field Mount Weather Proof IP-67, DIN Standard (IP 54)
Sensor Cable	Encapsulated Design Standard Cable Length : 9 mtr. (Optional upto 15 mtr.)
Sensor Mounting Methods	1) ‘V’ method 2) ‘Z’ method
Sensor Type	Small (50NB-100NB), Medium (125NB-300NB), Large (350NB-2000NB)

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications
Water & Wastewater	Non-intrusive, clamp-on flow measurement in pipelines and treatment systems
Chemical & Petrochemical	Monitoring liquid flow in reactors, storage tanks, and pipelines without process interruption
Oil & Gas	Clamp-on ultrasonic flow measurement in pipelines, separators, and storage tanks
Power Generation	Flow monitoring in boiler feedwater, condensate, and cooling systems without contact
Food & Beverage	Non-intrusive flow measurement in production lines, tanks, and batch processes
Pharmaceuticals & Biotechnology	Flow monitoring in bioreactors, storage tanks, and process lines without process contamination
Pulp & Paper Industry	Measuring flow of chemicals and water in pulping, bleaching, and process lines
Marine & Shipbuilding	Flow measurement in fuel, water, and lubrication systems using clamp-on ultrasonic sensors
Metals & Mining	Non-contact flow monitoring in slurry pipelines and process tanks
HVAC & Building Automation	Clamp-on ultrasonic flow measurement in heating, cooling, and water distribution systems
