TS 2000-UFM

Product Description

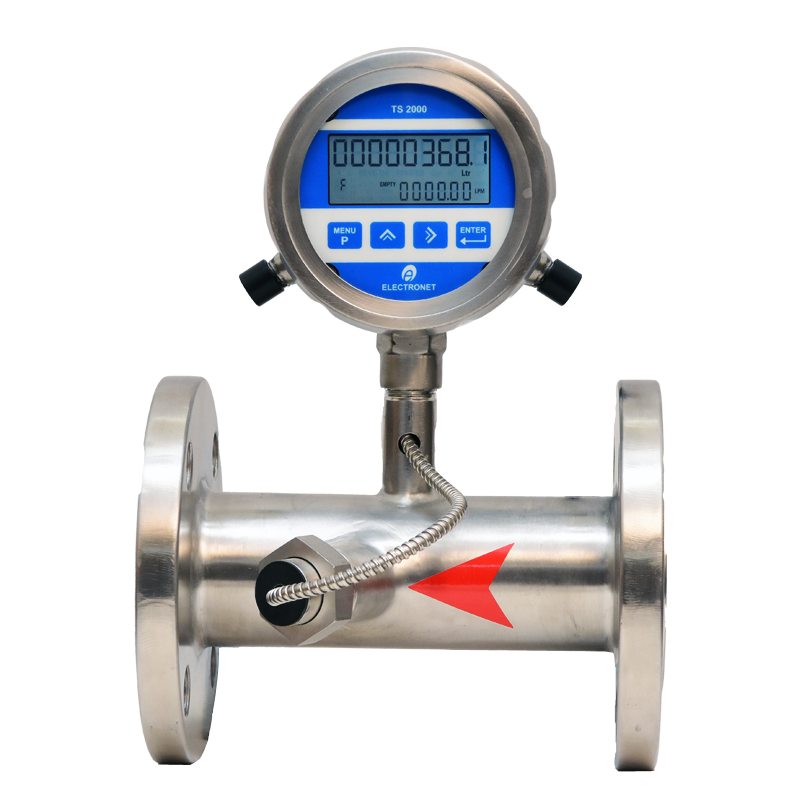

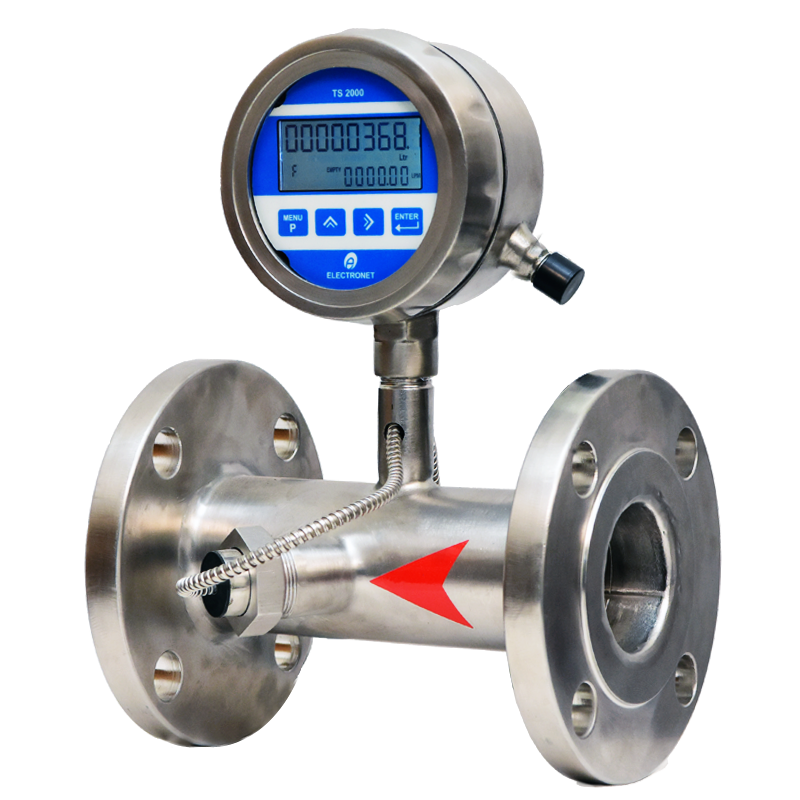

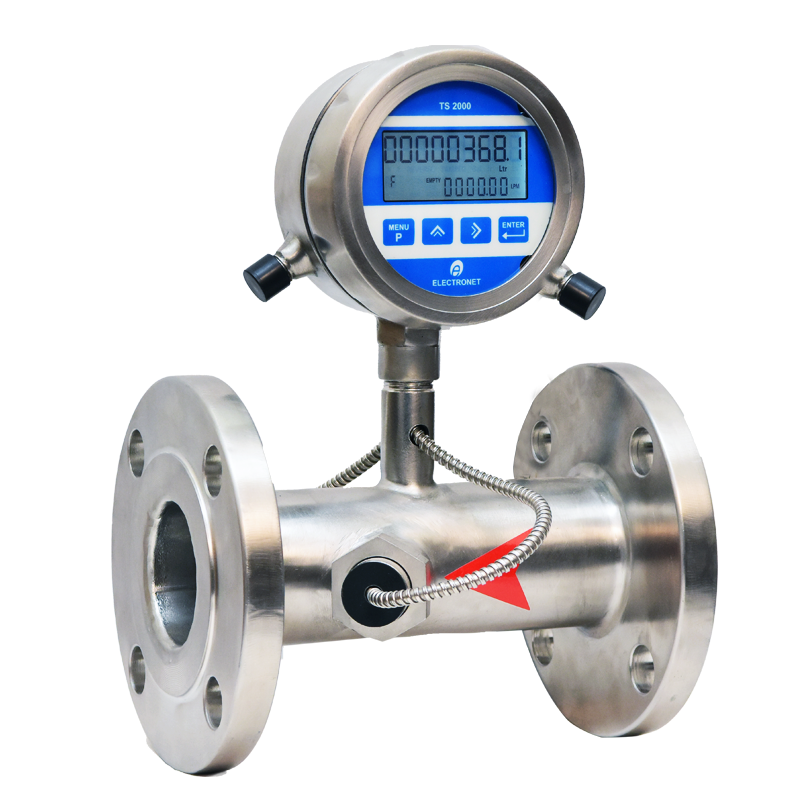

TS 2000-UFM Ultrasonic Flow Meter – Switch is a full-bore ultrasonic flow measurement solution designed using advanced transit time technology for accurate liquid flow monitoring. The obstruction-less design ensures zero pressure loss, maintenance-free operation, and reliable performance in demanding applications. Housed in a durable SS-316 enclosure with IP68 protection, it is suitable for harsh and wet industrial environments. TS 2000-UFM supports line sizes from 15 NB to 300 NB and delivers accuracy up to ±0.5% of measured value. Features such as empty pipe indication, backlit LCD display, and fast 1-second response time enhance operational reliability. With 4–20 mA output, optional pulse output, relay/alarm function, and RS485 (MODBUS RTU) communication, it is ideal for water, wastewater, and industrial process control applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics
Measuring principle	Ultrasonic flow measurement
Media	Liquid
Line Size	15 NB to 300 NB
Number Of Paths	Single
Electronics	1) Integral (Local) 2) Remote
Remote Cable Length	5 mtr.
Output 1	4 to 20 mA
Output 2	Pulse - Open Collector Type (Optional)
Alarm or Relay Output	1 Relay Output (Optional)
Communication Output	RS-485 MODBUS RTU (Optional)
Viscosity	200 cP maximum
Display	Backlight LCD - 6 Digit for Flow Rate, 8 Digit for Flow Totalizer
Accuracy	< ± 0.5% of M.V. for Velocity Range 0.3 m/s to 6 or 12 m/s
Linearity	± 0.5% of M.V.
Repeatability	± 0.2% of M.V.
Temperature Coefficient	± 0.05% per °C
Process Temperature	200°C max
Process pressure	16 kg/cm² max
Material of Construction	Flow tube: SS-316
	Electronics Enclosure: SS-316
	Sensor: SS-316 / PVC
Power Supply	24V DC
Response Time	1 Sec
Electronic Protection	Weather Proof IP-68
Sensor/Flow Tube Protection	Weather Proof IP-68
Process Connections	ASA 150 Flanged (As per table)
Electrical Connection	M12 Connector
Ambient Temperature	20°C to 70°C
Ambient Humidity	5 to 95% non-condensing

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (TS 2000-UFM)
Water & Wastewater Treatment	Inline flow transmission combined with dry-run pump trip switching in raw intake pump houses, lift stations, sand filter backwash piping, and booster delivery lines.
ETP / STP Plants	Flow monitoring with high/low rate alarm interlocks in secondary treated water headers, activated sludge recycle pipelines, and treated effluent discharge channels.
Automation & Manufacturing	Simultaneous flow measurement and low-flow safety shutdown switching on machine cooling loops, robotic welding cell water jackets, and automated wash-down supply lines.
Pulp & Paper Industry	Flow rate monitoring and low-flow interlock protection on paper machine felt and wire shower water lines, vacuum pump seal water headers, and plant utility supply lines.
OEM Equipment Manufacturers	Compact 2-in-1 flow transmitter and flow switch integration for packaged pump skids, modular industrial water purification packages, heat exchangers, and cooling units.
Sugar & Distillery Industry	Condenser cooling water circulation monitoring with flow trip protection, mill utility water balance lines, and maceration juice flow alarming.
