PS-01

Product Description

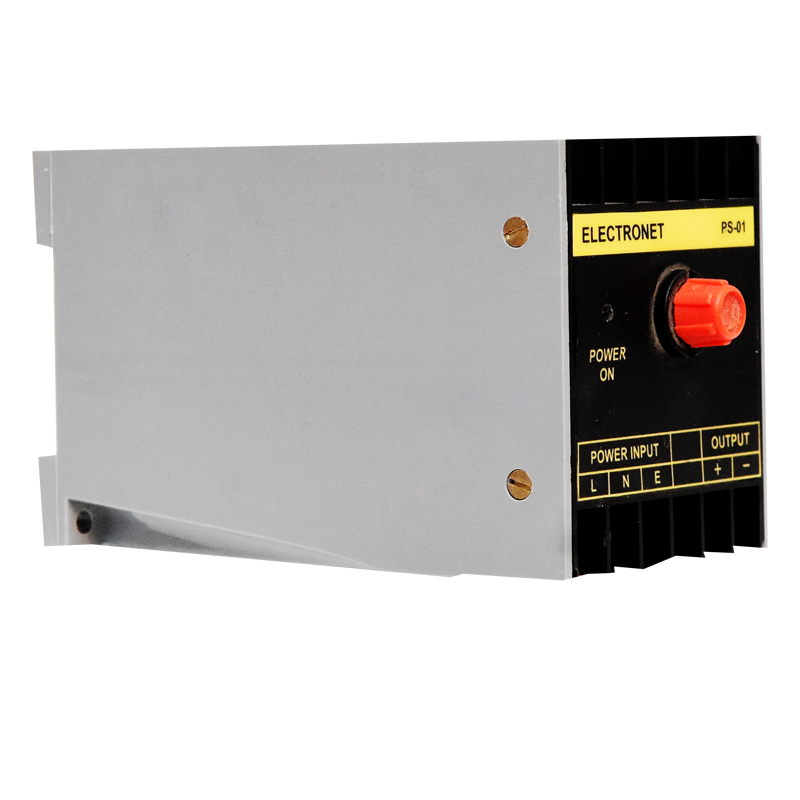

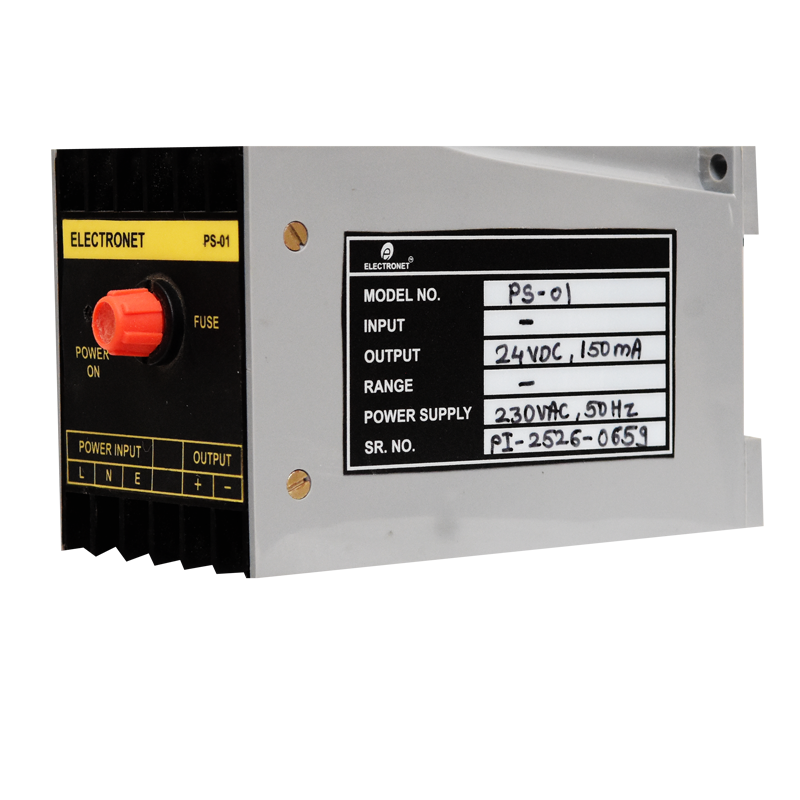

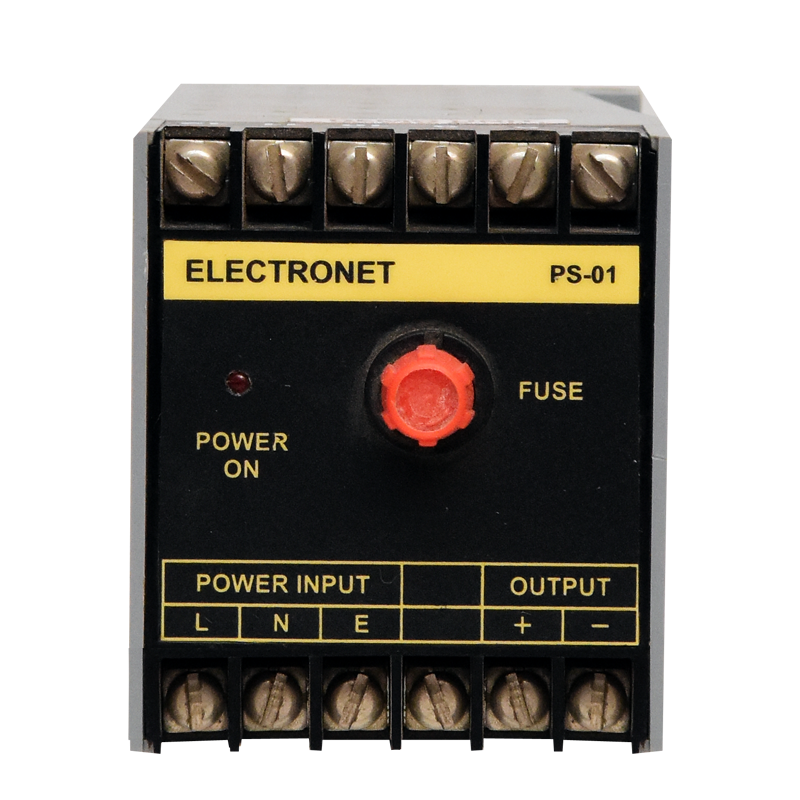

The PS-01 Single Output Power Supply is a compact DIN rail–mounted transmitter power supply designed to provide a stable 24 V DC output up to 100 mA for field instruments and transmitters. It operates on a 230 V AC input and delivers reliable DC power where local DC supply is not readily available. The unit offers high isolation of 1.4 kV between input and output, ensuring safe and dependable operation. Features such as short-circuit protection, low output ripple, and excellent line and load regulation enhance performance. Housed in a durable ABS plastic enclosure, the PS-01 saves panel space and ensures easy installation. It is ideal for powering single-channel transmitters in industrial process applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

No. of Input	01 No.
No. of Output	01 No.
Input Voltage	230 V AC, 50 Hz ± 10%
Output Voltage	24 V DC
Current Rating	100 mA max
Line Regulation	< ± 30 mV DC
Load Regulation	< 1.5% per Amp
Output Ripple	< 20 mV RMS
Isolation	1.4 KV between Input & Output
Short Circuit Protection	Provided
Temperature Coefficient	± 0.01% per °C
Enclosure	ABS, Plastic
Dimensions	60 mm (H) x 70 mm (W) x 110 mm (D)
Mounting	Din Rail Type
Weight	0.5 kg approx.
Operating Conditions	Temperature 0 to 70 °C / Humidity 5 to 95% non condensing

Note: This product is meant for laboratory/Process application only and not for custody transfer application.

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications
Process Industries	Power supply for field-mounted transmitters and instruments where DC supply is not readily available
Chemical & Petrochemical	Reliable 24 V DC power source for pressure, temperature, and flow transmitters in process areas
Power Plants	Supplying DC power to field instruments and auxiliary measurement devices
Water & Wastewater	Powering transmitters and sensors installed in remote or field locations
Oil & Gas (Non-custody Transfer)	DC power supply for field instrumentation in utility and process applications
Manufacturing & Automation	Panel-mounted power supply for transmitters and control instrumentation
OEM & System Integrators	Integration into skids and packaged systems requiring compact 24 V DC supply
Instrumentation & Control Panels	DIN-rail mounted transmitter power supply for control panels and junction panels
Laboratory & Test Setups	Stable DC power source for laboratory instruments and test transmitters
