TX 10

Product Description

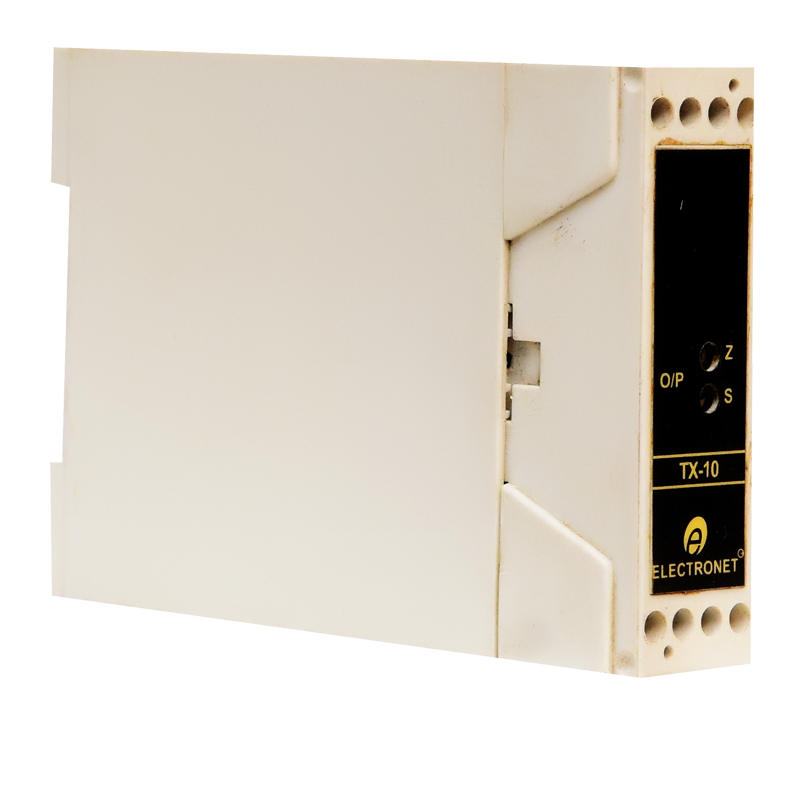

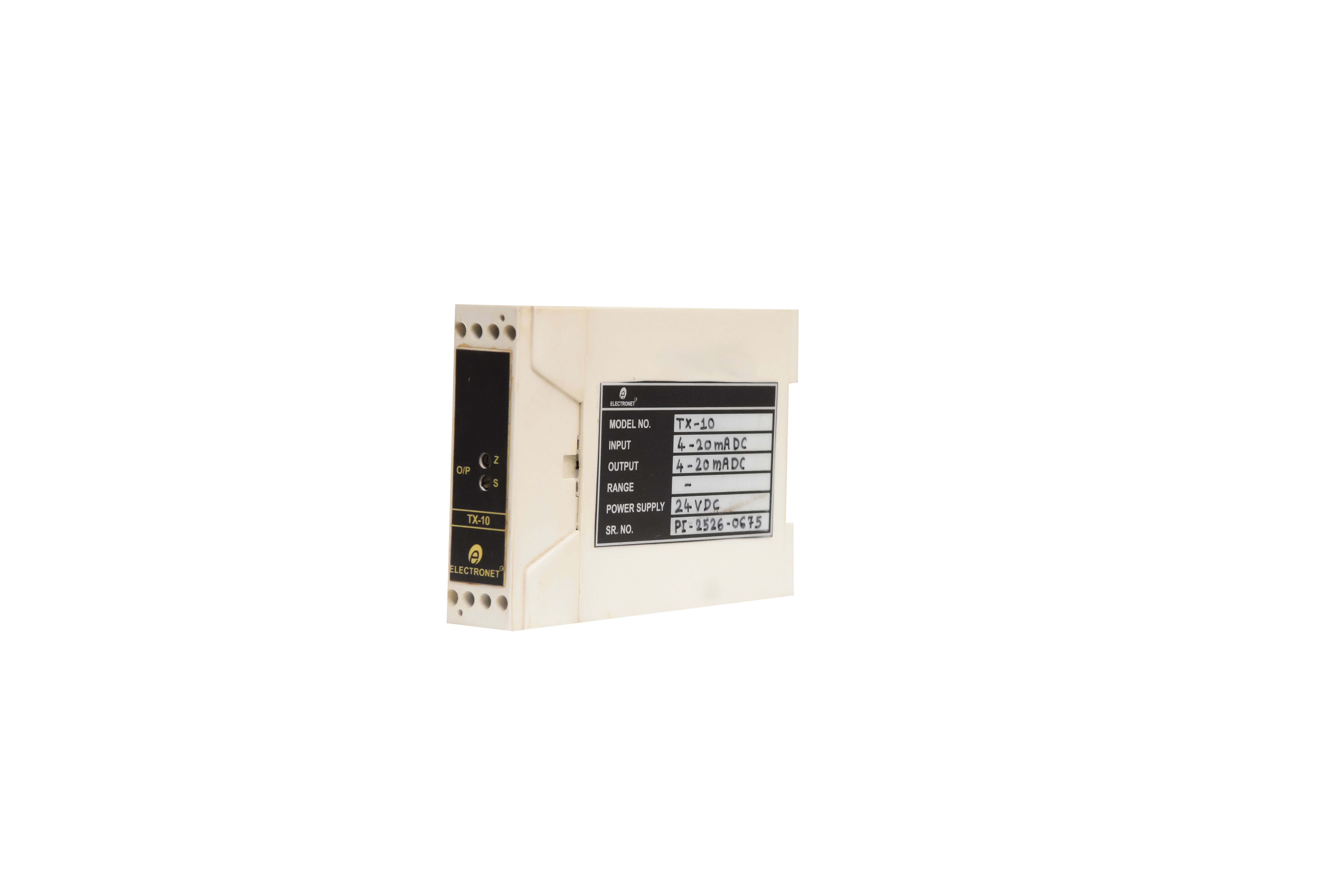

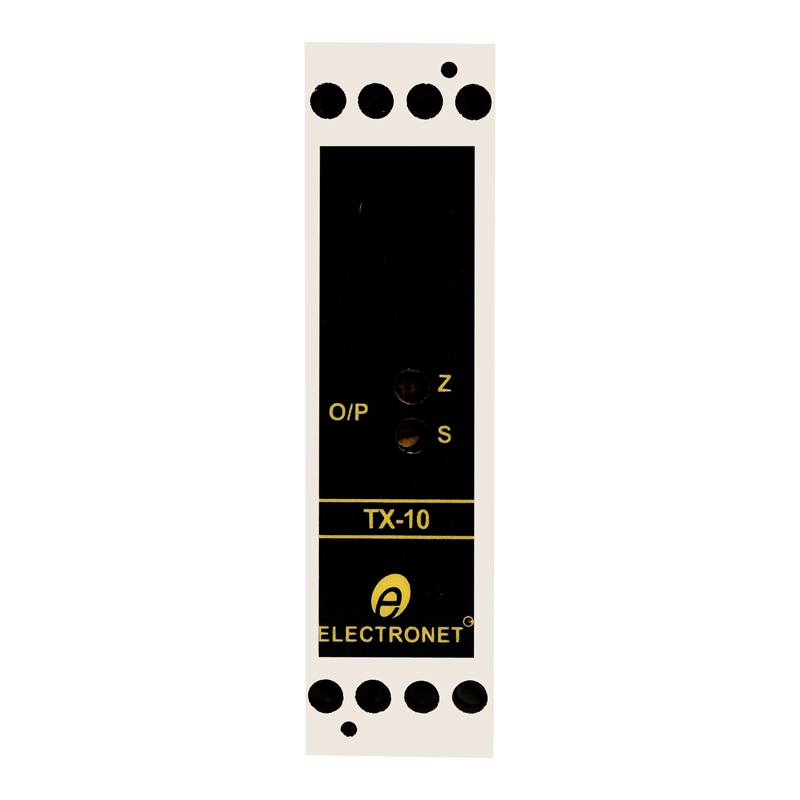

TX-10 Single Input Single Output Signal Isolator is a compact signal conditioning device designed for accurate signal conversion with electrical isolation in industrial applications. It accepts dedicated current or voltage inputs and provides an isolated current (4–20 mA) or voltage output, ensuring reliable signal transmission. Powered by a 24 V DC supply, the unit delivers high isolation up to 1.5 kV between input, output, and power supply. With accuracy better than ±0.25% of full scale and fast response time, it ensures stable process signals. The DIN rail–mounted, space-saving design simplifies installation and maintenance. The TX-10 offers a cost-effective and dependable solution for panel-based signal isolation and conversion.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

No. of Input	01 No.
No. of Output	01 No.
Type of Input	Dedicated
	1) Current (4-20 mA)
	2) Voltage (0-5 V / 1-5 V)
Type of Output	Dedicated
Type of Output	1) Isolated mA (4-20 mA)
	2) Isolated Volt (0-5 V DC)
Accuracy	+/- 0.25% F. S.
Isolation	1.5 KV between Input, Output & Power Supply
Power Supply	24 V DC
Power Consumption	< 4 VA
Response Time	< 50 mSec
Temperature Coefficient	+/- 0.01% per °C
Enclosure	ABS Plastic
Dimensions	75 mm (H) x 22 mm (W) x 110 mm (D)
Mounting	Din Rail Type
Weight	250 gms
Operating Conditions	Temperature -20 to 70 °C / Humidity 5 to 95% non condensing

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (TX 10)
Water & Wastewater Treatment	Galvanic isolation and signal conversion (e.g., 4–20 mA to 0–10 V or signal splitting) between field-level transmitters, flow meters, and central PLC/SCADA panels to prevent ground potential shifts across long plant cables.
Automation & Manufacturing	Active loop isolation and noise filtration for high-speed automated packaging, robotic cells, and variable frequency drive (VFD) panels to prevent EMI/RFI interference on analog feedback circuits.
Oil & Gas / Petrochemical	Active galvanic barrier and transmitter power supply for hazardous-area field sensors, fuel loading rack instrumentation, compressor telemetry, and tank gauging loops linked to DCS cabinets.
Nuclear Power & Power Generation	3-port isolation (input, output, and power supply) for high-voltage switchyard instrumentation, boiler drum level/pressure loops, and turbine supervisory channels to protect DCS cards against electrical surges.
Textile Industry	Active isolation and signal boosting for tension sensors, infrared temperature transmitters, and speed controls exposed to intense electrical switching noise on spinning and stenter lines.
Pulp & Paper Industry	Signal re-transmission and loop isolation for stock chest level sensors, bleaching chemical transmitters, and machine wire section analog controls across high ground-impedance plant bays.
OEM Equipment Manufacturers	DIN-rail mounted signal conditioner and transmitter power supply module for packaged chiller units, burner control cabinets, industrial compressor packages, and custom automation skids.
Sugar & Distillery Industry	Isolating analog transmitter signals in proximity to heavy steam turbines, cane shredder slip-ring motors, and co-generation panels to maintain stable process control signals.
