Product Description

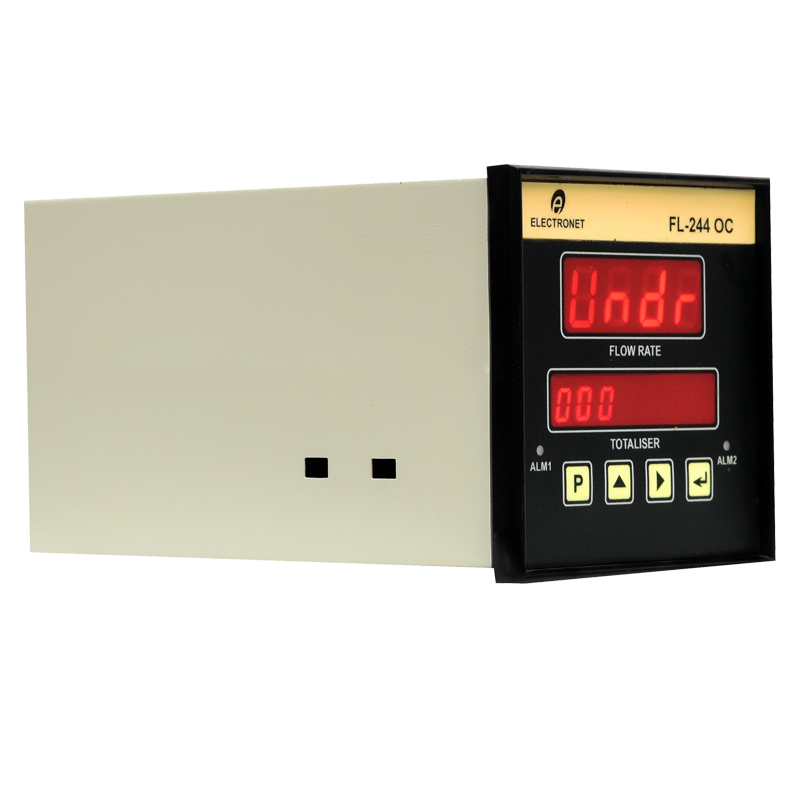

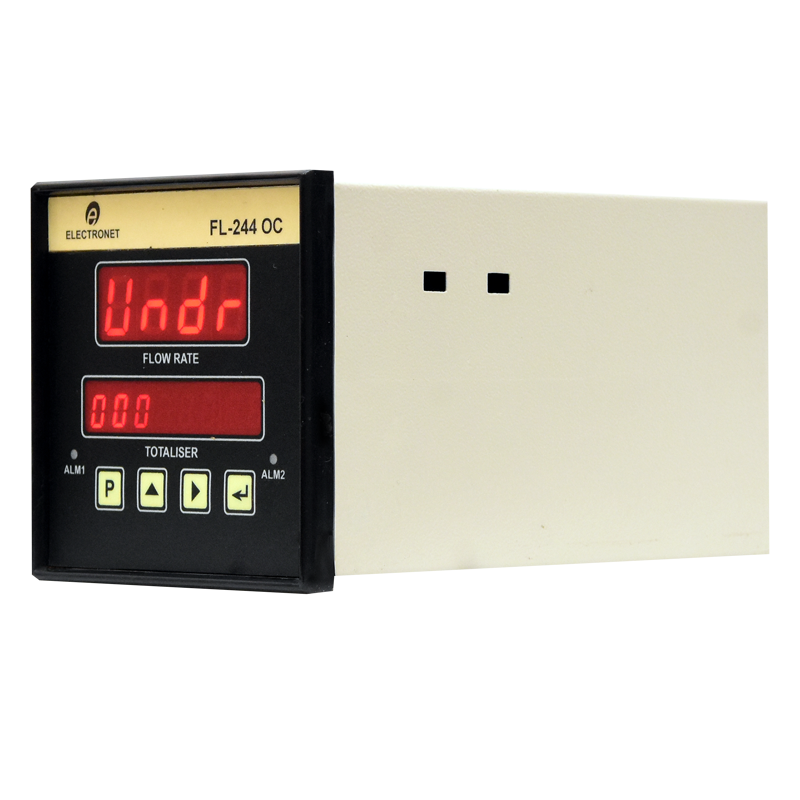

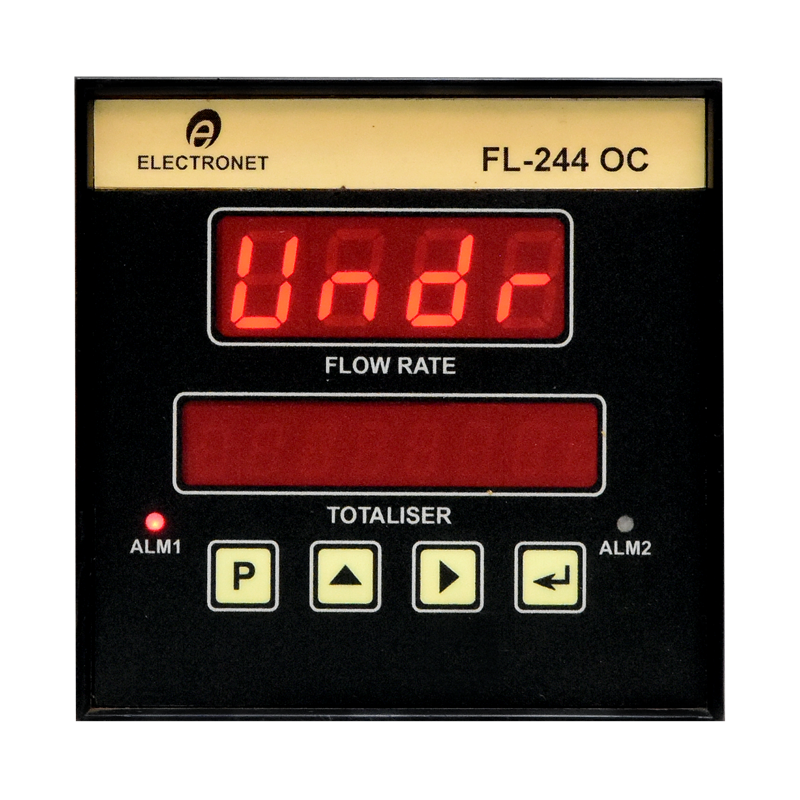

FL-244 OC Flow Indicator Totaliser is a microcontroller-based flow measurement instrument designed for accurate indication and totalisation of flow in industrial applications. It supports voltage (1–5 V), current (4–20 mA), and frequency (0–10 kHz) inputs, with selectable linear or square-root characteristics. The unit features a clear LCD display for flow rate and totalised flow, along with programmable low-flow cut-off and input averaging for turbulent flow conditions. It offers normal and batch operation modes with configurable relay alarm outputs for high, low, or batch control. Optional 4–20 mA retransmission output, RS-485 MODBUS RTU communication, and 24 V DC transmitter power supply enhance system integration. Available in DIN standard, IP-65 weatherproof, and CMRI-certified flameproof enclosures, the FL-244 OC ensures reliable performance in demanding industrial environments

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

Operating Modes	Normal / Batch
Input	1) Voltage (1-5V) [Linear]
	2) Current ( 4-20 mA) [Linear]
	3) Frequency (0-10 KHz)
Display	LCD Display for Flow Rate & Totalised Flow
Range	Programmable (0 to 9999)
Accuracy	Better than +/- 0.25% of F. S.
Open Sensor Indication	Available
Power Supply	90 - 250V AC
Power Consumption	Less than 10 VA
Temperature Drift	< 0.01% of F. S. per°C change
Response Time	< 200 mSec
Isolation	1.4 KV between Input, Output & Power Supply
Enclosure	1) DIN Standard
	2) Weather-proof, IP-65
	3) Flameproof (CMRI IIA IIB Certified)
Bezel Size	96 (H) x 96 (W) x 160 (D) in mm approx. for DIN Std. Enclosure
Mounting	Flush of the Panel for DIN std. enclosure & wall mounting suitable for WP enclosure
Weight	Less than 2 Kg (Approx.)
Ambient Temperature	Temperature -20 to 70°C / Humidity 5 to 95% non condensing
OPTIONAL
Transmitter Power Supply	24V DC 100 mA
Retransmission Output	4-20mA
Alarm Output	Potential free Relay Contact - 2 Nos. (1 c/o, 1 Amp. @ 230 V AC) Configurable for High, Low & Batch
Communication Port	RS485 supporting MODBUS RTU protocol

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (FL 244 OC)
Water & Wastewater Treatment	Open-channel flow computation and totalization over weirs and flumes, raw water intake rate monitoring, pumping station totalized delivery tracking, and clear water discharge metering.
Automation & Manufacturing	Centralized panel accounting for departmental water consumption, compressed air volume accounting, industrial cooling loop totalization, and batch fluid dispensing.
Oil & Gas / Petrochemical	Flow rate monitoring and batch totalization for fuel oil transfer, blending manifolds, oily water drainage channels, and pipeline utility circulation headers.
Nuclear Power & Power Generation	Flow indication and volumetric accounting for condenser cooling makeup, raw reservoir supply channels, demineralized water utility consumption, and discharge channels.
Textile Industry	Water consumption accounting across wet-processing lines, continuous scouring/bleaching flow monitoring, and open drain discharge channel flow rate integration.
Pulp & Paper Industry	Freshwater intake header totalization, machine shower water balance tracking, pulper process water metering, and mill effluent discharge channel monitoring.
OEM Equipment Manufacturers	Panel integration for packaged open-channel metering stations, modular RO/filtration skid batch totalizers, booster pump flow monitoring consoles, and test benches.
Sugar & Distillery Industry	Raw cane juice flume flow rate indication and totalization, maceration water accounting, barometric condenser cooling supply integration, and mill drain channel metering.
