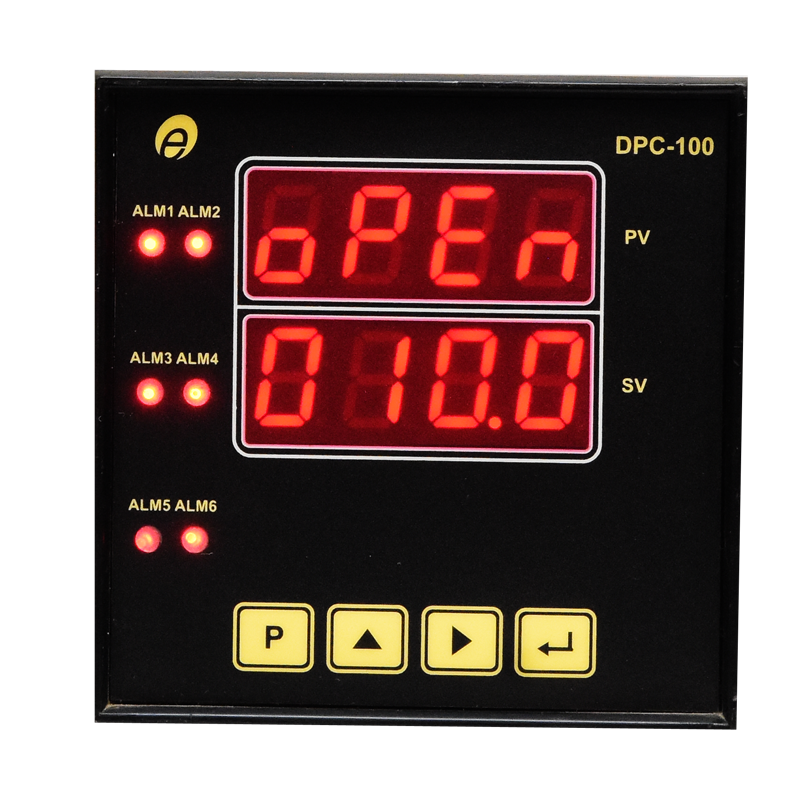

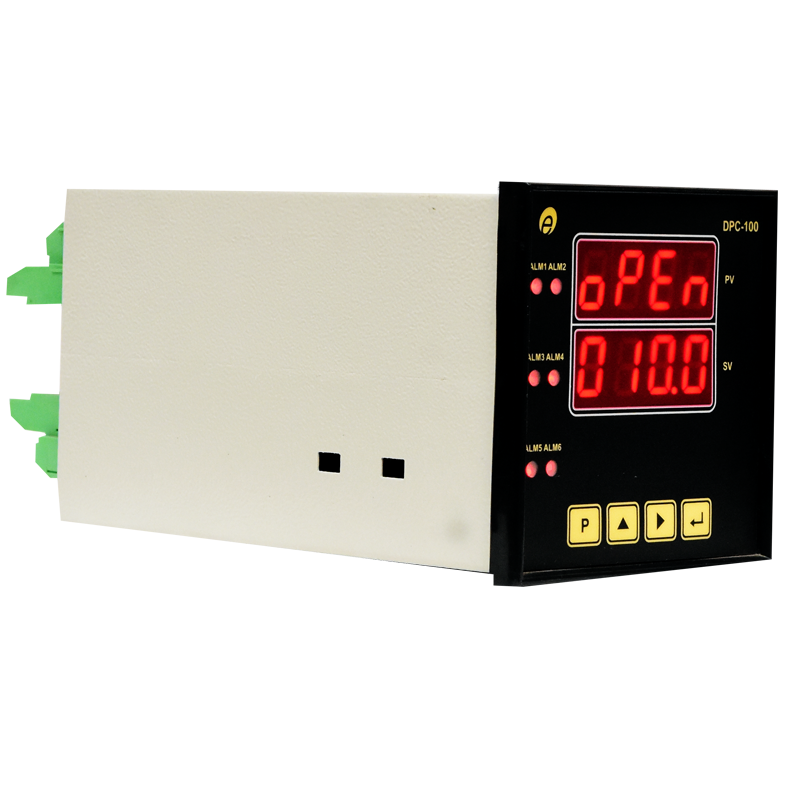

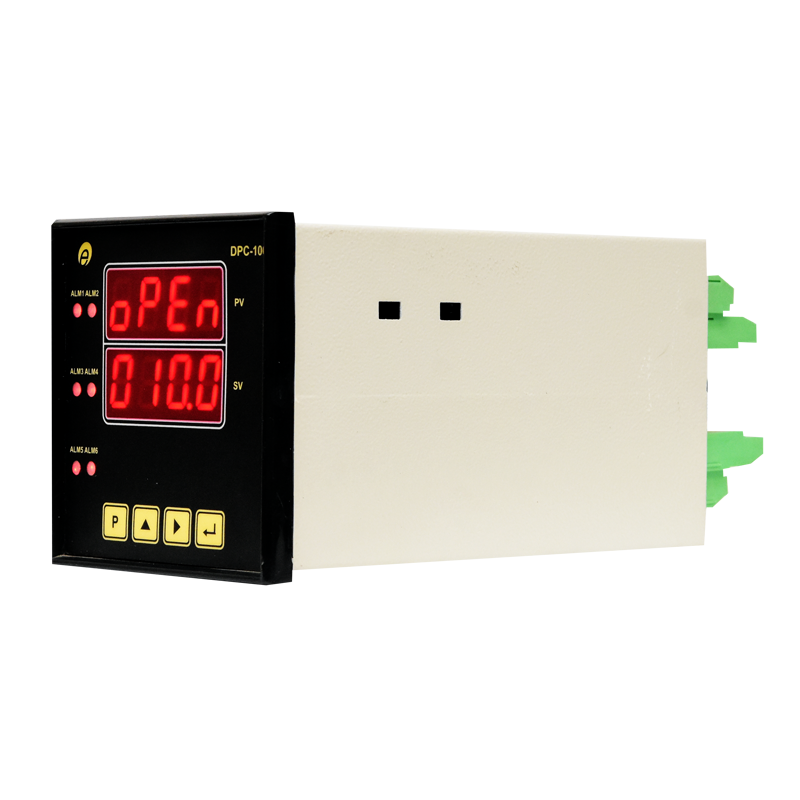

DPC-100

Product Description

DPC-100 Single Input Process Indicator is a versatile digital process indicator and ON/OFF controller designed for precise monitoring of industrial parameters such as temperature, pressure, flow, level, and humidity. It supports a wide range of inputs, including RTD, thermocouple, current (4–20 mA), and voltage signals, offering flexible application use. The unit features software calibration, open sensor indication, and cold junction compensation for accurate and stable measurements. A clear LED display provides real-time process visibility, while configurable alarm relay outputs enable effective control action. Optional retransmission output and RS-485 (MODBUS RTU) communication allow seamless system integration. Built for panel, field, or flameproof mounting, the DPC-100 ensures reliable performance in demanding industrial environments.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics

Type of Control	ON/OFF
No. of Inputs	01 No.
Input	1) RTD (PT-100 / PT-200) 2 or 3 Wire
	2) Thermocouple (J / K / R / S / T / B / E Type)
	3) Current (0-20 mA / 4-20 mA)
	4) Voltage (0-5V DC / 1-5V DC / 0 - 0.1V DC)
Display	LED Display
Range	Programmable for mA & Voltage (-999V to +9999V)
Accuracy	1) For R, S & B type Thermocouple, better than ± 0.5% of F. S.
Accuracy	2) For rest inputs, better than ± 0.25% of F. S.
Open Sensor Indication	‘OPEN’ on display for RTD & Thermocouple input
Power Supply	90 - 250V AC, 24 VDC
Power Consumption	< 10VA
Temperature Drift	< 0.01% of F. S. per °C change
Response Time	< 200 mSec
Isolation	1.4 KV between Input, Output & Power Supply
MOC Electronics Enclosure	1) DIN Standard
	2) Field Mount IP 65
	3) Flameproof (CMRI IIA IIB Certified)
Bezel Size	96 (H) x 96 (W) x 160 (D) in mm approx. for DIN STD. Enclosure
Mounting	Flush of the Panel for DIN STD & Wall mount for WP / FLP Enclosure
Weight	Less than 1 Kg (Approx.)
Ambient Temperature	Temperature -20 to 70 °C / Humidity 5 to 95% non condensing
OPTIONAL
Transmitter Power Supply	24V DC 30 mA, 24V DC 100 mA
Retransmission Output	4 - 20 mA / 0 - 5V, Isolated
Alarm Output	Potential-free relay contact - 4 Nos. (1 c/o, 1A @ 230V AC)
Alarm Output	Individual Configuration for high and low
Communication Port	RS485 supporting MODBUS RTU protocol

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (DPC-100)
Water & Wastewater Treatment	Single-loop panel display for water reservoir levels, lift station wet well depths, discharge header pressures, and inline flow rate indications.
Automation & Manufacturing	Dedicated process indication for hydraulic pack line pressures, coolant sump levels, furnace zone temperatures, and machine tool operating parameters.
Oil & Gas / Petrochemical	Local control panel readout for fuel storage tank levels, pipeline delivery line pressures, compressor lubrication temperatures, and knock-out drum monitoring.
Nuclear Power & Power Generation	Panel indication for auxiliary cooling loop temperatures, boiler feed header pressures, deaerator storage levels, and condensate tank parameters.
Textile Industry	Monitoring steam jacket temperatures on dyeing kiers, bath levels in bleaching ranges, stenter heating chamber temperatures, and compressed air pressures.
Pulp & Paper Industry	Stock chest level monitoring, dryer cylinder steam pressure display, dilution water flow rate readouts, and chemical holding tank level indication.
OEM Equipment Manufacturers	Standard panel meter for skid-mounted packaged boilers, industrial air compressors, pump controller panels, and water treatment skids.
Sugar & Distillery Industry	Operator panel display for evaporator calandria steam pressure, clarified juice tank levels, fermentation vat temperatures, and spent wash line pressures.
