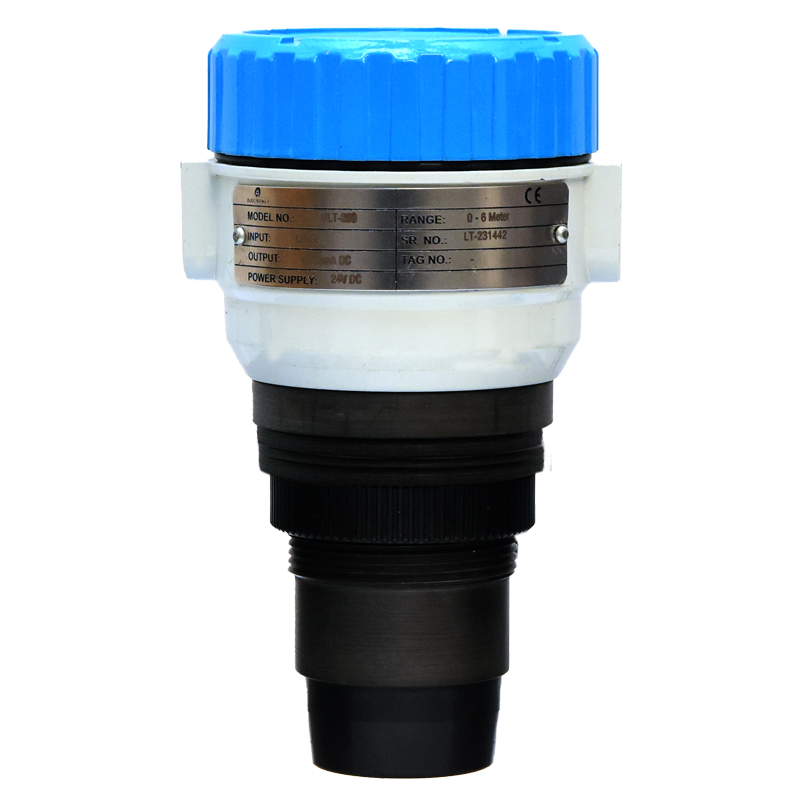

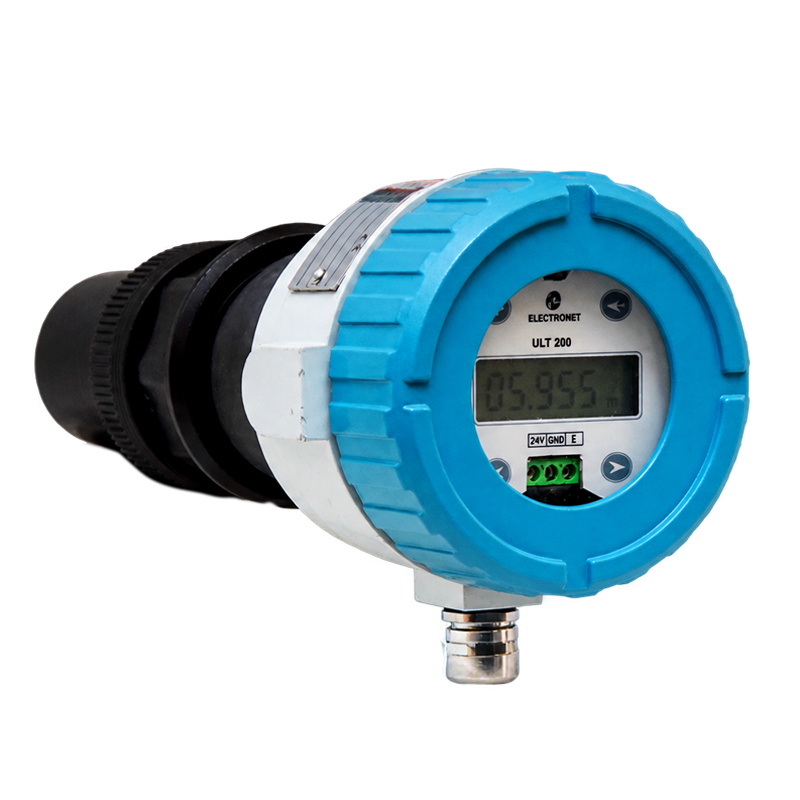

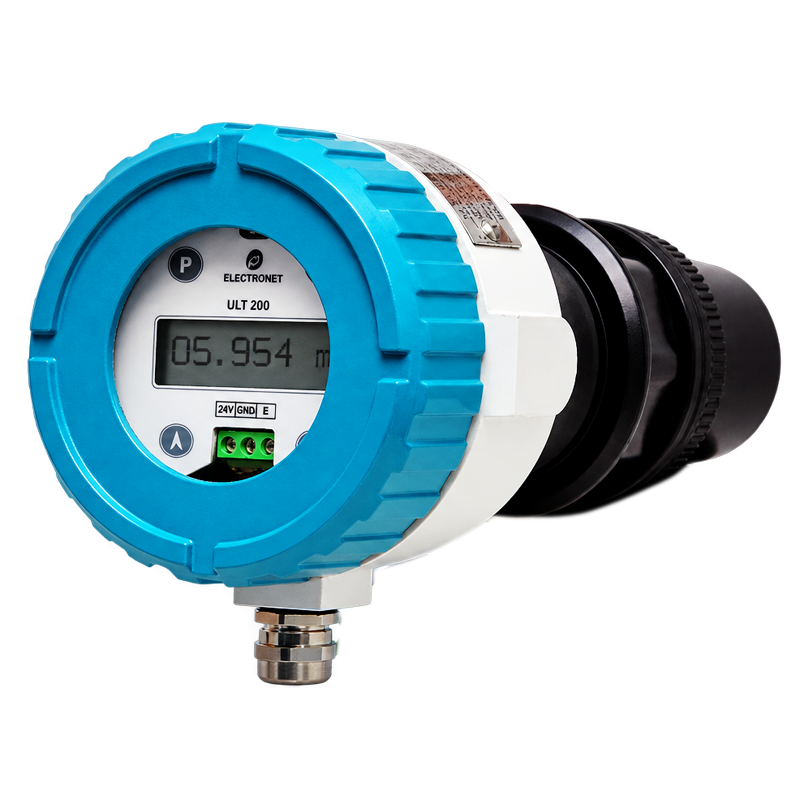

ULT 200

Product Description

ULT 200 Two-Wire Ultrasonic Level Transmitter is designed for accurate non-contact liquid level measurement using ultrasonic time-of-flight technology. It operates on a 2-wire loop-powered (4–20 mA) system, ensuring easy installation and reduced wiring requirements. With a measuring range up to 12 meters, it is ideal for applications involving slurries, corrosive liquids, and wastewater. The transmitter features automatic temperature compensation and narrow beam technology for stable and precise readings. A built-in LCD display provides clear local indication, while optional HART communication enhances configuration and diagnostics. Compact and reliable, the ULT 200 minimises maintenance and process downtime in industrial environments.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Measurement Principle	Ultrasonic: Time Of Flight
Measuring Range	up to 12 mtrs.
Electronic Location	Integral (Local)
Type of Output	4 - 20 mA DC, 4 - 20 mA with HART (Generic)
Power Supply	24V DC Two-Wire Loop Powered
Power Consumption	< 500 mW
Dead Band	Less than 300 mm

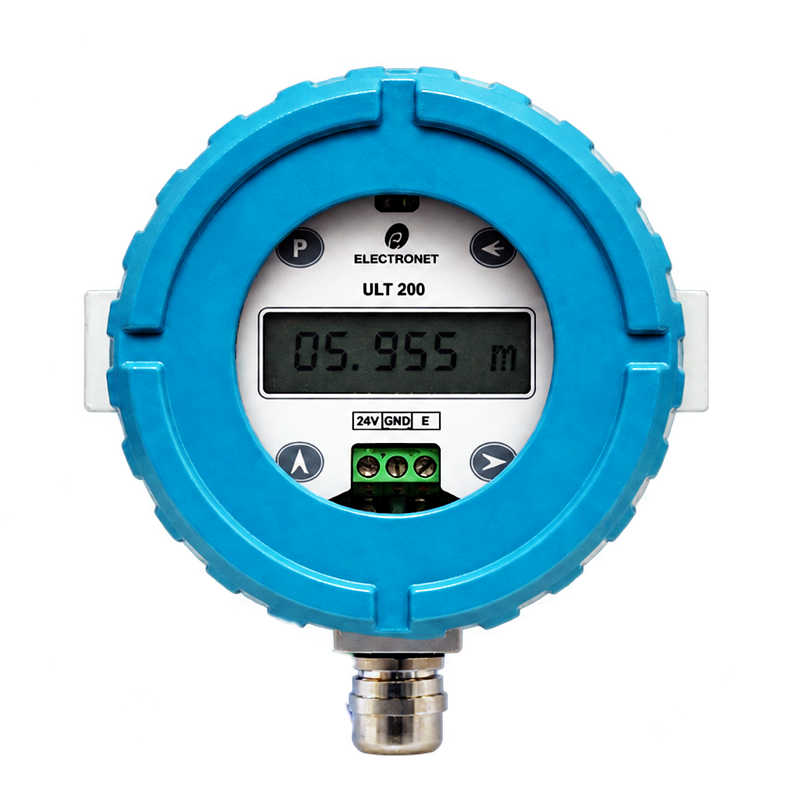

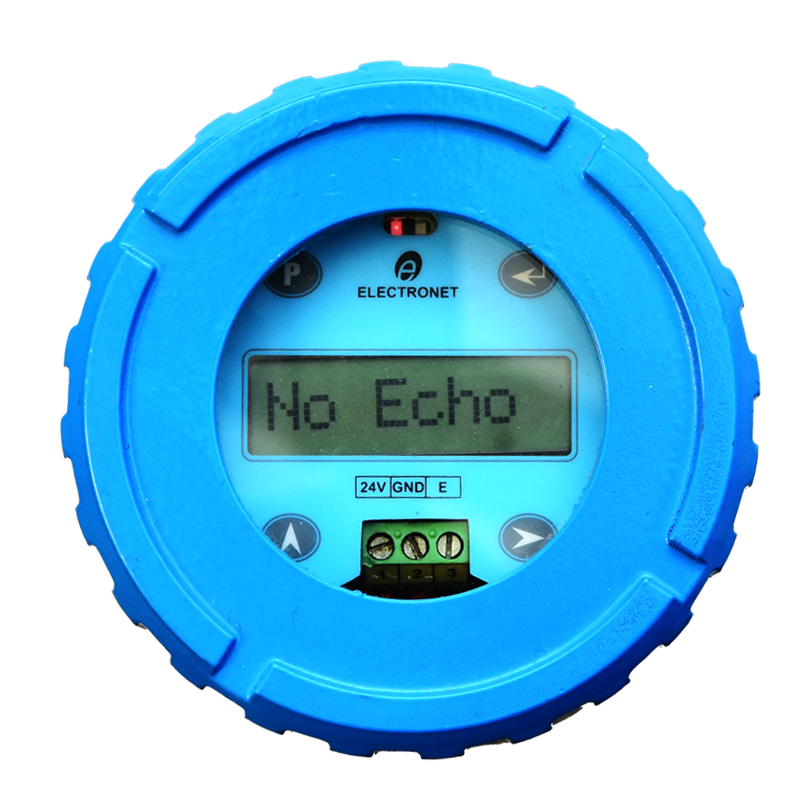

Display	LCD
Accuracy	+/- 0.25% of F. S.
Linearity	+/- 0.1%
Repeatability	+/- 0.1%
Stability	+/- 0.05%
Process Temperature	0 to 85°C max.
Operating Pressure	Atmospheric
Beam Angle	< 7°
Measuring Frequency	25 KHz
Temperature Coefficient	+/- 0.01% per °C

Technical Specifications

Electronic Protection Class	Flameproof (CMRI IIA IIB Certified) / Weather Proof IP-67
MOC Electronics Enclosure	1) Die Cast Aluminium PU Painted 2) SS316
Process Connection	1) 2” BSP (up to 8 meters) 2) 2.5” BSP (8 to 10 meters)
Process Connection	3) 3” BSP (10 to 15 meters) 4) 4” BSP (15 to 20 meters)
Mounting	Vertical - Top of the tank
Ambient Conditions	Temperature 0 to 70°C / Humidity 5 to 95% non condensing at 25°C
MOC Probe	PVC/PVDF
OPTIONAL: Communication	Application flexibility with HART communication

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications (ULT 200)
Water & Wastewater Treatment	Continuous non-contact depth tracking in raw sewage lift stations, wet wells, storm-water basins, intake pump channels, and treated water clear wells.
ETP / STP Plants	Non-contact level measurement in equalization tanks, primary and secondary clarifiers, aeration basins, and final treated effluent discharge channels.
Infrastructure, Utility & Irrigation	Open-channel flow and level tracking across irrigation canals, distribution weir flumes, ground service reservoirs (GSR), and municipal water balancing tanks.
Chemical, Process & Pharmaceutical	Non-contact liquid level monitoring in corrosive chemical storage, solvent buffer tanks, atmospheric reaction vessels, and neutralization holding pits.
Fertilizer Industry	Continuous non-contact measurement in phosphoric and nitric acid storage tanks, ammonia solution holding vessels, and process condensate ponds.
Food Industry / Dairy & Milk	Hygienic, maintenance-free level tracking in raw water staging tanks, vegetable oil bulk storage, sugar dissolve tanks, and CIP utility holding vessels.
Automation & Manufacturing	Continuous fluid level monitoring in central machine coolant circulation sumps, industrial parts-degreasing tanks, and automated washing stations.
Nuclear Power & Power Generation	Continuous monitoring in raw water storage reservoirs, cooling tower basins, demineralized (DM) water makeup tanks, and drainage trenches.
Steel & Cement Industry	Non-contact level sensing in spray quenching collection sumps, mill cooling water return pits, slurry holding vessels, and plant service water reservoirs.
