DLS 30

Product Description

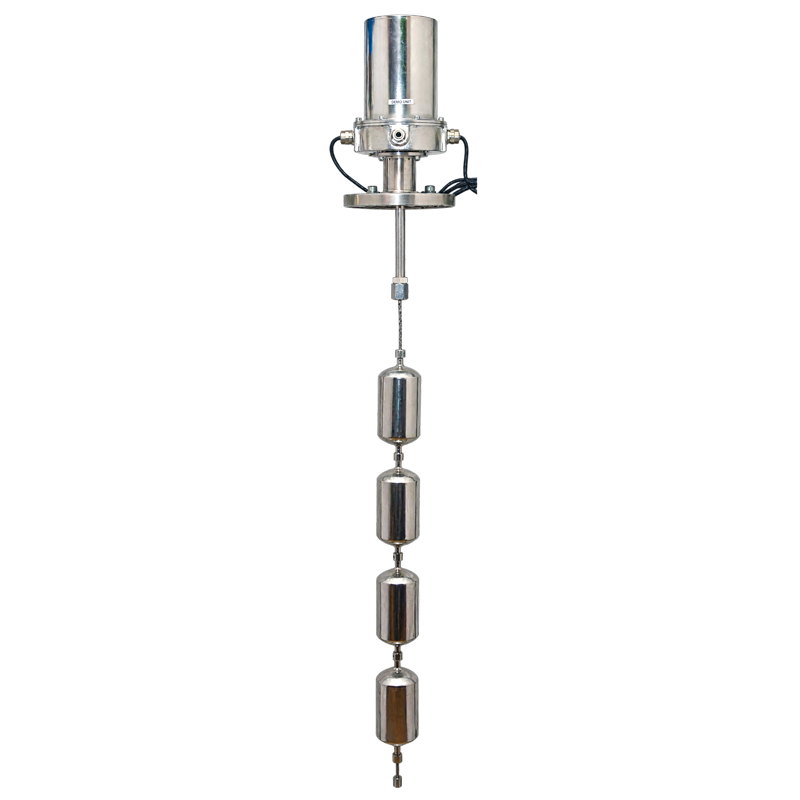

DLS 30 Displacer Type Level Switch is a robust and reliable solution for point-level detection in liquid applications, operating on the Archimedes buoyancy principle. It uses single or split displacers suspended by a wire rope, enabling narrow or wide differential switching based on application requirements. The switch supports site-adjustable up to four switching points with micro switch or hermetically sealed reed switch outputs. Designed for harsh environments, it features a shockproof construction, IP-65 enclosure, and is radiation- and seismically qualified. Available in SS 304 / SS 316 / SS 316L, PP, or PVDF materials, it supports measuring ranges from 1000 mm up to 10,000 mm. With high repeatability, fast response time, and multiple process connection options, the DLS 30 is ideal for demanding industrial-level control applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Primary Sensor

Type	Ultrasonic Contact Type
Actuation Length / Switching level	As per requirement
Output Signal	Current Signal (8mA for normal conditions, 16mA for alarm)
Actuation time	Not more than 0.5 sec
Power Supply	24 VDC
Switching Accuracy	+/- 2mm
Probe MOC	SS-316L
Enclosure Class	IP-65 as per IEC-60529
Mounting Accessories	Provided

Secondary Convertor

Indication	LED Indication for
	1. Healthiness of Switch/failure indication
	2. Power supply on/off indication
Contact output	2 SPDT Relay output
Contact rating	220 V/5A
Contact rating	24 V/1A
Power Supply	220 V AC, 50Hz
Power Consumption	Less than 15 VA
Insulation Resistance	>100MΩ for power supply terminals
Housing Material	SS-316
Enclosure Class	IP-65 as per IEC-60529
Gasket	EPDM / Neoprene or any other material suitable to meet the environmental condition requirements

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications
Water & Wastewater	Monitoring high and low liquid levels in tanks, reservoirs, and treatment systems
Chemical & Petrochemical	Level detection in reactors, storage tanks, and chemical process vessels
Oil & Gas	Level monitoring in storage tanks, separators, and pipelines
Power Generation	Boiler drum, condensate, and cooling tank level detection for process safety
Food & Beverage	Liquid level detection in production lines, tanks, and batch processes
Pharmaceuticals & Biotechnology	Level monitoring in bioreactors, storage tanks, and process vessels
Pulp & Paper Industry	Chemical and water level detection in pulping and bleaching tanks
Marine & Shipbuilding	Fuel, water, and lubrication tank level monitoring
Metals & Mining	Level detection in slurry tanks, storage silos, and process vessels
HVAC & Building Automation	Liquid level monitoring in heating, cooling, and water storage systems
