UAC 100

Product Description

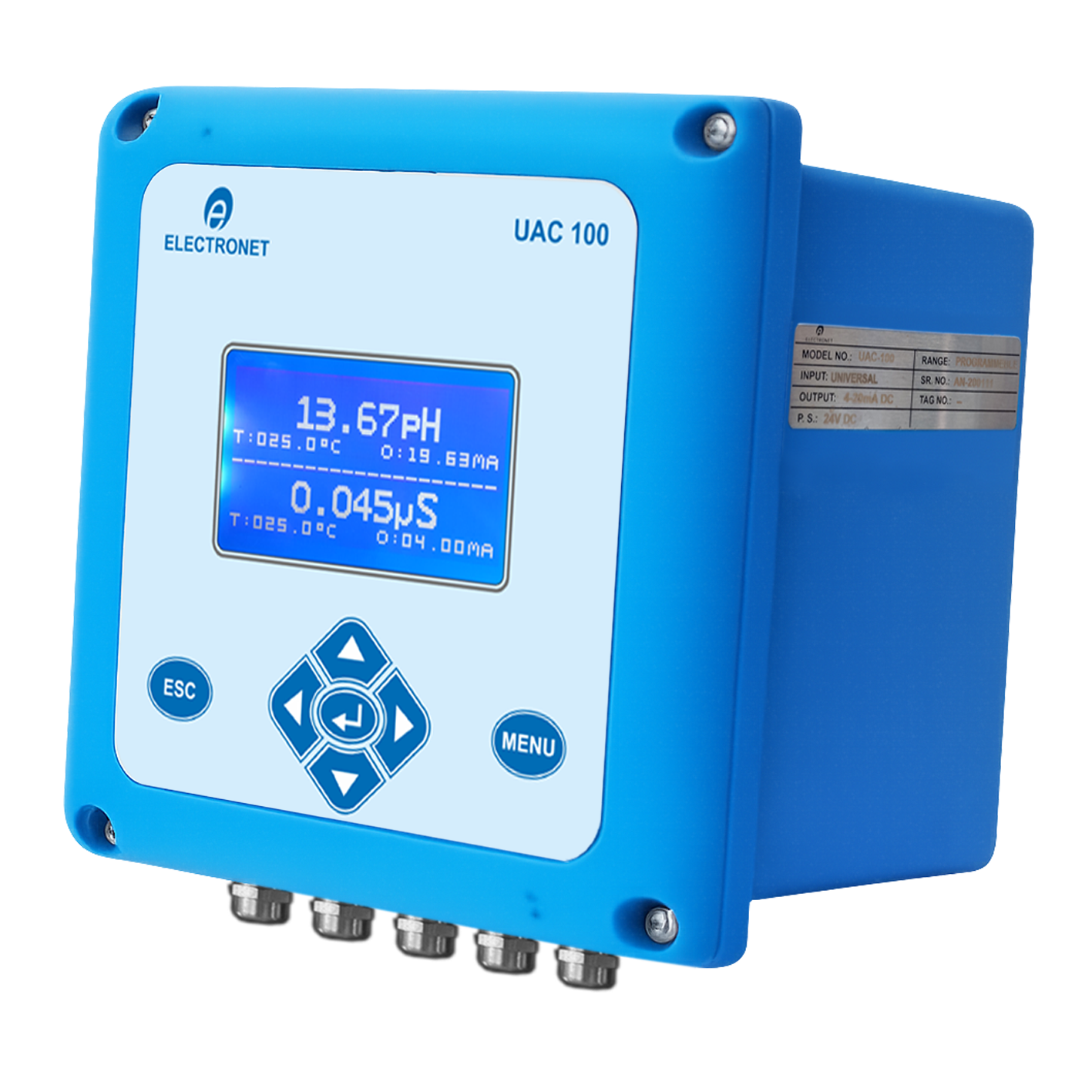

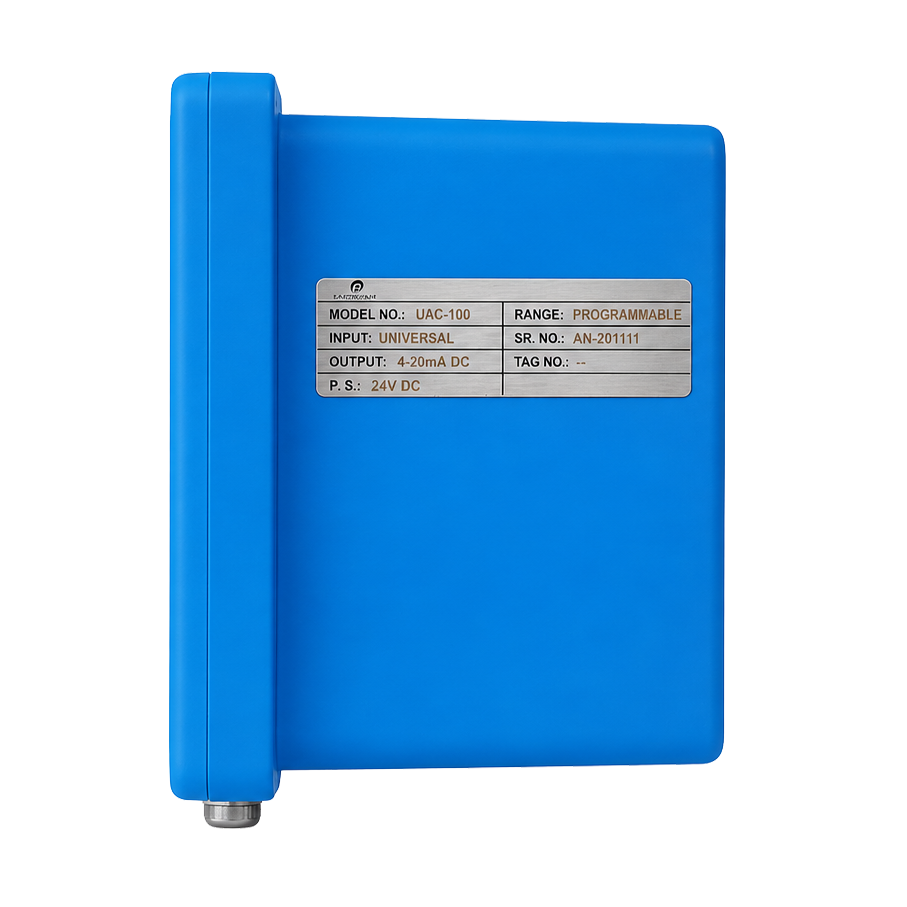

UAC-100 Universal Analytical Controller is a versatile, microprocessor-based analyzer designed for single or dual-channel analytical measurement in industrial and process applications. It supports a wide range of sensor inputs, including pH, ORP, Conductivity, TDS, and Dissolved Oxygen, in any combination, making it a truly flexible solution. The controller features a high-contrast backlit LCD display that shows live measurement values along with additional process parameters. It provides two electrically isolated 4–20 mA outputs, fully scalable and programmable, with optional HART and RS-485 MODBUS RTU communication. Integrated programmable relays, data logging memory, and software calibration enhance control and monitoring capabilities. With auto/manual temperature compensation, fast response time, and IP65 weatherproof enclosure, UAC-100 is ideal for water treatment, chemical, pharmaceutical, and industrial process monitoring applications.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Number of Channel	Single / Dual
Display	LCD Display
Input Source	From pH / ORP / Conductivity / DO Electrode (Compatible to any make of electrode)
Input Range	1) pH: 0 to 14 pH
	2) ORP : -2000 to 2000 mV
	3) Temperature : 0 to 150 °C
	4) DO : 0 to 20.9 ppm
	5) Conductivity : 0.01uS / cm to 10mS/cm
Accuracy	1) pH : ± 0.02pH
	2) ORP : ± 2mV
	3) DO : +/-0.25% of FS
	4) Conductivity : ± 0.25% of F. S.
	5) Temperature : ± 0.25% of F. S.
Power Supply	1) 24 V DC (+/-10%)
Power Supply	2) 90 to 250 V AC, 50Hz
Electronic Enclosure	Weatherproof IP 65
Output	1) 4-20 mA DC, 4-20 mA DC with HART (HART Optional for one channel only)
	2) 1 Relay Output, 2 Relay Outputs
	3) Serial communication RS 485
Power Consumption	Less than 10 VA
Temperature compensation	Through RTD (PT-100)
Temperature Coefficient	0.01% per °C
Response Time	1) pH, 5 sec to 100% of reading
	2) ORP, 5 sec to 100% of reading
	3) Conductivity, 3 sec to 100% of reading
	4) DO, 6 sec to 100% of reading
Isolation	1.4 KV between Input, Output & Power Supply
Bazel Size	155 mm (H) x 155 mm (W) X 126 mm (D)
MOC Electronics Enclosure	Die Cast Aluminium
Cutout	144(H) x 144(W)
Weight	1.5 kg (Approx.)
Mounting	Panel / Pipe
Ambient Conditions	Temperature -20 to 70 °C / Humidity 5 to 95% non condensing

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications
Water & Wastewater	Centralized monitoring and control of multiple analytical parameters (pH, DO, conductivity, ORP, etc.) in treatment plants and effluent systems
Chemical & Petrochemical	Process control and monitoring of multiple chemical parameters for reaction optimisation and safety
Power Generation	Monitoring and control of water/steam quality parameters in boiler feedwater, cooling, and condensate systems
Food & Beverage	Analytical monitoring and control of production water, process liquids, and cleaning systems
Pharmaceuticals & Biotechnology	Centralized monitoring of pH, DO, conductivity, and other parameters in bioreactors, formulation, and process control systems
Pulp & Paper Industry	Multi-parameter monitoring and control in pulping, bleaching, and effluent treatment processes
Marine & Shipbuilding	Monitoring and control of water quality parameters in ballast, cooling, and process systems
Metals & Mining	Monitoring chemical and water quality parameters in process water, slurry, and effluent treatment
HVAC & Building Automation	Monitoring and control of water quality in cooling towers and chilled water systems
Environmental Monitoring	Centralized monitoring of rivers, lakes, and industrial effluent parameters
