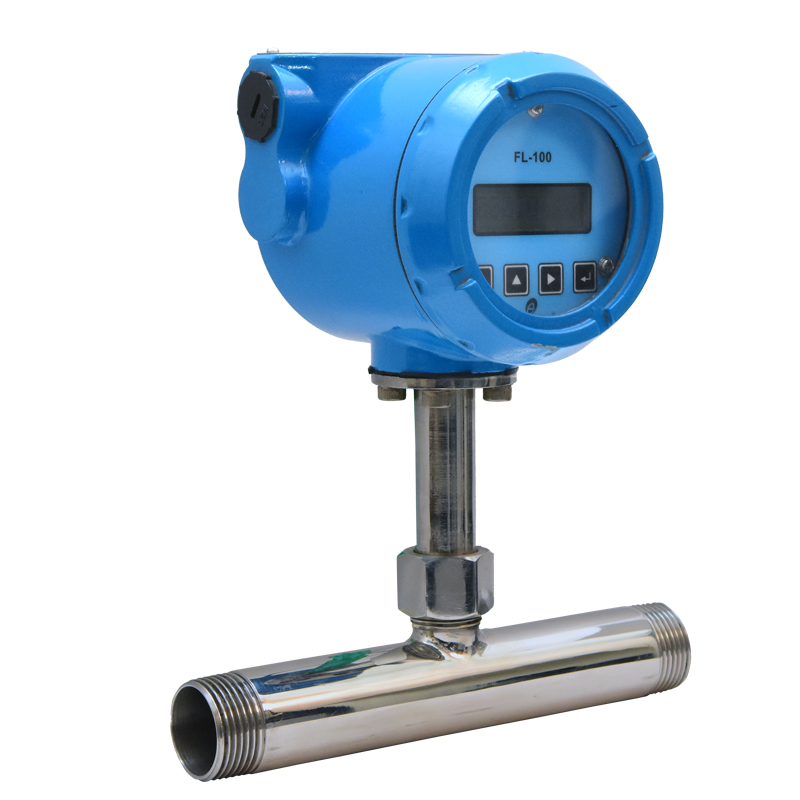

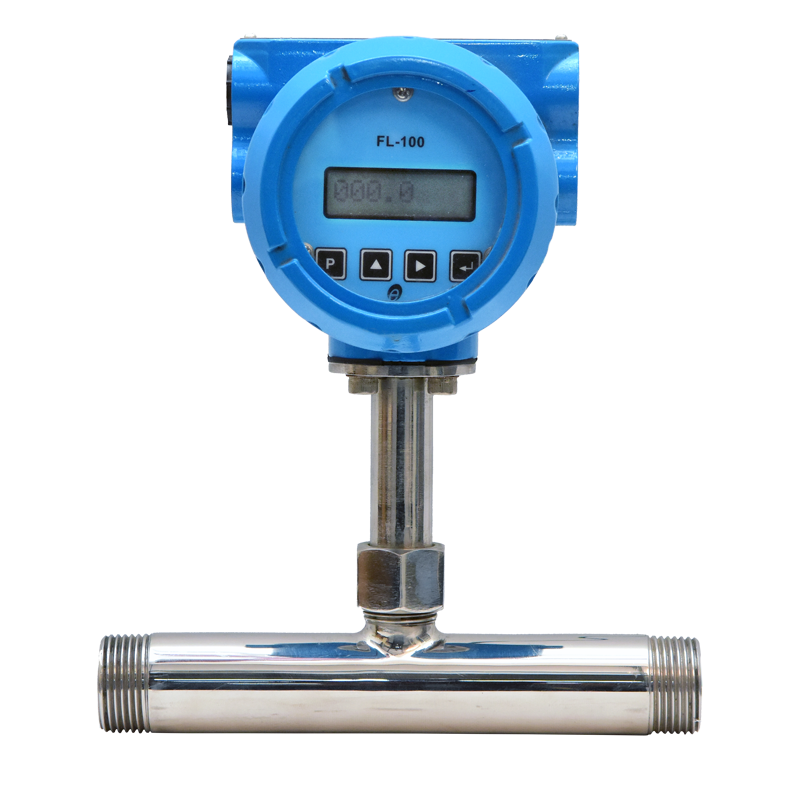

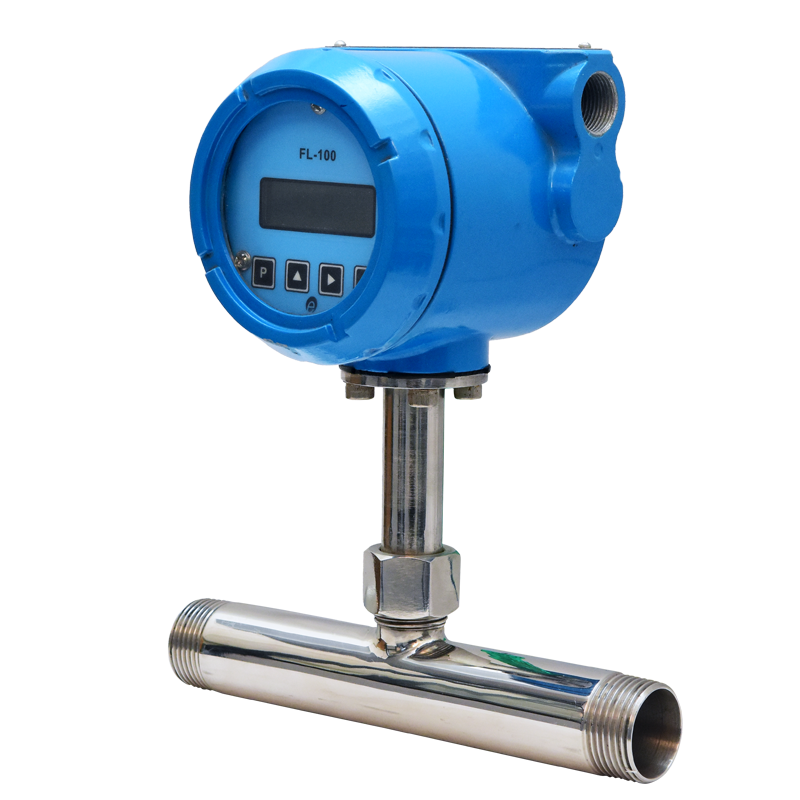

TWO WIRE TURBINE FLOW METER WITH LCD DISPLAY
FL 100
FL-100 Two-Wire Turbine Flow Meter with LCD Display is a compact and cost-effective flow measurement solution designed for accurate measurement of liquid flow in industrial applications. Operating on a turbine flow measurement principle, the rotating rotor generates a frequency signal proportional to flow rate, which is converted into a 4–20 mA output through a reliable 2-wire loop-powered system. The meter is suitable for both conductive and non-conductive liquids and supports line sizes from 15 NB to 200 NB. Featuring a local LCD display for flow rate and totalized flow, it allows easy on-site monitoring. With high accuracy up to ±0.5% of full scale, low pressure drop, and a turndown ratio of 10:1, FL-100 ensures stable performance. Its rugged construction with IP65/IP67 protection and optional flameproof certification makes it ideal for harsh industrial environments.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
Performance Characteristics
|
Media |
Liquids |
|
Line Size |
15 NB to 200 NB |
|
Electronics |
Integral (Local)
/ Remote |
|
Viscosity |
100 cp max |
|
Display |
LCD display - 4 Digit
for Flow Rate
and 8 Digit
for Totalizer Flow (Flow Rate & Totalised Flow will be visible through
Toggle Key) |
|
Remote Electronics Cable |
15 Meters
Max. |
|
Type of Output |
4 to 20mA
DC |
|
Calibration Range |
As per requirement (Factory Calibrated) |
|
Accuracy* |
< ± 0.5% of F. S. ± 5mm /sec for
Velocity Range 0.3 m/s to 6 or 12 m/s |
|
Linearity |
+/- 0.5%
of F. S. |
|
Repeatability |
+/- 0.5%
of F. S. |
|
Temperature Coefficient |
+/- 0.01%
Per °C |
|
Pressure Drop |
Approx. 0.28
kg/cm2@ max. Flow |
|
Turn Down Ratio |
10 : 1 |
|
Process Temperature |
-20 to 120° C max |
|
Process Pressure |
0 to 10 kg/cm2 max |
|
Material of Construction |
1) Bearings - Tungsten Carbide Sleeve / V Jewel |
|
2) Rotor
- SS410 / 17.4 PH |
|
|
3) Shaft
- Tungsten Carbide |
|
|
4) Body
/ Support / Flange - SS |
|
Cable Entry |
M20 X 1.5 (F) / ½” NPT (F) / Pluggable Connector |
|
Power Supply |
24V DC Two Wire
Loop Powered |
|
Power Consumption |
Less than
0.5 VA |
|
Response Time |
Less than
100 mSec. |
|
Electronic Protection Class |
Field Mount
Weather Proof IP-67,
Flameproof (CMRI IIA IIB Certified) |
|
Process Connections |
1) ASA 150 RF, Flanged as per Table
B 16.5 (15 to 200
NB) |
|
2) Threaded (15 to 50 NB) |
|
|
3) SS Tri-Clover (15 to 100 NB) |
|
|
Mounting |
In-Line Horizontal / Vertical |
|
Ambient Conditions |
Temperature -20 to 70°C
/ Humidity 5 to 95% non condensing |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications |
| Water & Wastewater | Flow measurement in pipelines, treatment systems, and pumping stations |
| Chemical & Petrochemical | Monitoring liquid flow in reactors, storage tanks, and process pipelines |
| Oil & Gas | Flow measurement in pipelines, separators, and storage tanks |
| Power Generation | Flow monitoring in boiler feedwater, condensate, and cooling systems |
| Food & Beverage | Liquid flow measurement in production lines, tanks, and batch processes |
| Pharmaceuticals & Biotechnology | Flow monitoring in bioreactors, storage tanks, and process lines |
| Pulp & Paper Industry | Measuring chemical and water flow in pulping, bleaching, and process lines |
| Marine & Shipbuilding | Flow measurement in fuel, water, and lubrication systems |
| Metals & Mining | Monitoring slurry and liquid flow in pipelines and process tanks |
| HVAC & Building Automation | Flow measurement in heating, cooling, and water distribution systems |
