TURBINE FLOW METER - SWITCH
TS 2000-TFM

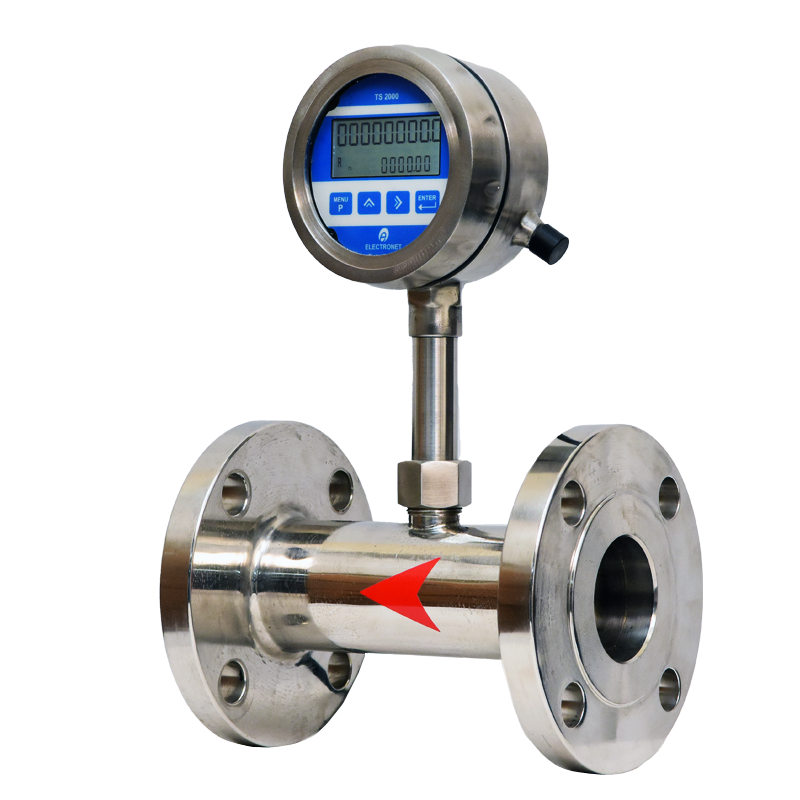

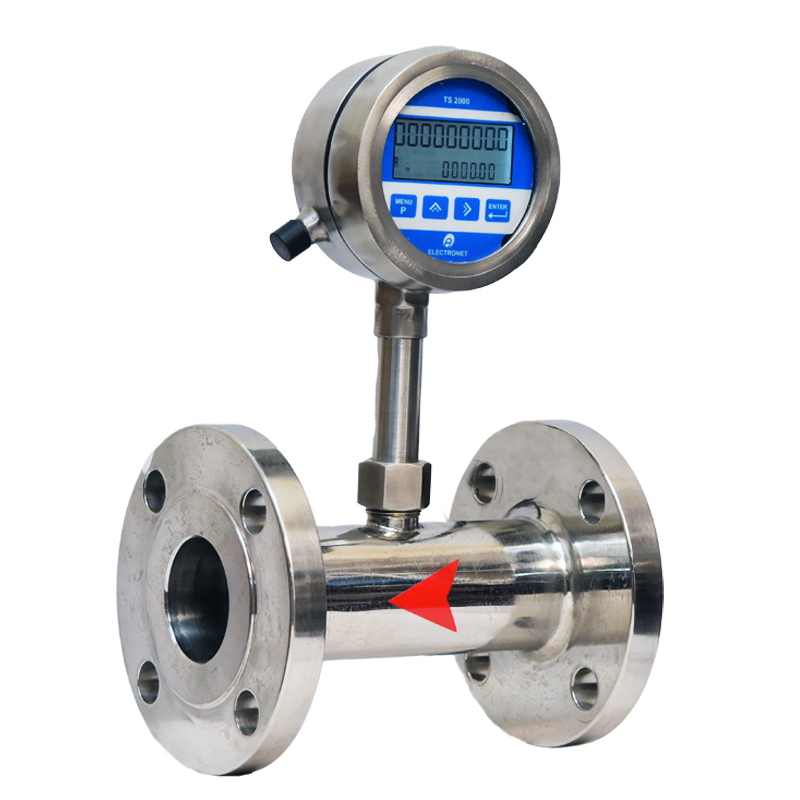

TS2000-TFM Turbine Flow Meter – Switch is a high-performance flow measurement solution designed for accurate monitoring of conductive and non-conductive liquids in industrial applications. Based on the proven turbine flow measurement principle, it delivers reliable flow rate and totalized flow with accuracy up to ±0.5% of full scale. The meter supports line sizes from 15 NB to 200 NB and can be installed in horizontal or vertical pipelines. Featuring a backlit LCD display, SS-316 corrosion-resistant enclosure, and IP68 protection, it ensures dependable operation in harsh environments. TS2000-TFM offers 4–20 mA output, optional pulse output, relay/alarm function, and RS-485 MODBUS RTU communication for seamless automation integration. Its maintenance-free design, fast 1-second response time, and optional integral or remote electronics make it ideal for water, chemical, and process industry applications.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
Performance Characteristics
|
Measuring principle |
Turbine flow
measurement |
|
Media |
Liquid |
|
Viscosity |
100 cp max |
|
Line Size |
15 NB to 200 NB |
|
Mounting Type |
Inline Horizontal / Vertical |
|
Linearity |
+/- 0.5%
of F. S |
|
Repeatability |
+/- 0.5%
of F. S. |
|
Response Time |
1 Sec |
|
Accuracy |
< ± 0.5% of F. S. ± 5mm /sec for
Velocity Range 0.3 m/s to 6 or 12 m/s |
|
Display |
Backlight LCD
- 6 Digit for Flow Rate, 8 Digit for Flow Totalizer |
|
Process temperature |
200°C max |
|
Process pressure |
16 kg/cm²
max |
|
Process Connection |
1) Flanged (15 to 200 NB) 2) Threaded (15 to 50 NB) |
|
3) SS Tri-Clover (15 to 100 NB) 4) SMS
Union (25 to 100 NB) |
|
|
Power Supply |
24V DC |
|
Power consumption |
< 5W |
|
Output 1 |
4 to 20mA |
|
Output 2 |
Pulse - Open Collector Type (Optional) |
|
Alarm or Relay Output |
1 Relay
Output (Optional) |
|
Communication Output |
RS-485 MODBUS
RTU (Optional) |
|
Electronic Protection |
Weather Proof IP-68 |
|
Electronics Location |
Integral / Remote |
|
Remote Cable
Length |
5 mtr. |
|
Flow Tube
Protection |
Weather Proof IP-68 |
|
Connector |
M12 Connector |
|
Material of Construction |
1) Bearings - Tungsten Carbide Sleeve / V Jewel |
|
2) Rotor
- SS 410 / 17.4
PH / Plastoferrite |
|
|
3) Shaft
- Tungsten Carbide |
|
|
4) Body
/ Support / Flange - SS |
|
|
Electronics Enclosure |
SS-316 |
|
Ambient Temperature |
20°C to 70°C |
|
Ambient Humidity |
5 to 95%
non-condensing |
|
Temperature Coefficient |
+/- 0.01%
Per °C |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications |
| Water & Wastewater | Flow monitoring in pipelines, treatment plants, and pumping stations with switch output for alarms or control |
| Chemical & Petrochemical | Measuring liquid flow in reactors, storage tanks, and process pipelines with switch output for safety/control |
| Oil & Gas | Flow measurement in pipelines, separators, and storage tanks with alarm or control functionality |
| Power Generation | Flow monitoring in boiler feedwater, condensate, and cooling systems with switch output for process protection |
| Food & Beverage | Liquid flow measurement in production lines, tanks, and batch processes with switch for automated control |
| Pharmaceuticals & Biotechnology | Flow monitoring in bioreactors, storage tanks, and process lines with switch output |
| Pulp & Paper Industry | Measuring chemical and water flow in pulping, bleaching, and process lines with switch for process safety |
| Marine & Shipbuilding | Flow measurement in fuel, water, and lubrication systems with alarm/control output |
| Metals & Mining | Flow monitoring in slurry pipelines, storage tanks, and process systems with switch functionality |
| HVAC & Building Automation | Flow measurement in heating, cooling, and water distribution systems with switch output for system control |
