TWO WIRE SMART TEMPERATURE TRANSMITTER
TT 04H

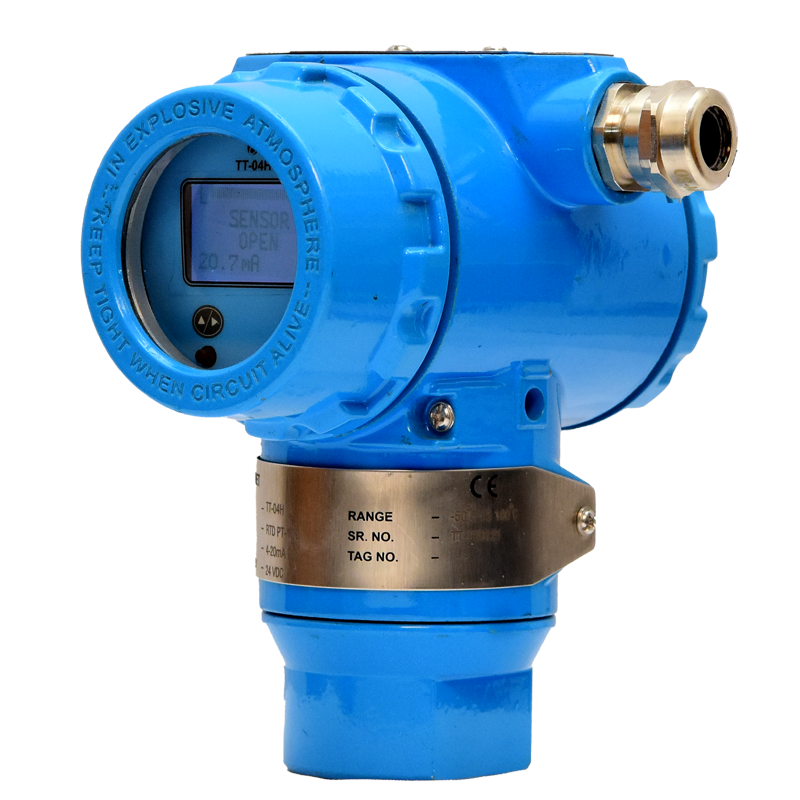

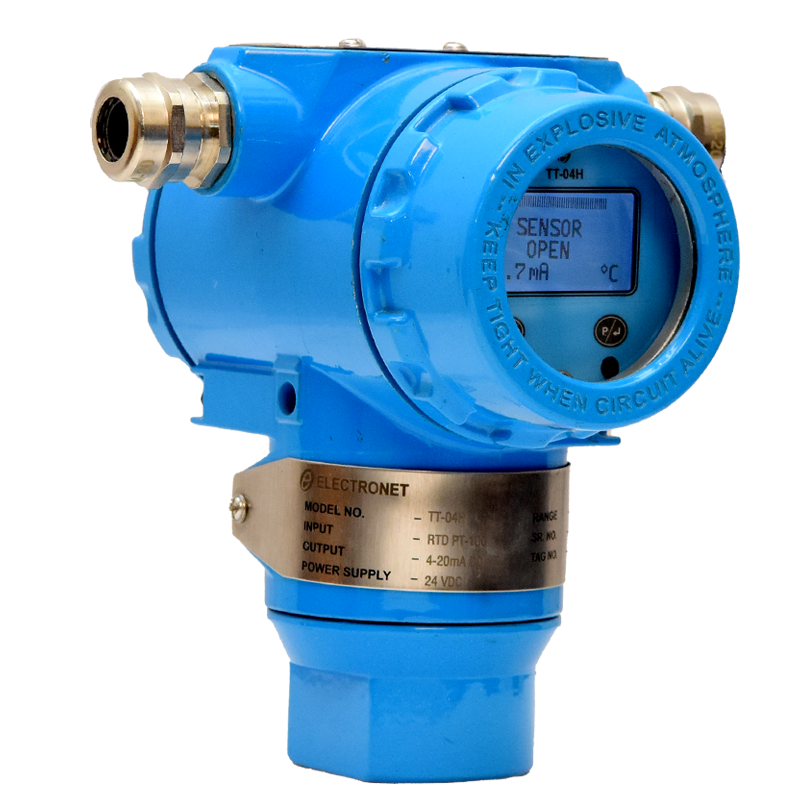

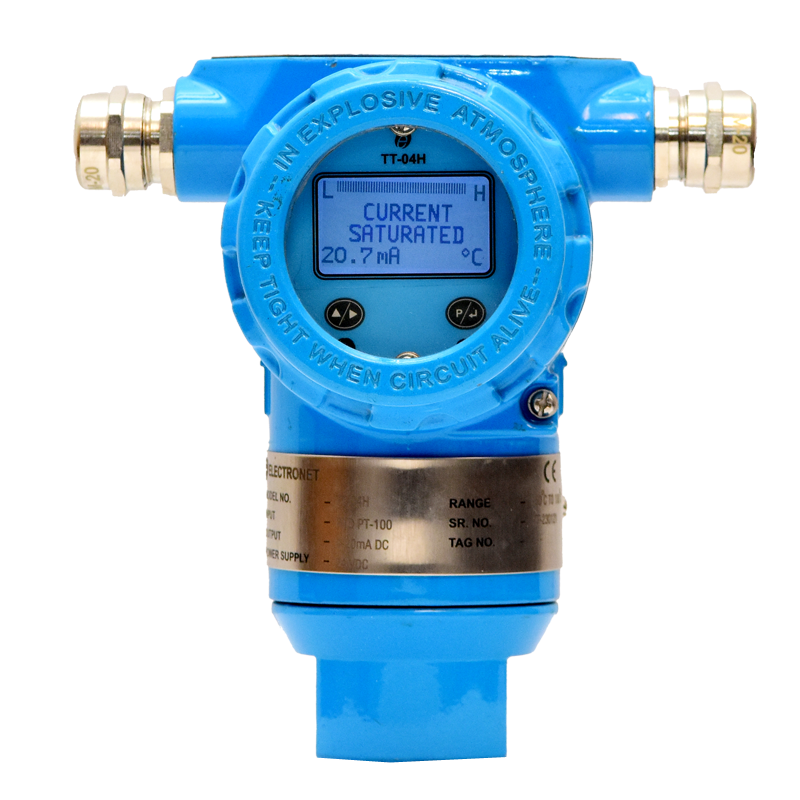

TT-04H Smart Temperature Transmitter is a high-performance industrial transmitter designed for precise temperature measurement and signal conversion. It accepts inputs from RTD (PT-100 / PT-200), all standard thermocouples (B, E, J, K, R, S, T), resistance, and millivolt signals, offering wide application flexibility. The transmitter provides a 4–20 mA output with HART communication and features a backlit LCD display for online temperature indication and local operation. With ±0.1% full-scale accuracy, fast response time (<300 ms), and software calibration, it ensures reliable and stable performance. The unit supports single or dual sensor inputs, sensor redundancy, and advanced functions such as ΔT and peak value measurement. Housed in a die-cast aluminium or SS-316 enclosure with IP-67 protection and ATEX (Ex d) certification, the TT-04H is suitable for harsh and hazardous industrial environments.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
Performance Characteristics
|
Type of Input |
1) RTD (PT-100/PT-200) |
2)
Thermocouple (B, E, J, K, R, S, T) |
|
3) Resistance |
4) millivolt (0 to 100 mV) |
|
|
Output |
4-20 mA with
HART |
|
|
Display |
LCD Display |
|
|
Isolation |
1 kV between Input, Output &
Power Supply |
|
|
Accuracy |
±
0.1% F. S |
|
|
Power Supply |
24V DC Two
Wire Loop Powered |
|
|
Power Consumption |
< 50 mW |
|
|
Response Time |
< 300 mSec |
|
|
Temperature Coefficient |
± 0.01% per °C |
|
|
MOC Electronics Enclosure |
Die Cast Aluminum / SS316 |
|
|
Ambient Conditions |
Temperature : -20
to 70 °C, Humidity : 5 to 95% non condensing |
|
|
Electrical Connection |
½” NPT (F) / M20 X
1.5 (F) / DIN
43650 Connector |
|
|
Mounting |
DIN Rail, Direct
Line Mount &
Pipe Mount |
|
|
Calibration |
Software calibration |
|
|
Turn-on Time |
Less than 5
seconds |
|
|
Power Supply Effect |
Less than ±0.005% of span per
volt |
|
|
Surge Protection |
In-built |
|
|
EMC |
EMC compliance with
IEC-61000-4-3 & IEC-61000-4-6 |
|
|
Repeatability |
±0.1% |
|
|
Linearity |
±0.05% of Full Scale |
|
|
Stability |
±0.2% of URL / year |
|
|
Reverse Polarity |
In-built provided |
|
|
Self Diagnosis |
Sensor open indicator |
|
|
Certification |
| |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications (TT 04H) |
| Chemical / Process / Pharmaceutical Industry | HART-protocol smart temperature telemetry and sensor drift diagnostics for batch chemical reactors, solvent recovery distillation towers, and pharmaceutical sterile process loops. |
| Fertilizer Industry | Smart temperature monitoring across ammonia synthesis converters, nitric acid absorption columns, and bulk fertilizer granulation dryers with remote calibration access. |
| Water and Wastewater Treatment Industry | Precision thermal monitoring on anaerobic sludge digester heating systems, thermal effluent discharge compliance monitoring, and heavy pump bearing heat dissipation. |
| Food Industry / Dairy and Milk | High-precision digital temperature transmission on milk pasteurizer holding loops, aseptic beverage sterilizers, Clean-in-Place (CIP) recirculation systems, and yeast tanks. |
| Automation Industry / Manufacturing Industry | Continuous temperature feedback for hydraulic power pack reservoirs, automated composite curing ovens, robot gearbox thermal tracking, and machine spindle monitoring. |
| Oil and Gas Industry / Petrochemical Industry | HART-communicating temperature telemetry across crude oil preheat trains, gas compression intercoolers, flare knock-out drums, and fuel pipeline manifolds. |
| Nuclear Power Generation Industry / Power Industry | Critical temperature telemetry for boiler steam lines, feedwater preheaters, generator stator windings, condenser hotwells, and turbine bearing lubrication returns. |
| Steel Industry / Cement Industry | Continuous thermocouple signal conversion on blast furnace cooling systems, continuous casting roll bearings, cement kiln precalciner cyclone ducts, and clinker coolers. |
| Textile Industry | Precision temperature loops for yarn dyeing kiers, fabric stenter drying frames, steam heat-recovery exchangers, and finishing chemical preparation tanks. |
| HVAC Industry / FMCG Industry |
