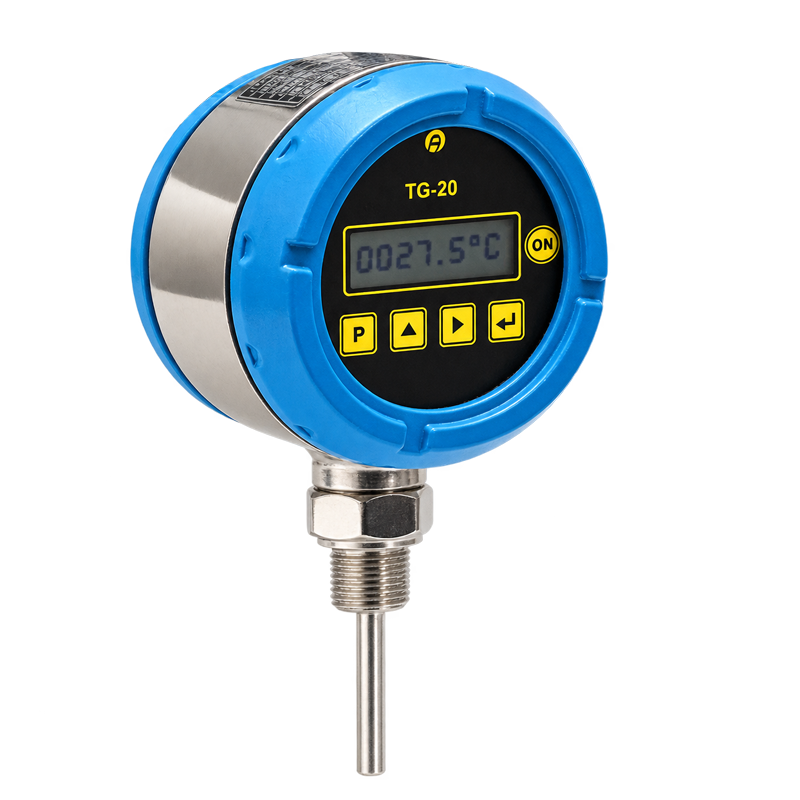

BATTERY OPERATED TEMPERATURE GAUGE
TG 20
TG-20 Digital Temperature Gauge is a reliable and cost-effective instrument designed for fast, easy, and trouble-free temperature monitoring in industrial and laboratory applications. It supports RTD (Pt-100 / Pt-200) and thermocouple (J & K) inputs, providing high accuracy and stable performance. A clear LCD display with auto display shut-off helps conserve battery power and ensures long-lasting operation. The gauge can be supplied with local or remote sensors, offering flexible installation options. Features such as unit conversion (°C / °F / °K), display lock, and fast response time (<500 ms) enhance usability. Housed in a weatherproof IP65 / IP67 enclosure, the TG-20 is ideal for harsh industrial environments.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
|
Type of Input |
1) RTD 2) Thermocouple (J & K) |
|
3) Resistance 4) millivolt (0 to 100 mV) |
|
|
Sensor Type |
1) RTD PT-100, PT-200 |
|
2) Thermocouple (J & K) |
|
|
Temperature Sensor Immersion Length |
25 mm, 100
mm, 300 mm, 500 mm |
|
Range |
As per Input selection |
|
Display |
LCD Display |
|
Accuracy |
+/-
0.25% of F.S for TC Input |
|
+/- 0.1%
of F.S for
RTD Input |
|
|
Process Pressure |
100 Bar max |
|
Display Lock |
Display can be made
ON by pressing push button on Front Fascia |
|
Display remain ON for 20 sec &
then it will get OFF |
|
|
Power Supply |
Battery Operated |
|
Battery Life |
With Backlight : 1500 hrs
& Without Backlight : 2000 hrs continuous operation |
|
Response Time |
< 500 mSec |
|
Temperature Coefficient |
+/- 0.01% per °C |
|
Enclosure |
SS316 / Die
Cast Aluminium |
|
Electronics Protection Class |
Field Mount Weather
Proof IP65 |
|
Dimensions |
100 mm (Diameter) x 55 mm / 140 mm (Depth) |
|
Mounting |
2 Inch Pipe
Mount, Direct Line
Mount |
|
Process Connection |
½” BSP (M)
Standard / (other
on request) |
|
Weight |
1 Kg |
|
Ambient Conditions |
Temperature -20 to 70°C / Humidity 5 to 95% non condensing |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications (TG 20) |
| Chemical / Process / Pharmaceutical Industry | Direct digital temperature readout on reactor vessel jackets, heat exchange circuits, solvent recovery units, and chemical storage tanks. |
| Fertilizer Industry | Field temperature indication on ammonia synthesis loop coolers, granulation drying air ducts, and scrubbing liquor headers. |
| Water and Wastewater Treatment Industry | Monitoring influent/effluent process temperatures, anaerobic digester sludge heating circuits, and chemical preparation tanks. |
| Food Industry / Dairy and Milk | Digital visual temperature tracking on pasteurizers, milk chiller tanks, Clean-in-Place (CIP) rinse headers, and syrup blending vessels. |
| Automation Industry / Manufacturing Industry | Local process temperature monitoring for hydraulic reservoir tanks, central lubrication systems, and machine tool cutting fluid tanks. |
| Oil and Gas Industry / Petrochemical Industry | Field dial temperature reading on crude oil preheaters, lube oil cooling consoles, separator drums, and fuel transfer lines. |
| Nuclear Power Generation Industry / Power Industry | Local thermal tracking on turbine bearing cooling oil, auxiliary condenser cooling water, deaerator headers, and generator stator coolant circuits. |
| Steel Industry / Cement Industry | Digital temperature readout on blast furnace cooling jacket lines, rolling mill bearing lube reservoirs, and cement kiln clinker cooler air streams. |
| Textile Industry | Field temperature verification on dye kiers, yarn steaming chambers, washing baths, and stenter heat-setting circulating air channels. |
| HVAC Industry / FMCG Industry |
