Product Description

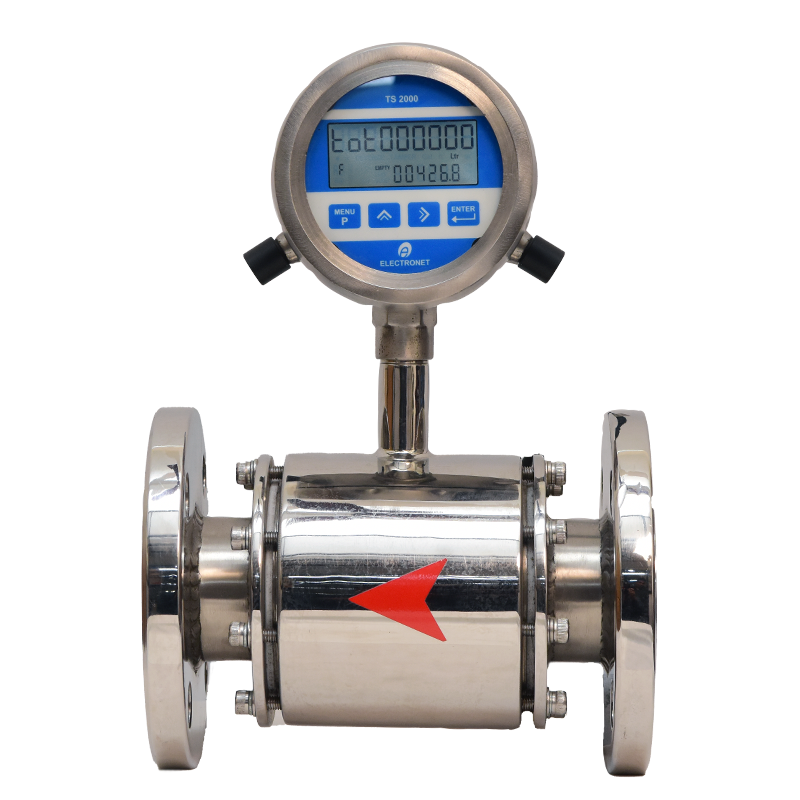

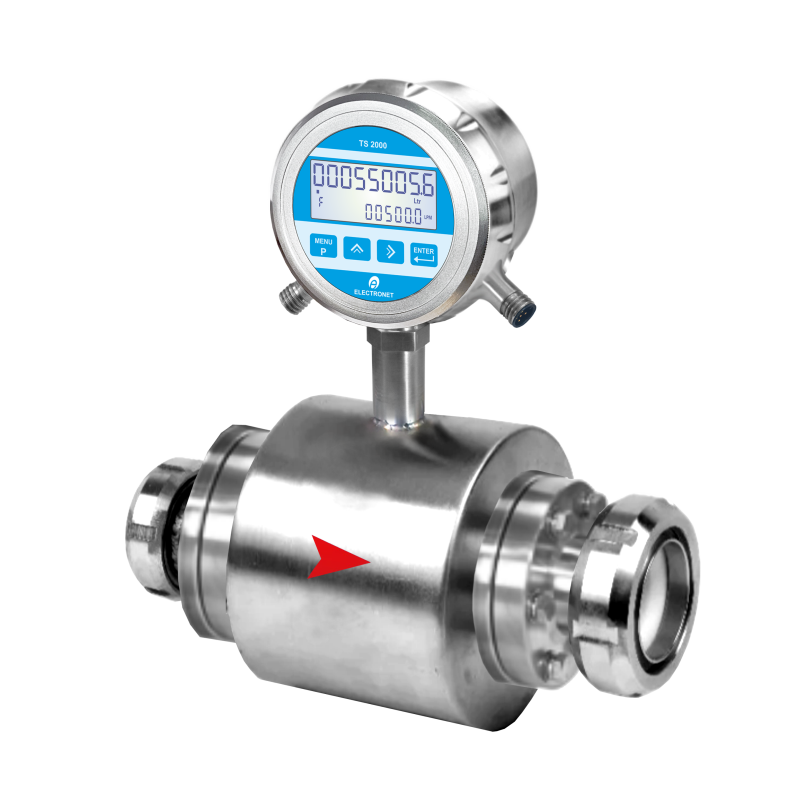

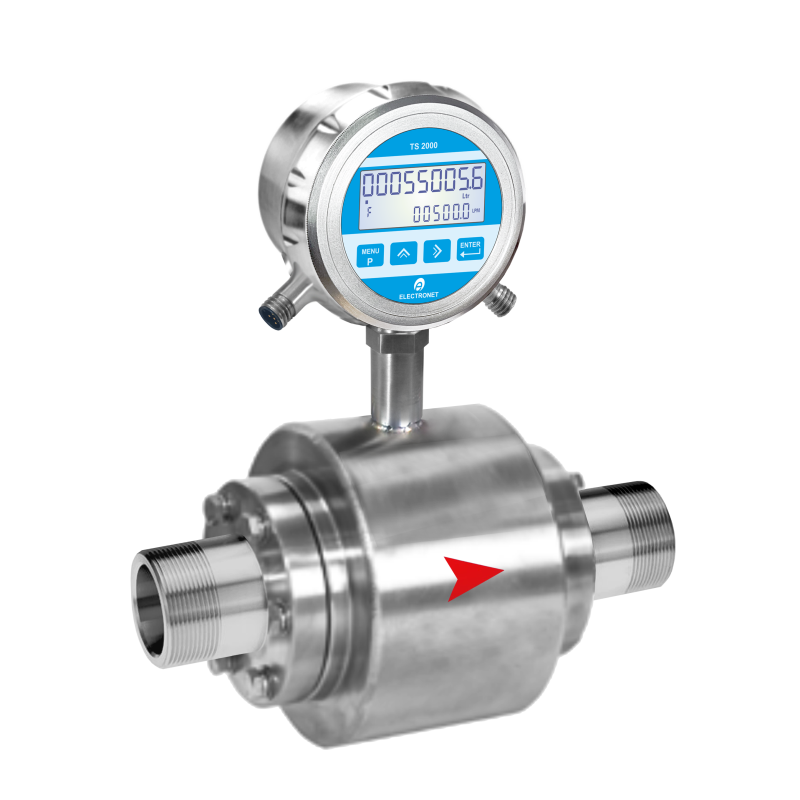

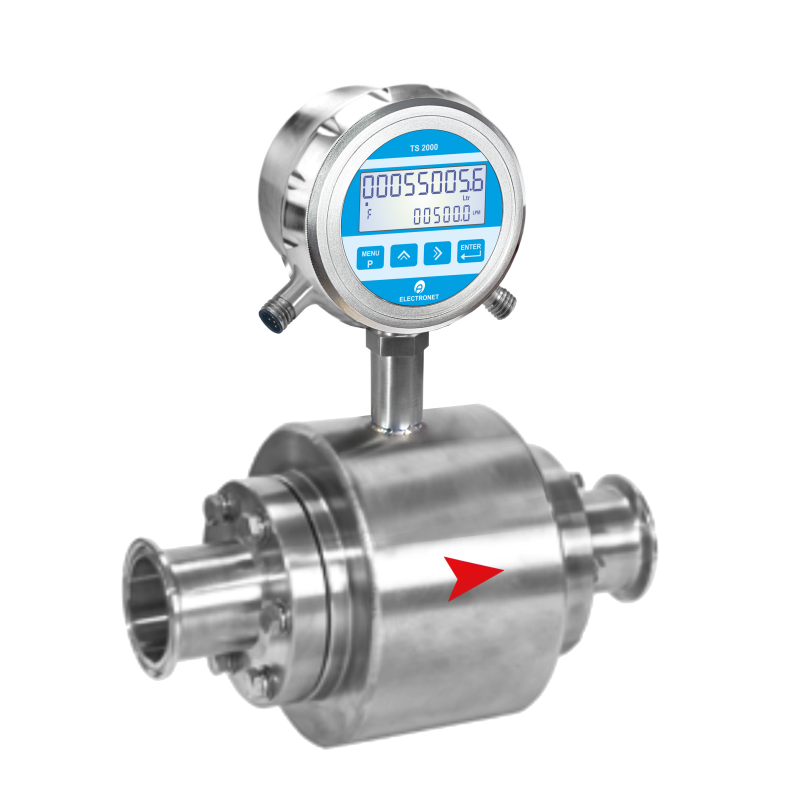

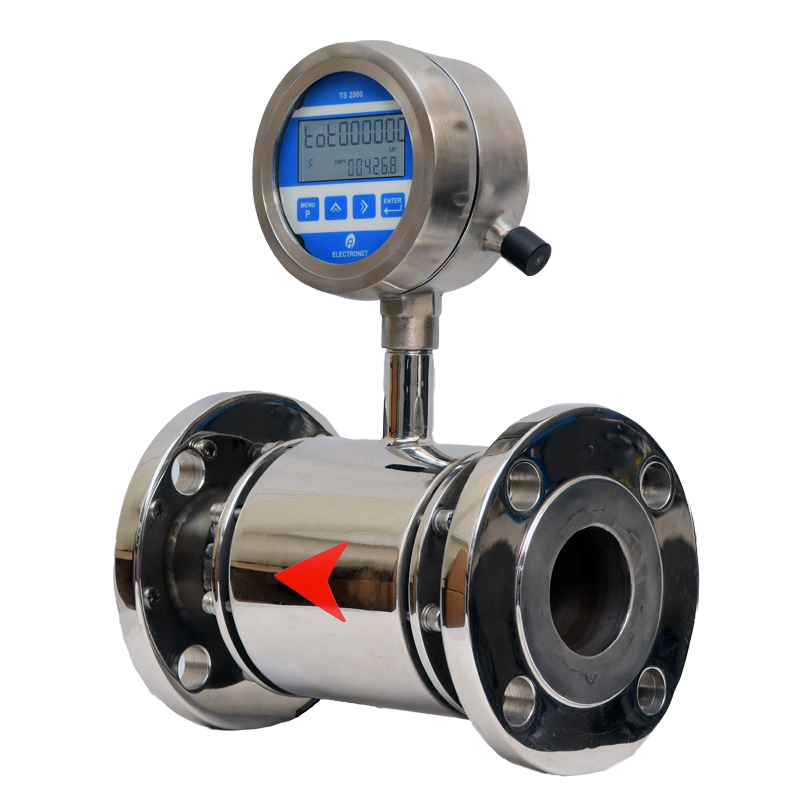

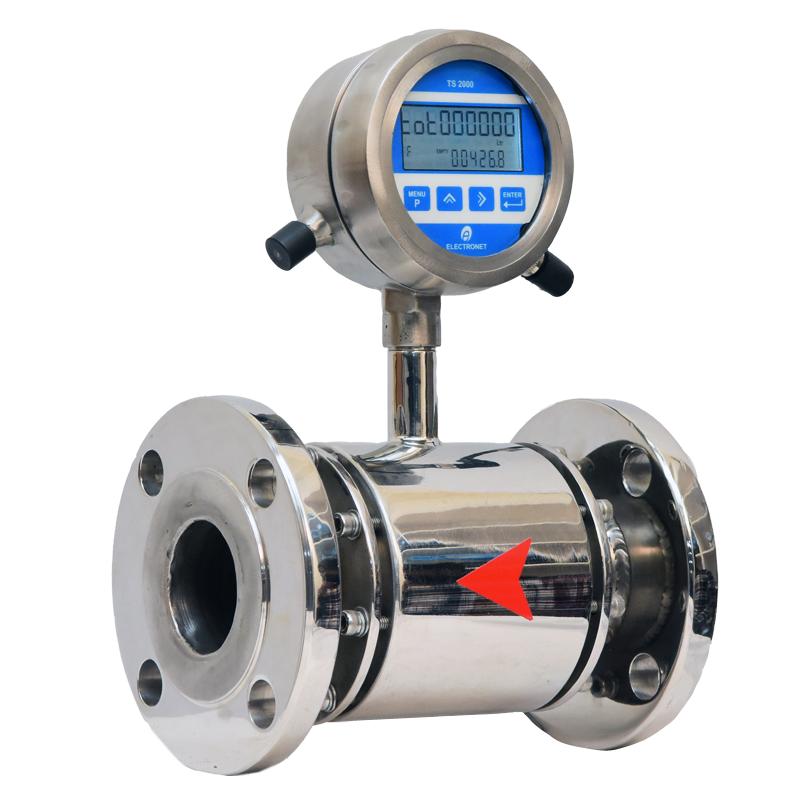

TS 2000-CP Compact Electromagnetic Flow Meter is a full-bore, high-precision flow measurement solution designed for conductive liquids in compact pipeline installations. Engineered with robust SS-316 construction, SS-316L electrodes, and PTFE / PEEK lining, it ensures excellent corrosion resistance and long service life. With IP68 protection for both sensor and electronics, the TS 2000-CP delivers reliable performance even in submerged and harsh industrial environments. It supports line sizes from 08 NB to 100 NB and offers accuracy up to ±0.5% of measured value. Multiple process connection options—including threaded, flanged, SMS union, and tri-clover—provide installation flexibility. Featuring a local LCD display, fast response time, and optional RS 485(MODBUS RTU ) communication, TS 2000-CP is ideal for chemical, pharmaceutical, and process control applications. This flow meter is also having a switch contact output for control /alarm indication.

Product Parameters

Configure the transmitter and electronics based on application, environment, and compliance requirements.

Performance Characteristics
Measuring principle	Electromagnetic flow measurement
Media	Liquid (Conductive)
Conductivity	> 5 µS/cm
Viscosity	200 cp max
Line Size	08 NB to 100 NB
Accuracy	± 0.5% of M.V.

Process Conditions
Response Time	1 Sec
Display	Backlight LCD - 6 Digit for Flow Rate, 8 Digit for Flow Totalizer
Process temperature	200°C max
Process pressure	16 kg/cm²

Process Connection
Mounting Type	Inline Horizontal / Vertical
Process Connection	Flanged / Threaded / SMS Union / Tri-clover

Ambient conditions
Temperature	20°C to 70°C
Humidity	5 to 95% non-condensing

Output Signal
Output 1	4 to 20mA
Output 2	Pulse - Open Collector Type (Optional)
Alarm or Relay Output	1 Relay Output (Optional)
Communication Output	RS-485 MODBUS RTU (Optional)

Protection Class
Electronic Protection	Weather Proof IP-68
Sensor/Flow Tube Protection	Weather Proof IP-68

Electrical Connection
Connector	M12 Connector

Power supply
Voltage supply range	18-30 V DC
Power consumption	< 5 VA

Material of Construction
Electrode Materials	SS-316L
Wetted Parts	SS-316
Sensor Assembly	SS-316
Electronics Enclosure	SS-316

Need more technical details?

Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.

Download Catalogue Enquire Now

Applications

Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.

Industry	Key Applications
Water & Wastewater	Monitoring conductive liquid flow in treatment plants, pumping stations, and pipelines with switch output for alarms/control
Chemical & Petrochemical	Flow measurement of process liquids in reactors, storage tanks, and pipelines with switch functionality for process safety
Food & Beverage	Flow measurement in production lines, tanks, and process liquids with switch output for automated control
Pharmaceuticals & Biotechnology	Monitoring process liquids in bioreactors, formulation, and CIP systems with switch functionality
Pulp & Paper Industry	Measuring water, chemicals, and slurry flow in pulping, bleaching, and process lines with switch output
Power Generation	Flow measurement in cooling water, boiler feedwater, and condensate pipelines with switch functionality
Marine & Shipbuilding	Monitoring conductive liquid flow in fuel, water, and process pipelines with alarm/control output
Metals & Mining	Measuring slurries and chemical flows in pipelines with switch output for process control
HVAC & Building Automation	Flow measurement in chilled water, heating, and cooling circuits with switch functionality
Environmental Monitoring	Flow measurement of treated water, effluents, and process discharges with switch output
