ELMAG 400-Integrated Multivariable Flow and Water Quality Monitor
INTEGRATED MULTIVARIABLE FLOW AND WATER QUALITY MONITOR
ELMAG 400

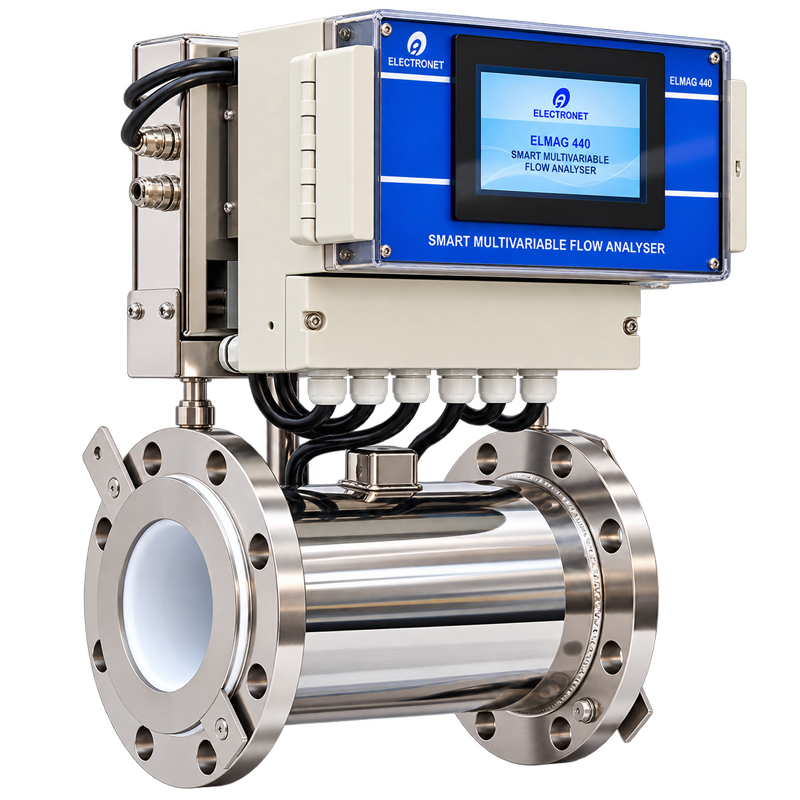

The ELMAG 400 is an advanced Integrated Multivariable Flow and Water Quality Monitor designed to provide comprehensive monitoring of both flow and water quality through a single intelligent instrument. By combining electromagnetic flow measurement with multiple analytical sensors, it eliminates the need for several individual instruments, reducing installation costs, maintenance, and system complexity.

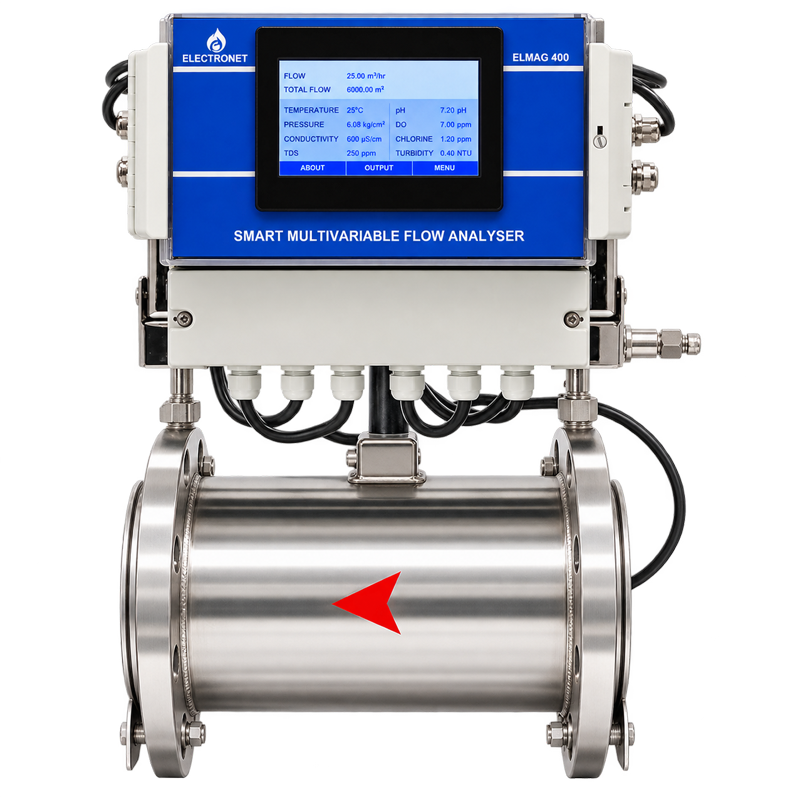

The ELMAG 400 simultaneously measures Flow, Velocity, Pressure, Temperature, Conductivity, TDS, pH, Dissolved Oxygen (DO), Chlorine, and Turbidity, delivering accurate, real-time process data for effective monitoring and control. Built on the proven electromagnetic flow measurement principle, the full-bore design ensures zero pressure loss, high measurement stability, and reliable performance in conductive liquids.

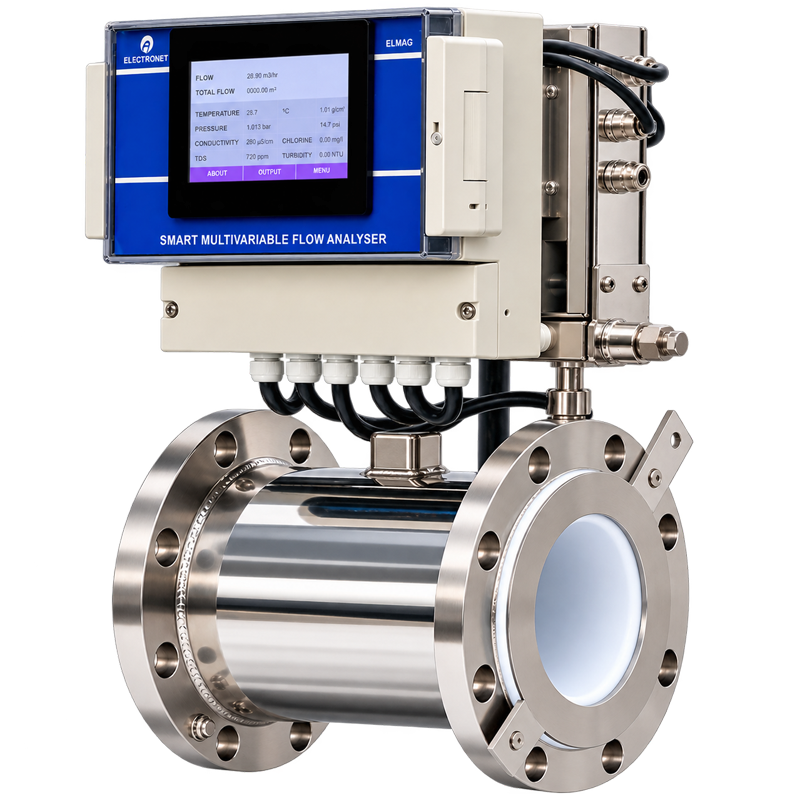

Designed for demanding industrial and municipal applications, the instrument features a touchscreen display, integrated data logger, and support for SCADA, GSM, GPS, and Modbus RTU communication, making it ideal for modern automation and remote monitoring systems. The replaceable analytical sensor design minimizes maintenance while maximizing service life.
Manufactured and calibrated in an ISO/IEC 17025 NABL-accredited calibration laboratory, the ELMAG 400 delivers dependable accuracy and repeatability for continuous process monitoring. It is suitable for water treatment plants, sewage treatment plants, drinking water systems, industrial water monitoring, smart city projects, process industries, power plants, pulp & paper, chemical, and pharmaceutical industries.
The ELMAG 400 is the ideal solution for organizations seeking a reliable, intelligent, and cost-effective instrument for integrated flow and water quality monitoring.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
| Parameter | Specification |
|---|---|
| Measuring Parameter | Pressure, Flow, Velocity, Temperature, Conductivity / TDS, pH, DO |
| Measurement Range | |
| Pressure | 0 to 20 kg/cm² Gauge |
| Flow | m³/hr, MLD as per Line Size |
| Velocity | 0.3 m/s to 6 m/s |
| Temperature | 0 to 100°C |
| Conductivity / TDS | 10 to 10000 microsiemens / 0 to 5000 mg/litre |
| pH | 0 to 14 |
| DO | 0 to 20 ppm |
| Process Conditions | |
| Ambient Temperature | 0 to 65°C |
| Storage Temperature | 0 to 65°C |
| Process Temperature | -20 to +200°C |
| Pressure Range | 0 to 20 kg/cm² Gauge |
| Electrical Conductivity | > 10 microsiemens/cm |
| Permissible Solid Content | < 20% (Size maximum 100 micron) |
| Density | < 1.15 kg/m³ |
| Measurement Accuracy | |
| Temperature | ±0.25% of F.S. |
| Conductivity | ±0.25% of F.S. |
| Pressure | ±2% of F.S. |
| Flow Accuracy | Accuracy of Fully Filled Pipe ±0.5% of F.S. + (±5 mm per sec.) for Velocity 0.3 m/s to 6 m/s |
| Laboratory Reference Conditions | |
| Media | Water |
| Temperature | 15 to 40°C |
| Up Stream Length | 10D (upto 1000 NB line size) |
| Down Stream Length | 5D (upto 1000 NB line size) |
| Operating Pressure | 0.1 to 3.6 Bar Gauge |
| Power Supply | 24V DC / Rechargeable Battery Operated |
| Solar Powered | 20 Watt, 24V DC |
| Power Consumption | < 10 VA |
| Electrical Output 1 | 4 to 20 mA Selectable for Flow, Velocity, Pressure, Temperature, Conductivity, TDS, pH, DO, Chlorine & Turbidity |
| Communication Output | RS-485 (MODBUS RTU) / GSM / GPRS / LORAWAN |
| Pulse Output | Open Collector for Flow Measurement |
| Material of Construction | |
| Lining | Neoprene / Ebonite Rubber, PFA, PTFE, PU, CERAMIC |
| Flange | MS, CS, SS316, SS304 |
| Electrode | SS316L, Hastelloy C, Platinum, Tantalum, Titanium |
| Coil Housing | SS304 |
| Isolation | 1.4 KV between Input, Output & Power Supply |
| Inline Pressure Sensor | Pressure Sensor 16 kg/cm² |
| Response Time | Less than 1 Sec. |
| Electronics | Integral (Local) / Remote |
| Electronic Protection Class | Field Mount Weather Proof IP-67 (NEMA 6) |
| Sensor / Flow Tube Protection | IP-67, IP-68 |
| Process Connections | ANSI 150 Flanged, as per Table B16.5 (Others on Request) |
| Mounting | In-Line Horizontal / Vertical |
| Ambient Conditions | Temperature -20 to 70°C / Humidity 5 to 95% non-condensing |
| Process Pressure | 16 kg/cm² max (Higher on request) |
| Process Temperature | -20 to 85°C max for Rubber Lining & -20 to 220°C for PTFE & PFA Lining |
| Linearity | ±0.5% of M.V. |
| Temperature Coefficient | ±0.05% per °C |
| Repeatability | ±0.2% of M.V. |
| Engineering Unit | User Programmable (m³/hr by default) |
| Calibration | Wet Calibrated at IEC/ISO/EN17025 Accredited Calibration Laboratory |
| Accuracy | < ±0.5% of M.V. + (±5 mm/sec) for Velocity Range 0.3 m/s to 6 or 12 m/s |
| Cell Constant | 1 / 0.1 / 0.01 |
