ELMAG 200 NSR (0D)-Multivariable Electromagnetic Flow Meter
MULTIVARIABLE ELECTROMAGNETIC FLOW METER

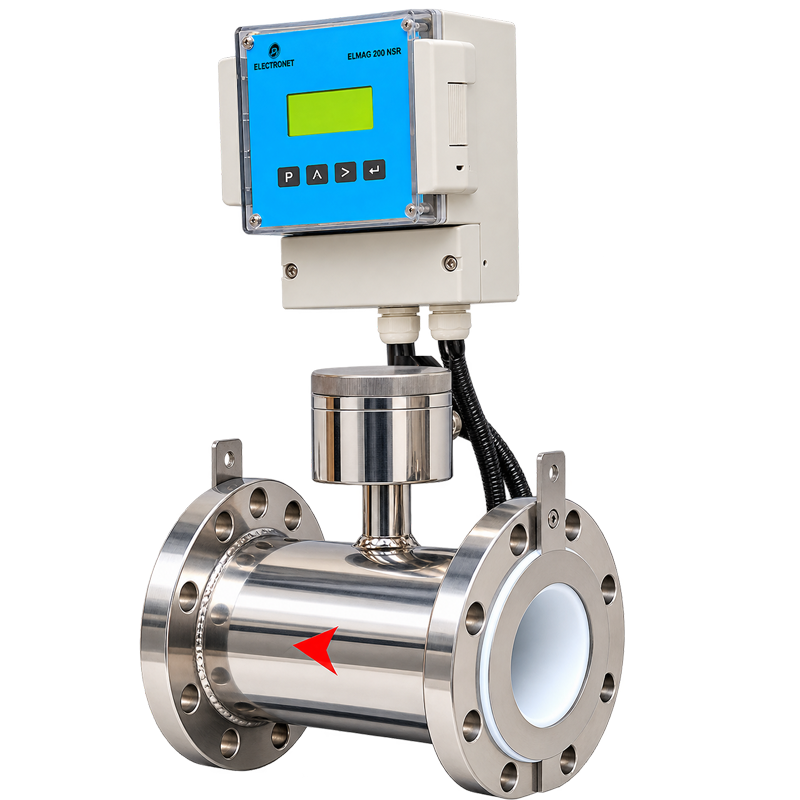

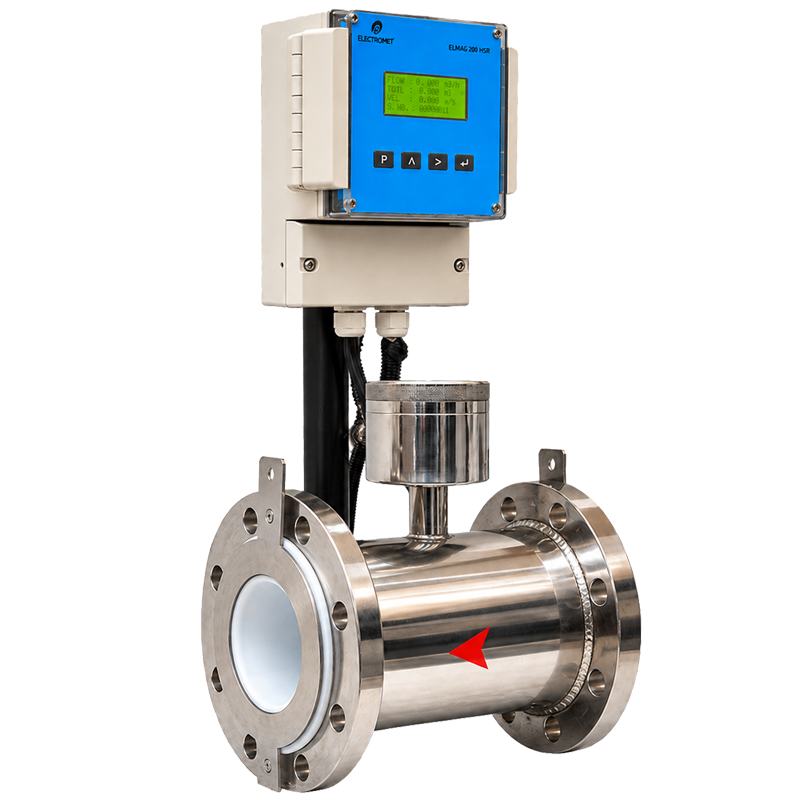

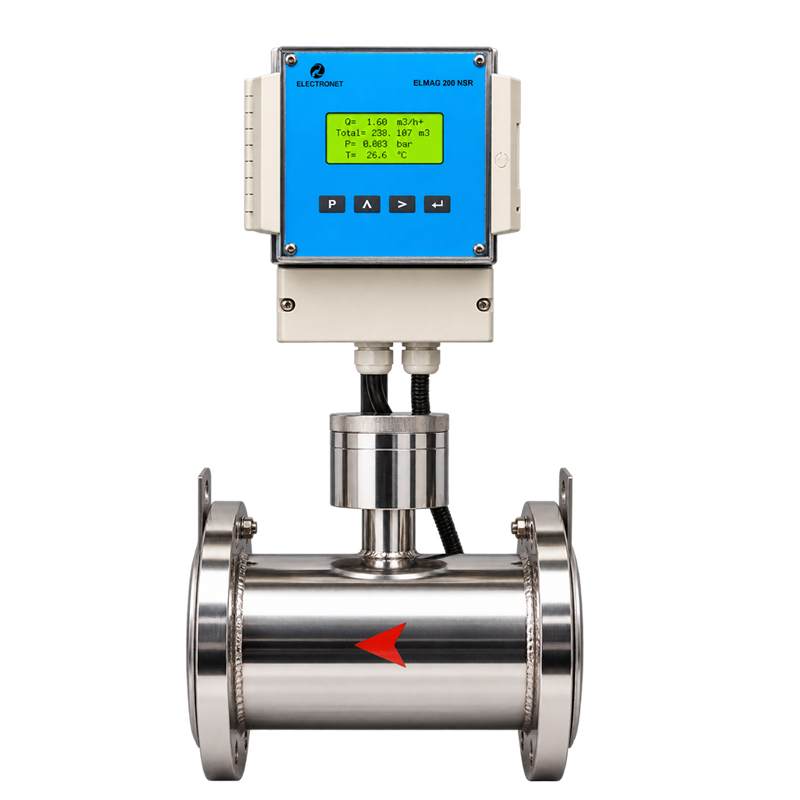

ELMAG 200 NSR (0D)
Configure the transmitter and electronics based on application, environment, and compliance requirements.
| Parameter | Specification |
|---|---|
| Nominal Diameters | 50 NB to 300 NB (2" to 12") |
| Process Connections | Flanges: EN (DIN), ASME, JIS, AWWA |
| Process Temperature | -20 to +90°C (-4 to +194°F) |
| Degree of Protection | IP 67 (Type 4X Enclosure) |
| Max. Measured Error | Standard: ±0.5% of M.V. to ±2% of M.V. Based on Installation Conditions |
| Turndown | 100:1 |
| Electrical Conductivity | ≥5 µS/cm (liquids in general) |
| Materials (Liners) | Polyurethane, Hard Rubber, PTFE |
| Inlet/Outlet Runs | 0 × DN |
| Wetted Materials | Liner Material: Hard Rubber: 0 to +80°C (+32 to +176°F)Polyurethane: -20 to +50°C (-4 to +122°F)PTFE: -20 to +180°C (-4 to +356°F)Electrodes: SS-316L, Hastelloy C22, Tantalum, Platinum |
| Measured Variables | Volume Flow, Velocity, Pressure, Temperature, Conductivity & TDS |
| Max. Process Pressure | PN 40, Class 300, 20K |
| Ambient Temperature Range | Hard Rubber: 0 to +80°C (+32 to +176°F)Polyurethane: -20 to +50°C (-4 to +122°F) |
| Medium Temperature Range | Hard Rubber: 0 to +80°C (+32 to +176°F)Polyurethane: -20 to +50°C (-4 to +122°F)PTFE: -20 to +180°C (-4 to +356°F) |
| Sensor Housing Material | MS / SS-304 / SS-316 |
| Transmitter Housing Material | Aluminium Die Cast / SS-316 |
| Degree of Protection (Versions) | Compact Version: IP66 / IP67 EnclosureSensor Remote Version (Standard): IP66 / IP67 EnclosureSensor Remote Version (Option): IP68 with Protective VarnishTransmitter Remote Version: IP66 / IP67 Enclosure |
| Velocity | 0.3 m/s to 2.5 m/s (up to Max. 10 m/s) |
| Display / Operation | 4-line backlit display with touch control (operation from outside)Configuration via local display |
| Outputs | 3 Outputs:• 0–20 mA / 4–20 mA with Generic HART (Active)• Pulse/Frequency/Switch Output (Passive)• Pulse/Frequency Output (Passive)• Switch Output (Passive) |
| Digital Communication | HART, RS-485 (MODBUS RTU) |
| Power Supply | 100–240 V AC / 24 V DC |
| Metrological Approvals & Certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Material Certificates | 3.1 Material |
| Sensor Features | Flexible connections, corrosion-protected (EN ISO 12944), IP68 |
| Transmitter Features | Display with backlight for safe operation, Durable housing, Integrated data logger |
| Conductivity Measurement Range | 5 to 9999 µS/cm |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications |
|---|---|
| Water & Wastewater | Simultaneous measurement of flow, pressure, temperature, conductivity, and TDS in water treatment plants, distribution networks, and wastewater systems |
| Municipal Water Management | Monitoring water distribution networks, district metering areas (DMA), leakage detection, and water quality parameters |
| Industrial Process | Monitoring flow, process pressure, temperature, conductivity, and TDS in process pipelines for efficient plant operation |
| Pumping Stations | Monitoring flow rate, pipeline pressure, water quality, and pump performance in water transfer and distribution systems |
| Irrigation & Agriculture | Measuring irrigation water flow, pressure, conductivity, and TDS in canals, pipelines, and agricultural water distribution networks |
| Chemical & Petrochemical | Monitoring conductive process liquids, cooling water, utility water, and process parameters in chemical manufacturing |
| Food & Beverage | Monitoring process water, utility water, and production lines requiring simultaneous flow and water quality measurement |
| Power Generation | Monitoring cooling water systems, service water, process water, and auxiliary utility lines |
| Mining & Metals | Monitoring slurry water, utility water, and process water distribution where straight pipe lengths are limited |
| HVAC & Building Utilities | Monitoring chilled water, cooling water, and utility water systems in commercial and industrial facilities |
| Pipeline & Infrastructure | Flow and water quality monitoring in new and existing pipelines where installation space is limited and no straight pipe run is available |
Core capabilities and advantages of the product.
