BTU METER
BTU 200

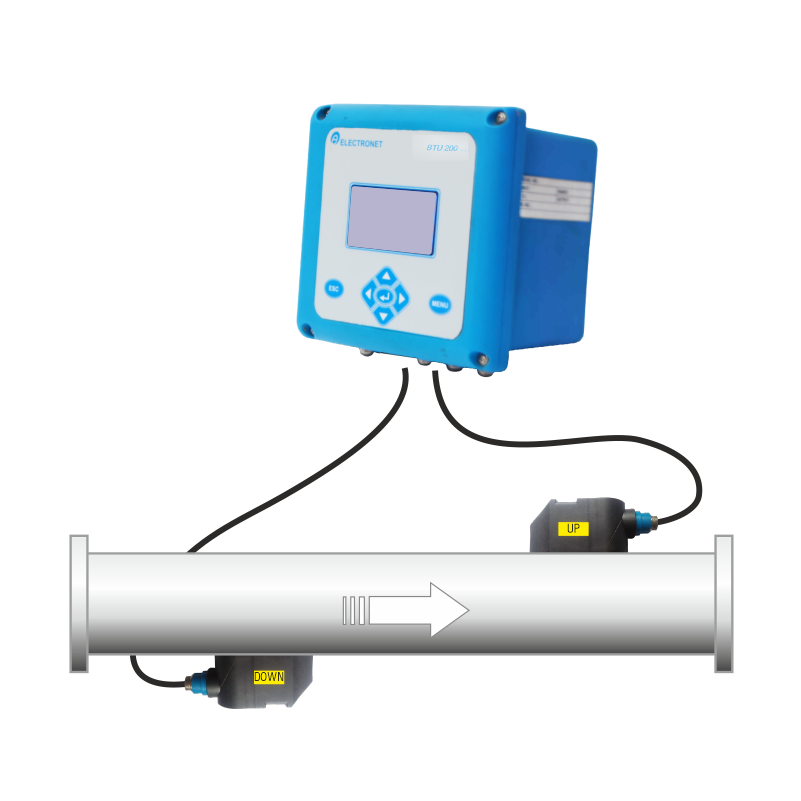

BTU 200 Thermal Energy Meter is a high-accuracy BTU metering system engineered for precise measurement of thermal energy consumption in chilled and hot water systems. It integrates an ultrasonic flow meter (insertion or clamp-on type), dual PT100 temperature sensors, and an advanced BTU calculator with LCD display for reliable energy monitoring. Calibrated at a NABL-accredited facility, BTU 200 ensures dependable performance in industrial, commercial, and HVAC applications. With digital communication, data logging, and easy installation, it is an ideal solution for energy management, cost allocation, and water-based thermal systems.
Configure the transmitter and electronics based on application, environment, and compliance requirements.
| Power Supply | 90 - 270V AC / 24 V DC |
| Power Unit | BTU/hr or KW |
| Energy Unit | BTU or KW/Hr |
| Flow Meter Input | 4 to 20 mA DC |
| Temperature Input | A set of two PT-100 Sensors |
| Display | LCD |
| Accuracy | +/-0.1% Measured Value |
| End Connection | DIN, ANSI 150, BS or Threaded Connection |
| Output (Analog) | 4 to 20 mA DC |
| Energy Function | Heat / Cool |
| Configurable Display in Energy & Power | W, BTU, Cal & J |
| Sampling Period | 1 Sec. |
| Environmental Temperature | Up to 65⁰C |
| Water Temperature | 0 to 180⁰C |
| Enclosure Class | IP 65 |
| Mounting | Panel or Pipe |
| Dimensions | 155 mm (H) x 155 mm (W) x 126 mm (D) |
| Options | |
| Output (Digital) | 2 Nos. Potential Free Relay 1 C/O 1 amp @230 V |
| Communication Interface | R S485 |
| Thermowell | Fabricated / Barstock |
Download the complete product catalogue for detailed specifications, dimensions, certifications, and application guidance.
Electronet instruments are widely deployed across multiple industries and utilities for reliable monitoring and control of critical process parameters.
| Industry | Key Applications |
| HVAC & Building Automation | Measuring thermal energy consumption in heating, cooling, and chilled water systems |
| Power Generation | Monitoring heat energy in steam, hot water, and thermal process circuits |
| Water & Wastewater | Energy measurement in heating/cooling circuits of treatment plants |
| Chemical & Petrochemical | Monitoring thermal energy in process heating/cooling systems |
| Food & Beverage | Measuring heat energy in pasteurization, sterilization, and process heating/cooling systems |
| Pharmaceuticals & Biotechnology | Thermal energy measurement in process heating/cooling and cleanroom systems |
| Pulp & Paper Industry | Monitoring heat energy in pulping, drying, and chemical processing systems |
| Marine & Shipbuilding | Thermal energy monitoring in HVAC, boilers, and engine cooling circuits |
| Metals & Mining | Heat energy measurement in process heating, smelting, and cooling systems |
| Renewable Energy | Monitoring thermal energy in solar heating, geothermal, and district heating systems |
Core capabilities and advantages of the product.
